Wellbore #00 Wellbore Classification: OW Status: AB - 8/5/2025 Measured TD: 8336 ft. Vertical TD: 8226 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 8/5/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/30/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 2N 68W | Footage: 1980 FSL 1980 FWL | | Bottom Hole Location: | Sec:27 Twp: 2N 68W | Footage: 1980 FSL 1980 FWL | | Proposed Depth/Form: | 8542 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: DKTA , Formation: DAKOTA , Order: 499 , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E/2SW |
| | |

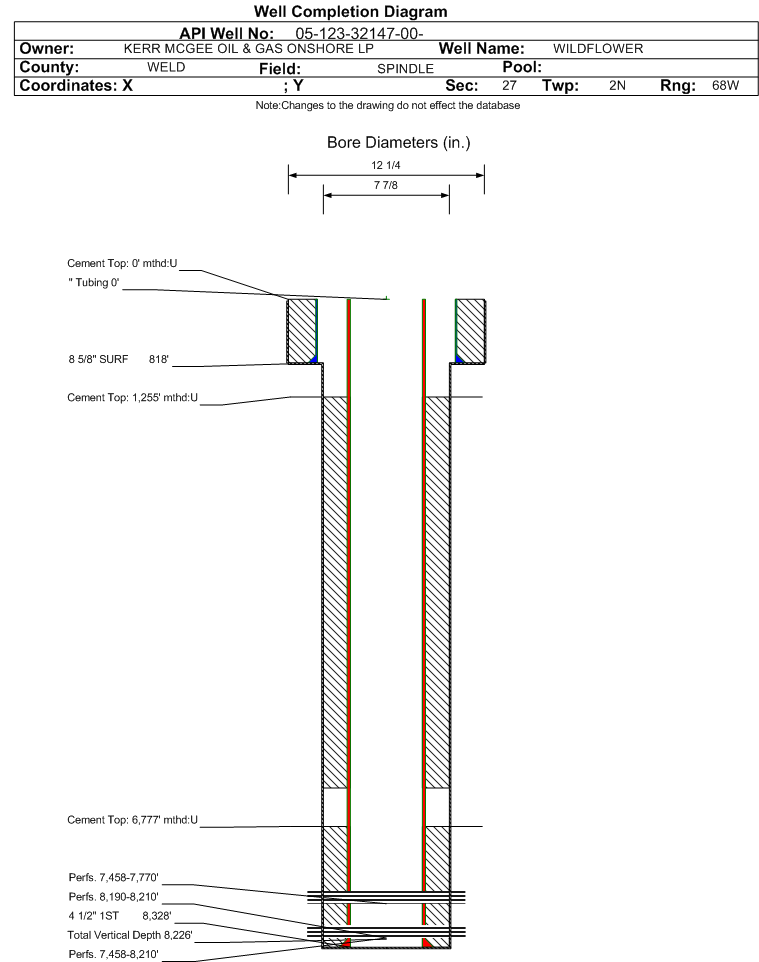

| Wellbore Completed | | Completion Date: | 3/29/2011 | | Spud Date: | 3/25/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 8336 ft. | Measured PB depth: | 8300 ft. | | True Vertical TD: | 8226 ft. | True Vertical PB depth: | 8190 ft. | | Top PZ Location: | Sec:27 Twp: 2N 68W | Footage: 1984 FSL 1988 FWL | | Bottom Hole Location: | Sec:27 Twp: 2N 68W | Footage: 1989 FSL 1990 FWL | | Log Types: | PRELIMINARY FORM 5 | | Log Types: | SD-DSN-AC-TR; CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 818 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 818 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8328 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 231, Top: 6730 ft., Bottom: 8328 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6281 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 601, Top: 1255 ft., Bottom: 6281 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 6280 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 601, Top: 1150 ft., Bottom: 6300 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4086 ft. | | | | | SUSSEX | 4472 ft. | 4819 ft. | | | | SHANNON | 5087 ft. | 5104 ft. | | | | NIOBRARA | 7449 ft. | | | | | FORT HAYS | 7726 ft. | | | | | CODELL | 7748 ft. | | | | | J SAND | 8173 ft. | | | |
Formation JSND Formation Classification: OW Status: AB - 8/5/2025 Interval Top: 8190 ft. Interval Bottom: 8210 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 6/15/2011 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/29/2011 | | Treatment Summary: | J S PERF 8190-8210 HOLES 40 SIZE 0.42
Frac J-Sand down 4-1/2" Csg w/ 149,974 gal Slickwater w/ 116,240# 40/70, 4,000# SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 8190 ft. | # Of Holes: | 40 | | Interval Bottom: | 8210 ft. | Hole Size: | 0.42 in. |
|
Formation JNBCD Formation Classification: Status: CM - 6/16/2011 Interval Top: 7458 ft. Interval Bottom: 8210 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 6/15/2011 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/29/2011 | | Treatment Summary: | NB PERF 7458-7620 HOLES 60 SIZE 0.42
CD PERF 7750-7770 HOLES 60 SIZE 0.42
J S PERF 8190-8210 HOLES 40 SIZE 0.42 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/16/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 40 | | BTU_GAS | 1246 | | CALC_BBLS_OIL | 40 | | CALC_GOR | 2500 | | CALC_MCF_GAS | 100 | | CASING_PRESS | 1484 | | GRAVITY_OIL | 50 | | MCF_GAS | 100 |
| | Perforation Data: | | Interval Top: | 7458 ft. | # Of Holes: | 160 | | Interval Bottom: | 8210 ft. | Hole Size: | 0.42 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 8/5/2025 Interval Top: 7458 ft. Interval Bottom: 7770 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 6/15/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/5/2011 | | Treatment Summary: | NB PERF 7458-7620 HOLES 60 SIZE 0.42 CD PERF 7750-7770 HOLES 60 SIZE 0.42
Frac Niobrara A & B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 248,474 gal Slickwater w/ 200,540# 40/70, 4,000# SB Excel
Frac Codell down 4-1/2" Csg w/ 203,616 gal Slickwater w/ 150,960# 40/70, 4,000# SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7458 ft. | # Of Holes: | 120 | | Interval Bottom: | 7770 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/05/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
