COGIS

Facility Detail

COGIS - WELL SCOUT CARD

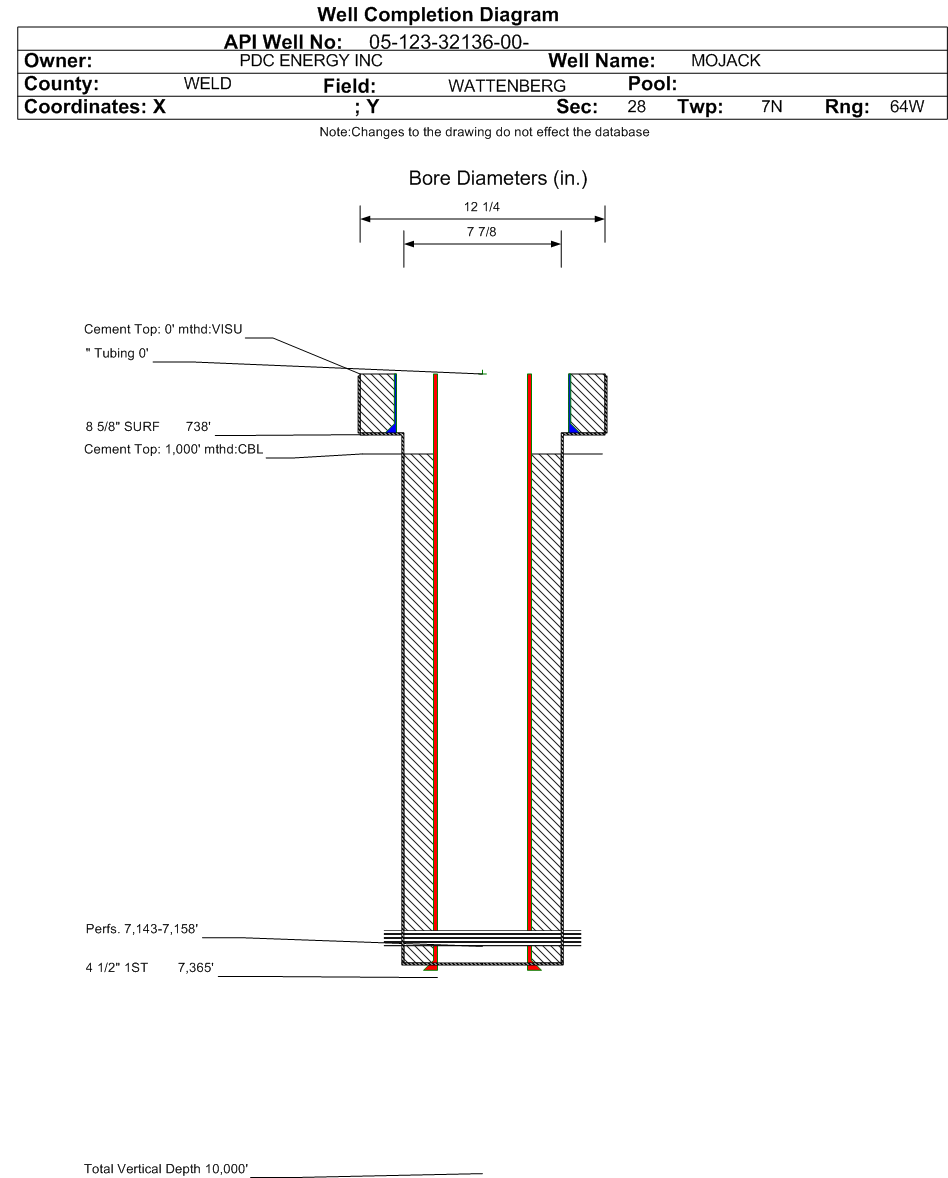

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-32136		Well Classification: OW Status: PA - 11/8/2019
Well Name/No:MOJACK #1-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/8/2019
FacilityID:419087LocationID:302745
County:WELD #123Location:NENE 28 7N64W 6
Field:WATTENBERG - #90750Elevation:4900 ft.
Basin:DENVER (DJ) BASIN
Planned Location:658FNL  657 FELLat/Long: 40.549570 / -104.547600Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.549585 / -104.547619Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/8/2019             Measured TD: 7370 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/8/2019
Wellbore Permit
Permit #: Expiration Date:8/30/2012
Proposed Depth/Form:7343 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: E/2NE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 725 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 330, Top: 0 ft., Bottom: 725 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7343 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 317, Top: , Bottom: 7343 ft.
Wellbore Completed
Completion Date:10/26/2010
Spud Date:10/21/2010Spud Date Is:ACTUAL
Measured TD:7370 ft.Measured PB depth:7343 ft.
True Vertical TD:True Vertical PB depth:
Log Types:TRIPLE-COMBO, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 738 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 520, Top: 0 ft., Bottom: 738 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7365 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 710, Top: 1000 ft., Bottom: 7365 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3775 ft.3890 ft.
SUSSEX4185 ft.4285 ft.
SHANNON4465 ft.4510 ft.
NIOBRARA6855 ft.7100 ft.
FORT HAYS7100 ft.7143 ft.
CODELL7143 ft.7155 ft.

Formation CODL                     Formation Classification:                       Status:  AB - 11/8/2019                 Interval Top: 7143 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation CODELL
1st Production Date:12/5/2010Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/2010
Treatment Summary:FRACTURE STIMULATED CODELL DOWN CASING WITH 266,600 GLA SLICKWATER AND 150,900# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 51
BTU_GAS 1281
CALC_GOR 863
CASING_PRESS 250
GRAVITY_OIL 45
MCF_GAS 44
Perforation Data:
Interval Top:7143 ft.# Of Holes:60
Interval Bottom:7158 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/08/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
