Wellbore #00 Wellbore Classification: OW Status: PA - 4/5/2022 Measured TD: 7553 ft. Vertical TD: 7488 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/5/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/26/2012 | | Proposed Top PZ Location: | Sec:2 Twp: 6N 66W | Footage: 1973 FSL 2000 FWL | | Bottom Hole Location: | Sec:2 Twp: 6N 66W | Footage: 1973 FSL 2000 FWL | | Proposed Depth/Form: | 7566 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N2SW4 | | Formation And Spacing: | Code: SX-SN , Formation: SUSSEX-SHANNON , Order: n/a , Unit Acreage: 80, Drill Unit: E/2SW/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 650 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 390, Top: 0 ft., Bottom: 650 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7566 ft., Weight: 10.5 , Citings Type: PLANNED | | Cement: | Sacks: 204, Top: 6166 ft., Bottom: 7566 ft. |
| | |

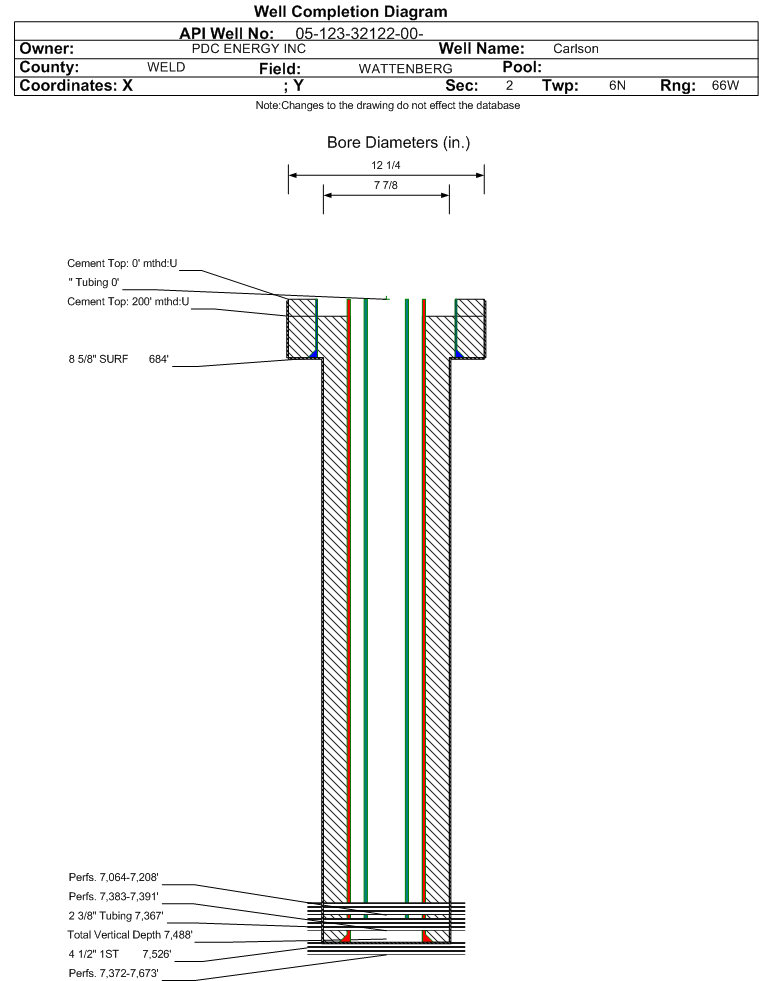

| Wellbore Completed | | Completion Date: | 12/1/2010 | | Spud Date: | 11/27/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7553 ft. | Measured PB depth: | 7469 ft. | | True Vertical TD: | 7488 ft. | True Vertical PB depth: | 7403 ft. | | Top PZ Location: | Sec:2 Twp: 6N 66W | Footage: 1969 FSL 2026 FWL | | Bottom Hole Location: | Sec:2 Twp: 6N 66W | Footage: 1976 FSL 2025 FWL | | Log Types: | CBL, CNL/CDL/DIL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 684 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 684 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7562 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1070, Top: 200 ft., Bottom: 7562 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 3822 ft. | | | | | SHANNON | 5042 ft. | | | | | NIOBRARA | 7058 ft. | | | | | FORT HAYS | 7360 ft. | | | | | CODELL | 7381 ft. | | | |
Formation CODL Formation Classification: Status: CM - 6/7/2011 Interval Top: 7383 ft. Interval Bottom: 7391 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/5/2011 | | Treatment Summary: | Frac'd Codell with 476 bbls of slickwater pad, 143 bbls of pHaser 22# pad, 1961 bbls of pHaser 22# fluid system, 218920 lbs of 30/50, and 8000 lbs 20/40 SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7383 ft. | # Of Holes: | 24 | | Interval Bottom: | 7391 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: OW Status: AB - 4/5/2022 Interval Top: 7064 ft. Interval Bottom: 7391 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 1/24/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7367 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/1/2011 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 4 | | BBLS_OIL | 24 | | BTU_GAS | 1285 | | CALC_BBLS_H2O | 4 | | CALC_BBLS_OIL | 24 | | CALC_GOR | 1167 | | CALC_MCF_GAS | 28 | | CASING_PRESS | 823 | | GRAVITY_OIL | 46 | | MCF_GAS | 28 | | TUBING_PRESS | 442 |
| | Perforation Data: | | Interval Top: | 7064 ft. | # Of Holes: | 52 | | Interval Bottom: | 7391 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: Status: CM - 6/7/2011 Interval Top: 7064 ft. Interval Bottom: 7208 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/8/2011 | | Treatment Summary: | Perf'd Niobrara "A" 7064-66' (4 holes), Niobrara "B" 7200-08' (24 holes),
Frac'd Niobrara with 1547 bbls Slickwater pad, 170 bbls of pHaser 20# pad, 2203 bbls of pHaser 20# fluid system, 241720 lbs of 30'50,12000 lbs 20/40 SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7064 ft. | # Of Holes: | 28 | | Interval Bottom: | 7208 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/05/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
