COGIS - WELL SCOUT CARD

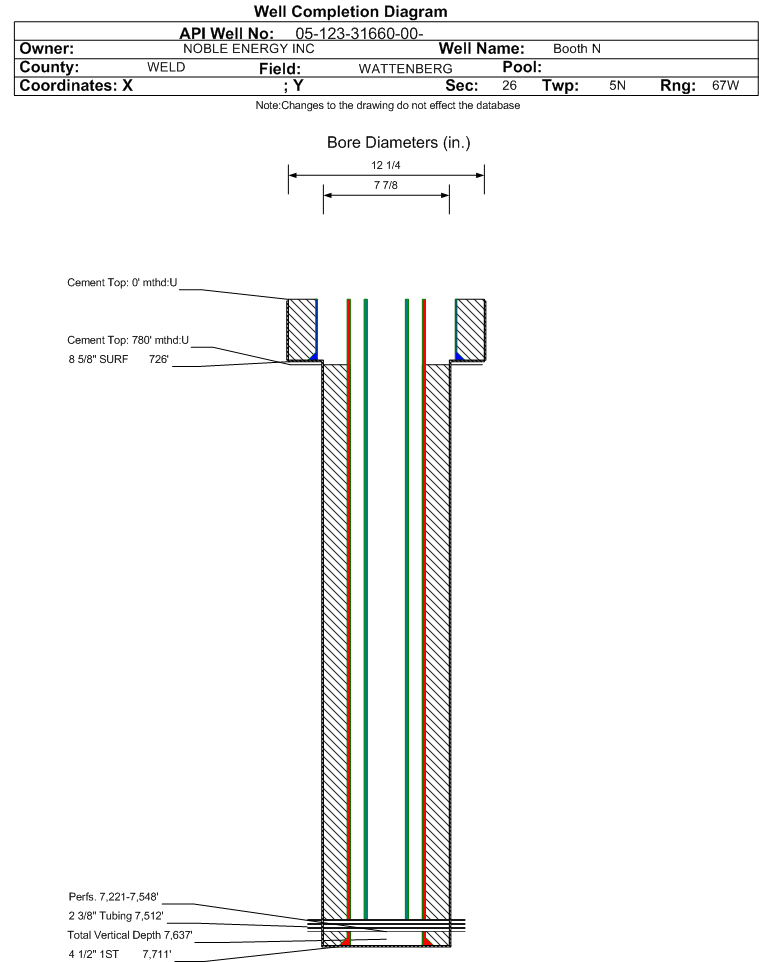

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-31660		Well Classification: OW Status: PR - 7/1/2025
Well Name/No:Booth N #25-32D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2025
FacilityID:417401LocationID:417457
County:WELD #123Location:NESE 26 5N67W 6
Field:WATTENBERG - #90750Elevation:4949 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2161FSL  206 FELLat/Long: 40.369160 / -104.851710Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.369165 / -104.851714Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 7/1/2025             Measured TD: 7722 ft.    Vertical TD: 7637 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 7/1/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:5/24/2012
Proposed Top PZ Location:Sec:25 Twp: 5N 67W Footage: 2500 FNL  100 FWL
Bottom Hole Location:Sec:25 Twp: 5N 67W Footage: 2500 FNL  100 FWL
Proposed Depth/Form:7693 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 780 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 248, Top: 0 ft., Bottom: 780 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7693 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 723, Top: , Bottom: 7693 ft.
Wellbore Completed
Completion Date:2/1/2011
Spud Date:1/28/2011Spud Date Is:ACTUAL
Measured TD:7722 ft.Measured PB depth:7666 ft.
True Vertical TD:7637 ft.True Vertical PB depth:7582 ft.
Top PZ Location:Sec:25 Twp: 5N 67WFootage: 2445 FNL  112 FWL
Bottom Hole Location:Sec:25 Twp: 5N 67WFootage: 2459 FNL  112 FWL
Log Types:CBL, Triple Combo
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 726 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 286, Top: 0 ft., Bottom: 726 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7711 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 2550 ft., Bottom: 7711 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7711 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 710 ft., Bottom: 2100 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 1948 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 727 ft., Bottom: 2100 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
TEEPEE BUTTES6229 ft.
SHARON SPRINGS7031 ft.
NIOBRARA7198 ft.
FORT HAYS7504 ft.
CODELL7528 ft.
GREENHORN7600 ft.

Formation NB-CD                   Formation Classification:  OW                   Status:  PR - 7/1/2025                  Interval Top: 7221 ft.    Interval Bottom: 7548 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/11/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2011
Treatment Summary:Codell & Niobrara are commingled Codell 7528'-7548', 80 holes, .41" Frac'd Codell w/121678 gals Vistar and Acid with 244820 lbs Ottawa sand Niobrara 7221'-7342', 48 holes, .73" Frac'd Niobrara w/147533 gals Vistar with 248889 lbs Ottawa sand
Tubing Size:2.375 in.Tubing Setting Depth:7512 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/15/2011Test Method:Flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 40
BTU_GAS 1279
CALC_BBLS_H2O 25
CALC_BBLS_OIL 40
CALC_GOR 8375
CALC_MCF_GAS 335
CASING_PRESS 942
GRAVITY_OIL 53
MCF_GAS 335
TUBING_PRESS 446
Perforation Data:
Interval Top:7221 ft.# Of Holes:124
Interval Bottom:7548 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)277
Total Gas Produced (MCF)3759
GOR13570
GOR DeterminationBOE
Average BOE per Day2.499
Average MCFE per Day14.494

 Federal Financial Assurance  i

 Tribal Well  i No
