Wellbore #00 Wellbore Classification: OW Status: PA - 7/5/2019 Measured TD: 8510 ft. Vertical TD: 8378 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/5/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 5/11/2012 | | Proposed Top PZ Location: | Sec:27 Twp: 1N 67W | Footage: 1980 FSL 660 FEL | | Bottom Hole Location: | Sec:27 Twp: 1N 67W | Footage: 1980 FSL 660 FEL | | Proposed Depth/Form: | 8453 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: S/2 | | Formation And Spacing: | Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit: E/2SE4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1150 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 805, Top: , Bottom: 1150 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8453 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 8453 ft. |
| | |

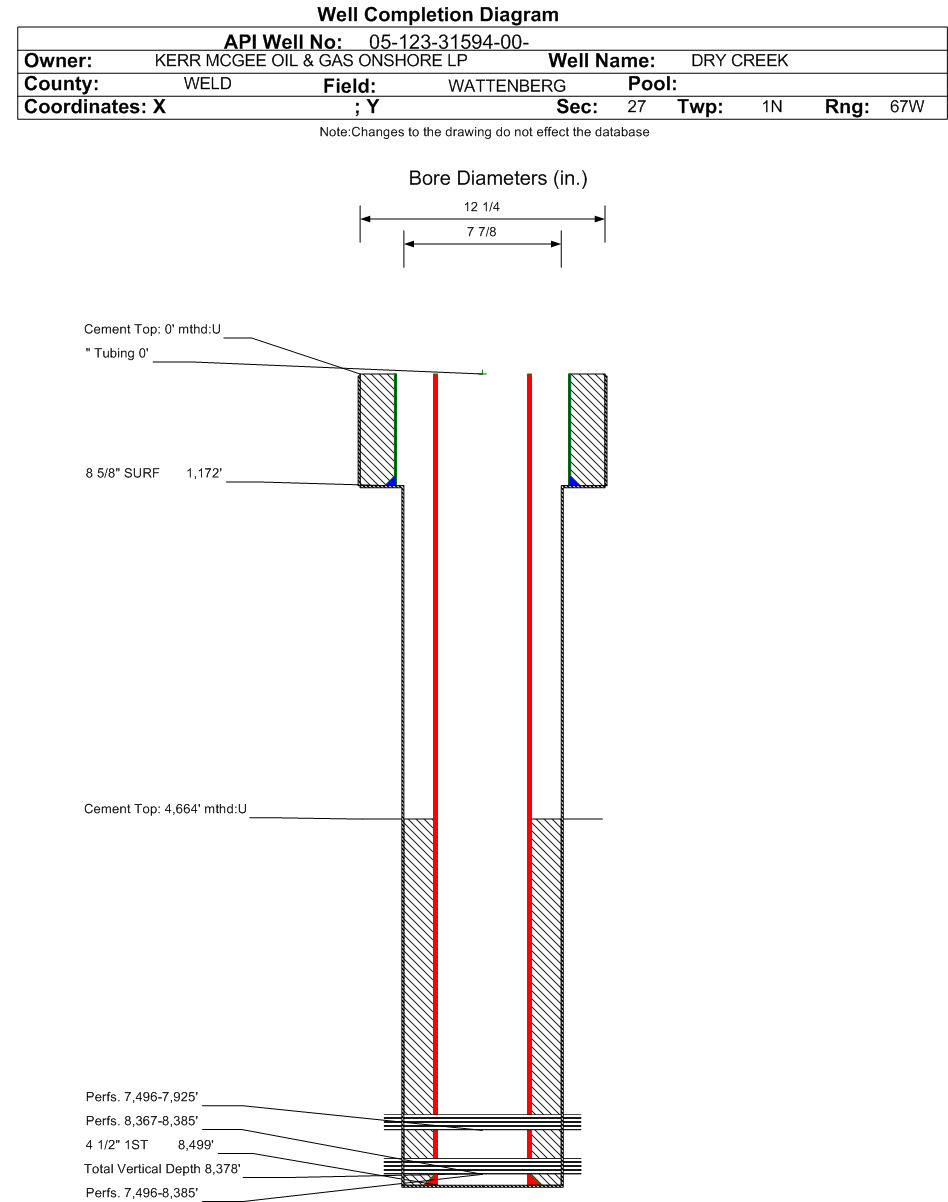

| Wellbore Completed | | Completion Date: | 12/20/2010 | | Spud Date: | 12/16/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8510 ft. | Measured PB depth: | 8466 ft. | | True Vertical TD: | 8378 ft. | True Vertical PB depth: | 8334 ft. | | Top PZ Location: | Sec:27 Twp: 1N 67W | Footage: 1977 FSL 676 FEL | | Bottom Hole Location: | Sec:27 Twp: 1N 67W | Footage: 1973 FSL 666 FEL | | Log Types: | PRELIMINARY FORM 5 | | Log Types: | P/E AILC-CNDL-ML-TC-CV/C; CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1172 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 0 ft., Bottom: 1172 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8499 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 985, Top: 4664 ft., Bottom: 8499 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4854 ft. | | | | | NIOBRARA | 7483 ft. | | | | | FORT HAYS | 7885 ft. | | | | | CODELL | 7907 ft. | | | | | J SAND | 8344 ft. | | | |
Formation JSND Formation Classification: OW Status: AB - 7/5/2019 Interval Top: 8367 ft. Interval Bottom: 8385 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 2/28/2011 | Choke Size: | | | Formation Name: | J SAND | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2011 | | Treatment Summary: | Frac J-Sand down 4-1/2" Csg w/ 140,562 gal Slickwater w/ 115,760# 40/70, 4,000# SB Excel. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation JSND. |
| | Perforation Data: | | Interval Top: | 8367 ft. | # Of Holes: | 54 | | Interval Bottom: | 8385 ft. | Hole Size: | 0.4 in. |
|
Formation JNBCD Formation Classification: Status: CM - 3/11/2011 Interval Top: 7496 ft. Interval Bottom: 8385 ft.| Completed Information for Formation J-NIOBRARA-CODELL | | 1st Production Date: | 2/28/2011 | Choke Size: | | | Formation Name: | J-NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/24/2011 | | Treatment Summary: | NIOBRARA PERF 7496-7770 HOLES 62 SIZE 0.42
CODELL PERF 7909-7925 HOLES 64 SIZE 0.40
J SAND PERF 8367-8385 HOLES 54 SIZE 0.40 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/11/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 25 | | BTU_GAS | 1224 | | CALC_BBLS_OIL | 25 | | CALC_GOR | 1880 | | CALC_MCF_GAS | 47 | | CASING_PRESS | 295 | | GRAVITY_OIL | 54 | | MCF_GAS | 47 |
| | Perforation Data: | | Interval Top: | 7496 ft. | # Of Holes: | 180 | | Interval Bottom: | 8385 ft. | Hole Size: | 0.4 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/5/2019 Interval Top: 7496 ft. Interval Bottom: 7925 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 2/28/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/27/2011 | | Treatment Summary: | NB PERF 7496-7770 HOLES 62 SIZE 0.42 CD PERF 7909-7925 HOLES 64 SIZE 0.40
Frac Niobrara A & B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 218,444 gal Slickwater w/ 167,480# 30/50
Frac Codell down 4-1/2" Csg w/ 199,500 gal Slickwater w/ 150,020# 30/50, 4,000# SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NB-CD. |
| | Perforation Data: | | Interval Top: | 7496 ft. | # Of Holes: | 126 | | Interval Bottom: | 7925 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/05/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
