Wellbore #00 Wellbore Classification: OW Status: PA - 11/21/2019 Measured TD: 9181 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 11/21/2019 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/3/2012 | | Proposed Depth/Form: | 9150 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W/2NW4 | | Formation And Spacing: | Code: LYNS , Formation: LYONS , Order: , Unit Acreage: 80, Drill Unit: W/2NW4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 80, Drill Unit: W/2NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 165, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 9150 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 622, Top: 4700 ft., Bottom: 9150 ft. |
| | |

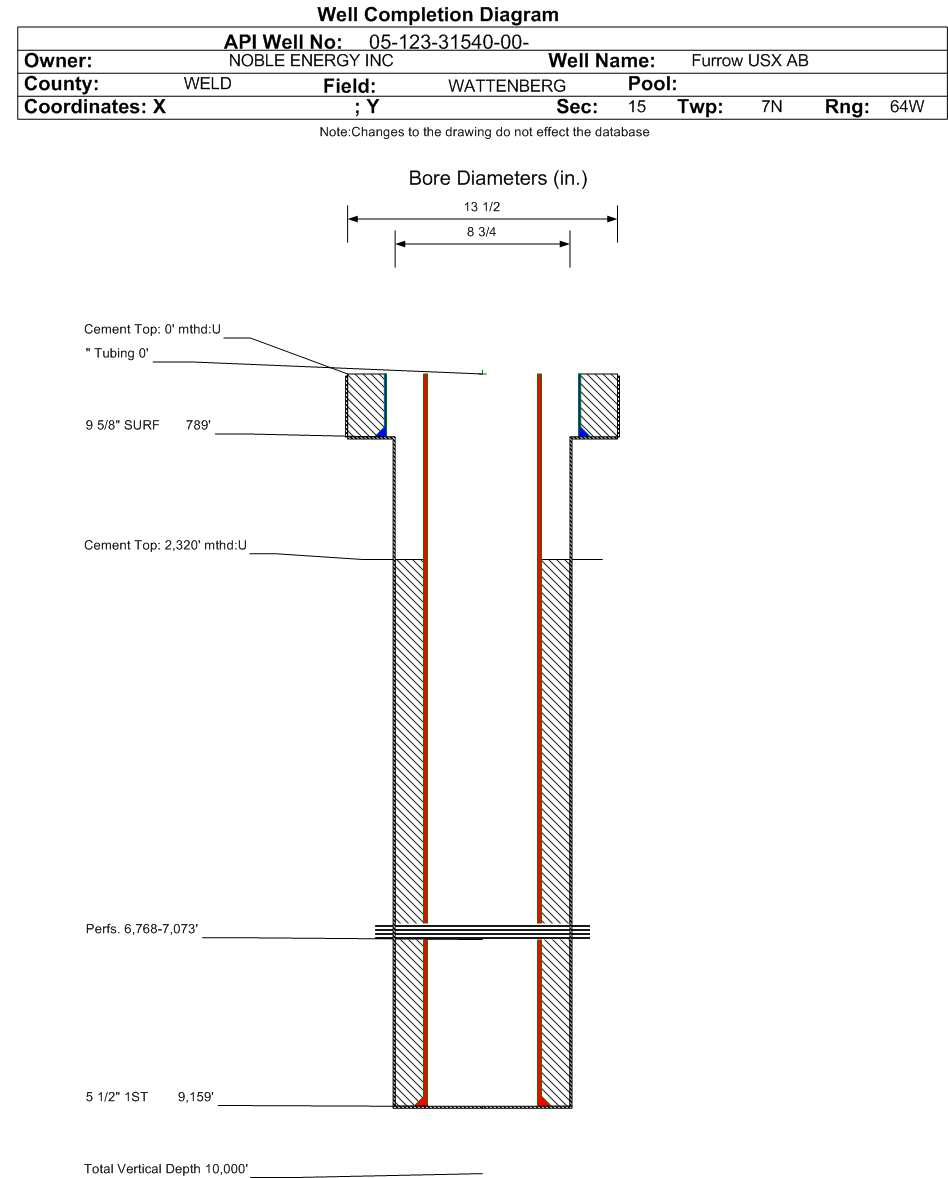

| Wellbore Completed | | Completion Date: | 7/19/2010 | | Spud Date: | 7/7/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 9181 ft. | Measured PB depth: | 9112 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL/GRL/CCL/VDL, DSL/DSNL/ACL/TRL, | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 789 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 321, Top: 0 ft., Bottom: 789 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 9159 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 940, Top: 2320 ft., Bottom: 9159 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6752 ft. | | | | | FORT HAYS | 7035 ft. | | | | | CODELL | 7058 ft. | | | | | GREENHORN | 7135 ft. | | | | | D SAND | 7465 ft. | | | | | MOWRY | 7521 ft. | | | | | J SAND | 7533 ft. | | | | | DAKOTA | 7781 ft. | | | | | MORRISON | 7883 ft. | | | | | LYONS | 8852 ft. | | | |
Formation NB-CD Formation Classification: Status: AB - 11/21/2019 Interval Top: 6768 ft. Interval Bottom: 7073 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/13/2010 | Choke Size: | 0.000 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/12/2010 | | Treatment Summary: | Frac'd Niobrara-Codell w/ 382926 gals of pHaserFrac and Slick Water with 618,840#'s of Ottawa sand.
Commingle the Niobrara and Codell. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/5/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 9 | | BBLS_OIL | 21 | | BTU_GAS | 1241 | | CALC_BBLS_H2O | 9 | | CALC_BBLS_OIL | 21 | | CALC_GOR | 1142 | | CALC_MCF_GAS | 24 | | CASING_PRESS | 200 | | GRAVITY_OIL | 41 | | MCF_GAS | 24 | | TUBING_PRESS | 200 |
| | Perforation Data: | | Interval Top: | 6768 ft. | # Of Holes: | 128 | | Interval Bottom: | 7073 ft. | Hole Size: | 0 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/21/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
