COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-31355		Well Classification: OW Status: PA - 11/11/2019
Well Name/No:KERR-MCGEE #35-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/11/2019
FacilityID:416380LocationID:302913
County:WELD #123Location:NWSW 3 1N68W 6
Field:WATTENBERG - #90750Elevation:5042 ft.
Planned Location:1690FSL  1130 FWLLat/Long: 40.077666 / -104.994901Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.077670 / -104.994916Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/11/2019             Measured TD: 8645 ft.    Vertical TD: 8361 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/11/2019
Wellbore PermitDIRECTIONAL
Permit #:Expiration Date:3/24/2012
Proposed Top PZ Location:Sec:3 Twp: 1N 68W Footage: 78 FSL  1395 FWL
Bottom Hole Location:Sec:3 Twp: 1N 68W Footage: 54 FSL  1423 FWL
Proposed Depth/Form:8640 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: 3:S/2SW/4 10:N/2NW/4
Wellbore Completed
Completion Date:7/27/2010
Spud Date:7/22/2010Spud Date Is:ACTUAL
Measured TD:8645 ft.Measured PB depth:8596 ft.
True Vertical TD:8361 ft.True Vertical PB depth:8312 ft.
Top PZ Location:Sec:3 Twp: 1N 68WFootage: 78 FSL  1395 FWL
Bottom Hole Location:Sec:3 Twp: 1N 68WFootage: 54 FSL  1423 FWL
Log Types:CD-CN-ML, DI-GL-GR, CBL

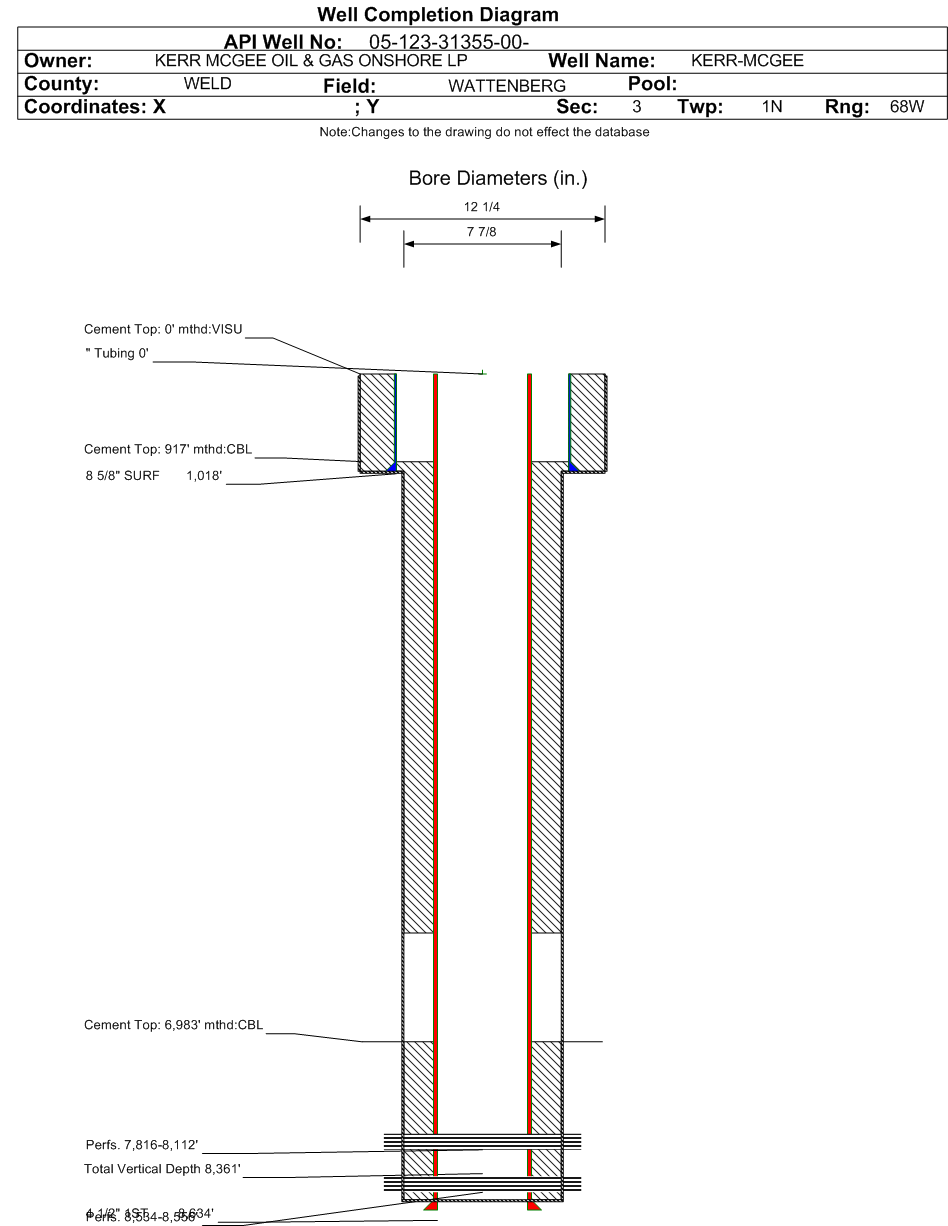

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1018 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 0 ft., Bottom: 1018 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8634 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6983 ft., Bottom: 8634 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5839 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 722, Top: 917 ft., Bottom: 5846 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4823 ft.
NIOBRARA7818 ft.
FORT HAYS8062 ft.
CODELL8085 ft.
J SAND8523 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/11/2019                Interval Top: 8534 ft.    Interval Bottom: 8556 ft.

 Completed Information for Formation J SAND
1st Production Date:12/1/2010Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/24/2010
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 158,298 gal Slickwater w/ 159,000# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/14/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
CALC_BBLS_OIL 1
CALC_GOR 2000
CALC_MCF_GAS 2
CASING_PRESS 2575
GRAVITY_OIL 51
MCF_GAS 2
Perforation Data:
Interval Top:8534 ft.# Of Holes:66
Interval Bottom:8556 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/11/2019                Interval Top: 7816 ft.    Interval Bottom: 8112 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/1/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/21/2010
Treatment Summary:NB Perf 7816-7950 Holes 60 Size 0.42 CD Perf 8086-8112 Holes 52 Size 0.42 Frac Niobrara A & B down 4-1/2" Csg w/ 252 gal 15% HCl & 254,588 gal Slickwater w/ 200,120# 40/70, 4,000# SB Excel. Frac Codell down 4-1/2" Csg w/ 205,380 gal Slickwater w/ 150,780# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/14/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 103
CALC_BBLS_OIL 103
CALC_GOR 1806
CALC_MCF_GAS 186
CASING_PRESS 2575
GRAVITY_OIL 51
MCF_GAS 186
Perforation Data:
Interval Top:7816 ft.# Of Holes:112
Interval Bottom:8112 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/11/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
