Facility Detail

COGIS - WELL SCOUT CARD

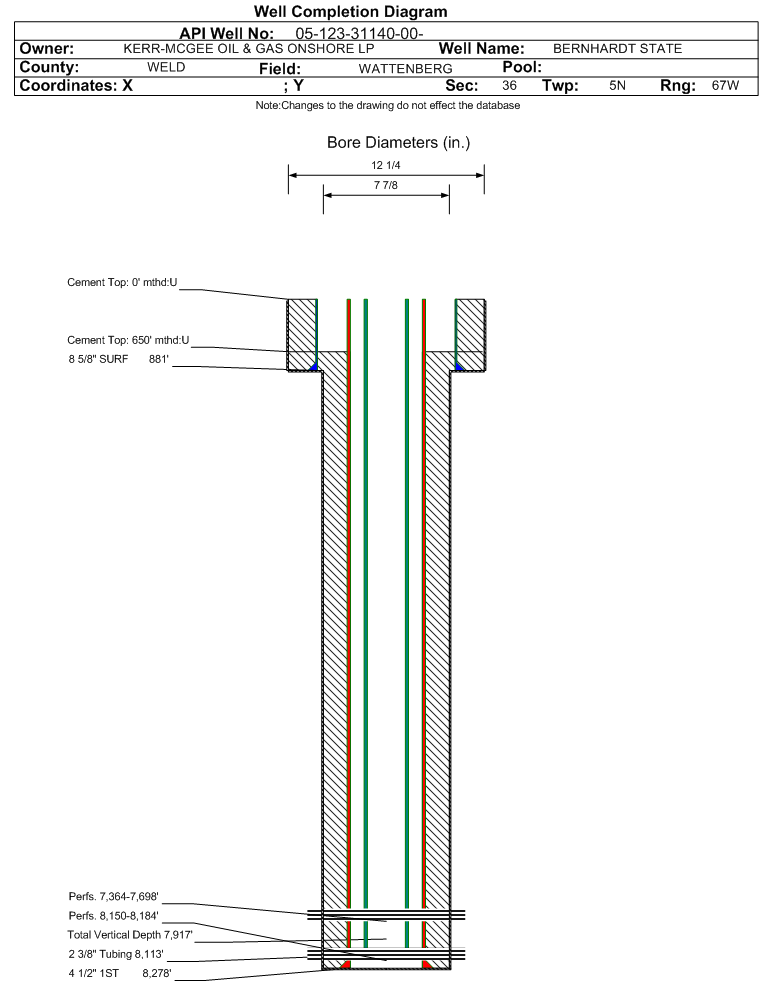

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-31140		Well Classification: GW Status: PA - 5/23/2025
Well Name/No:BERNHARDT STATE #24-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:81/6923-S
Facility Status:PAStatus Date5/23/2025
FacilityID:415638LocationID:336601
County:WELD #123Location:NESW 36 5N67W 6
Field:WATTENBERG - #90750Elevation:4834 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1966FSL  2074 FWLLat/Long: 40.354210 / -104.843500Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.354214 / -104.843509Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 5/23/2025             Measured TD: 8290 ft.    Vertical TD: 7917 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 5/23/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:2/9/2012
Proposed Top PZ Location:Sec:36 Twp: 5N 67W Footage: 2558 FNL  1400 FEL
Bottom Hole Location:Sec:36 Twp: 5N 67W Footage: 2558 FNL  1400 FEL
Proposed Depth/Form:8312 ft.
Surface Mineral Owner Same:No
Mineral Owner:STATESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: S/2NE4, N/2SE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 850 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 595, Top: , Bottom: 850 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8312 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 8312 ft.
Wellbore Completed
Completion Date:6/30/2010
Spud Date:6/26/2010Spud Date Is:ACTUAL
Measured TD:8290 ft.Measured PB depth:8241 ft.
True Vertical TD:7917 ft.True Vertical PB depth:7868 ft.
Top PZ Location:Sec:36 Twp: 5N 67WFootage: 2555 FNL  1412 FEL
Bottom Hole Location:Sec:36 Twp: 5N 67WFootage: 2562 FNL  1414 FEL
Log Types:PRELIMINARY FORM 5 NO O/H LOGS RUN- BRIDGED OUT
Log Types:GR-CCL-CB-VDL No openhole logs run
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 881 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 610, Top: 0 ft., Bottom: 881 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8278 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1080, Top: 609 ft., Bottom: 8278 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3888 ft.
SUSSEX4503 ft.
SHANNON5039 ft.
NIOBRARA7346 ft.
FORT HAYS7667 ft.
CODELL7690 ft.
J SAND8137 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 5/23/2025                 Interval Top: 8150 ft.    Interval Bottom: 8184 ft.

 Completed Information for Formation J SAND
1st Production Date:9/30/2010Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/26/2010
Treatment Summary:Frac JSND w/ 149,726 gal SW & 115,740# 40/70 sand & 4,000# SB Excel.
Tubing Size:2.375 in.Tubing Setting Depth:8113 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 19
BTU_GAS 1289
CALC_BBLS_OIL 19
CALC_GOR 3316
CALC_MCF_GAS 63
CASING_PRESS 1840
GRAVITY_OIL 56
MCF_GAS 63
TUBING_PRESS 1308
Perforation Data:
Interval Top:8150 ft.# Of Holes:66
Interval Bottom:8184 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 5/23/2025                 Interval Top: 7364 ft.    Interval Bottom: 7698 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/30/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/2/2010
Treatment Summary:NBRR Perf 7364-7576 Holes 78 Size 0.42 CODL Perf 7676-7698 Holes 66 Size 0.38 Frac NBRR w/ 250 gal 15% HCl & 251,238 gal SW & 200,400# 40/70 sand & 4,000# SB Excel. Frac CODL w/ 204,868 gal SW & 150,320# 40/70 sand & 4,000# SB Excel.
Tubing Size:2.375 in.Tubing Setting Depth:8113 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 20
BTU_GAS 1289
CALC_BBLS_OIL 20
CALC_GOR 3150
CALC_MCF_GAS 63
CASING_PRESS 1840
GRAVITY_OIL 56
MCF_GAS 63
TUBING_PRESS 1308
Perforation Data:
Interval Top:7364 ft.# Of Holes:144
Interval Bottom:7698 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/23/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)64
Total Gas Produced (MCF)830
GOR12968
GOR DeterminationBOE
Average BOE per Day0.564
Average MCFE per Day3.255

 Federal Financial Assurance  i

 Tribal Well  i No
