Wellbore #00 Wellbore Classification: GW Status: AB - 7/3/2023 Measured TD: 8250 ft. Vertical TD: 8116 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW AB - 7/3/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 12/29/2011 | | Proposed Top PZ Location: | Sec:36 Twp: 1N 68W | Footage: 1322 FNL 2564 FEL | | Bottom Hole Location: | Sec:36 Twp: 1N 68W | Footage: 1318 FNL 2553 FEL | | Proposed Depth/Form: | 8165 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | STATE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1000 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 1000 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8165 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 8165 ft. |
| | |

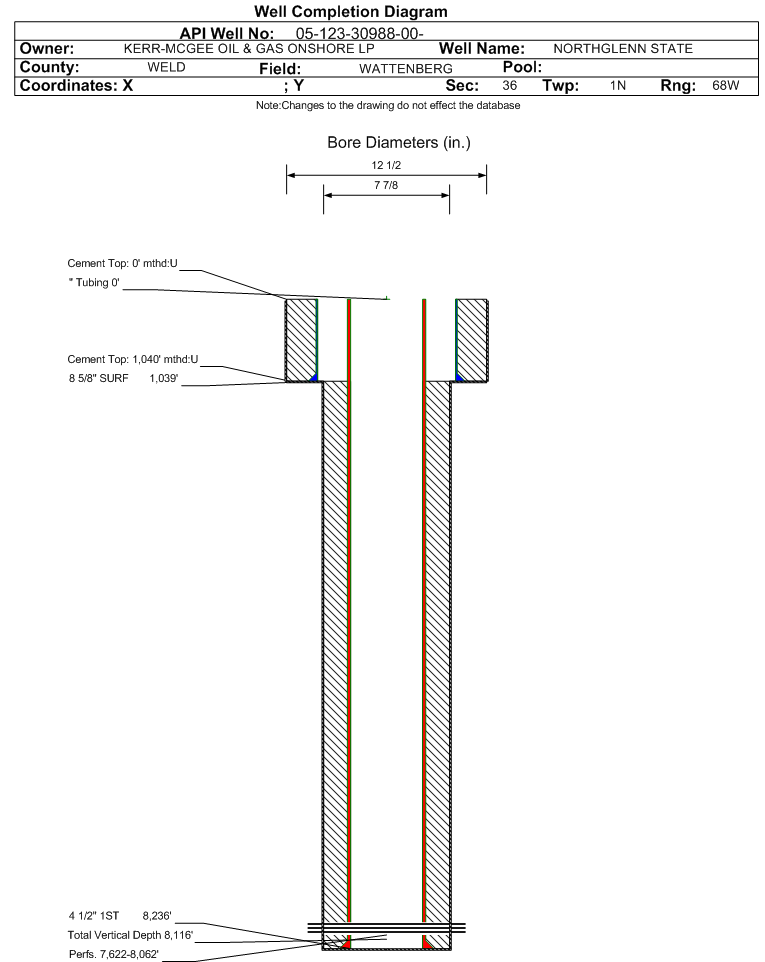

| Wellbore Completed | | Completion Date: | 6/15/2010 | | Spud Date: | 6/11/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8250 ft. | Measured PB depth: | 8198 ft. | | True Vertical TD: | 8116 ft. | True Vertical PB depth: | 8064 ft. | | Top PZ Location: | Sec:36 Twp: 1N 68W | Footage: 1322 FNL 2564 FEL | | Bottom Hole Location: | Sec:36 Twp: 1N 68W | Footage: 1318 FNL 2553 FEL | | Log Types: | | | Log Types: | SBL-GR-CCL, DI-GL-GR, CD-CN-ML | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1039 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 0 ft., Bottom: 1039 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8236 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1080, Top: 1043 ft., Bottom: 8236 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 17 ft. | | | | | SUSSEX | 4949 ft. | | | | | NIOBRARA | 7622 ft. | | | | | FORT HAYS | 8020 ft. | | | | | CODELL | 8042 ft. | | | |
Formation NB-CD Formation Classification: GW Status: AB - 7/3/2023 Interval Top: 7622 ft. Interval Bottom: 8062 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/4/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/16/2010 | | Treatment Summary: | NB PERF 7622-7900 HOLE 70 SIZE 0.38 CD PERF 8042-8062 HOLE 60 SIZE 0.38
FRAC NB W/ 248,220 GAL SW, 250 GAL 15% HC1, 200,280# 40/70 SAND, 4,000# SB SAND
FRAC CD W/ 205,842 GAL SW. 150,140# 40/70 SAND, 4,OOO# SB SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/11/2010 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1204 | | CALC_BBLS_OIL | 9 | | CALC_GOR | 777 | | CALC_MCF_GAS | 7 | | CASING_PRESS | 1400 | | GRAVITY_OIL | 47 |
| | Perforation Data: | | Interval Top: | 7622 ft. | # Of Holes: | 130 | | Interval Bottom: | 8062 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/03/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
