Wellbore #00 Wellbore Classification: OW Status: TA - 5/1/2025 Measured TD: 7561 ft. Vertical TD: 7475 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 5/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 10/28/2011 | | Proposed Top PZ Location: | Sec:30 Twp: 3N 66W | Footage: 1318 FSL 2530 FWL | | Bottom Hole Location: | Sec:30 Twp: 3N 66W | Footage: 1318 FSL 2527 FWL | | Proposed Depth/Form: | 7976 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 600 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 252, Top: 0 ft., Bottom: 600 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7976 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 765, Top: , Bottom: 7976 ft. |
| | |

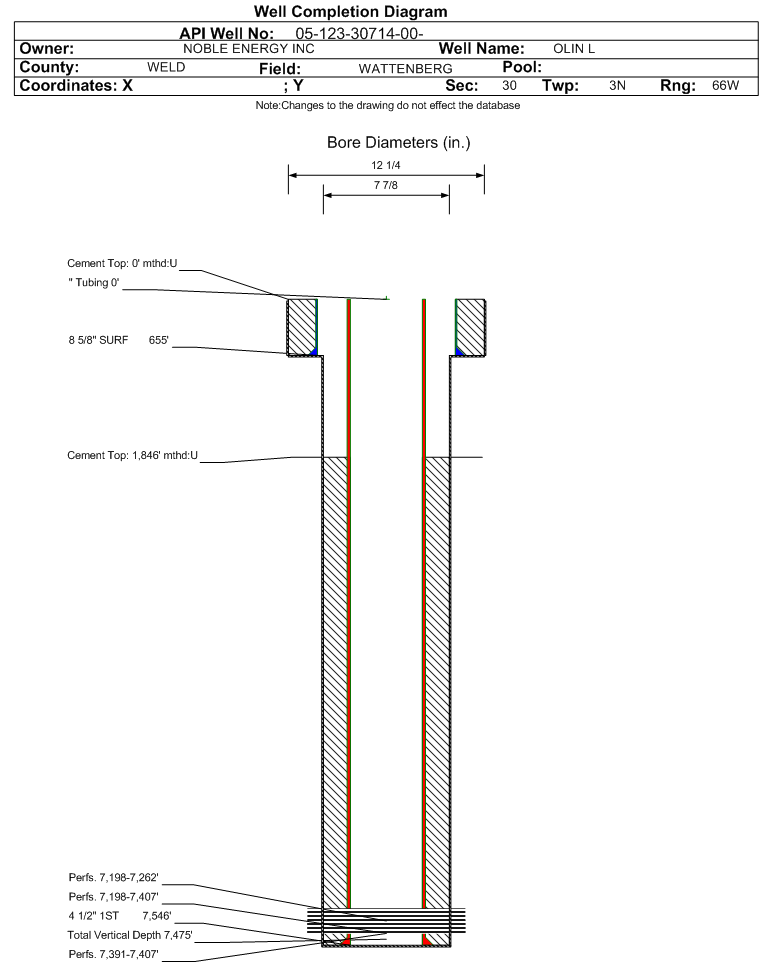

| Wellbore Completed | | Completion Date: | 2/17/2010 | | Spud Date: | 2/14/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7561 ft. | Measured PB depth: | 7501 ft. | | True Vertical TD: | 7475 ft. | True Vertical PB depth: | 7415 ft. | | Top PZ Location: | Sec:30 Twp: 3N 66W | Footage: 1318 FSL 2530 FWL | | Bottom Hole Location: | Sec:30 Twp: 3N 66W | Footage: 1318 FSL 2527 FWL | | Log Types: | CBL/GR/CCL, CDL/CNL/ML, DIL/GR | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 655 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 339, Top: 0 ft., Bottom: 655 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7547 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 650, Top: 1846 ft., Bottom: 7547 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5500 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 130, Top: 5406 ft., Bottom: 5500 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 130, Top: 970 ft., Bottom: 1532 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 3028 ft. | | | | | PARKMAN | 3836 ft. | | | | | SUSSEX | 4400 ft. | | | | | SHANNON | 4925 ft. | | | | | NIOBRARA | 7137 ft. | | | | | FORT HAYS | 7368 ft. | | | | | CODELL | 7390 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 4/22/2025 Interval Top: 7391 ft. Interval Bottom: 7407 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 4/2/2010 | Choke Size: | | | Formation Name: | CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/22/2010 | | Treatment Summary: | FRFAC'D CODELL W/133,332 GALS OF SLICK WATER, SILVERSTIM, AND 15% HCL WITH 270,100#'S OF OTTAWA SAND. CODELL PRODUCING THROUGH FLOW PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7391 ft. | # Of Holes: | 64 | | Interval Bottom: | 7407 ft. | Hole Size: | 0.41 in. |
|
Formation NB-CD Formation Classification: OW Status: TA - 5/1/2025 Interval Top: 7198 ft. Interval Bottom: 7407 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 4/2/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/22/2010 | | Treatment Summary: | COMMINGLE CODELL AND NIOBRARA. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 57 | | BTU_GAS | 1210 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 57 | | CALC_GOR | 3368 | | CALC_MCF_GAS | 192 | | CASING_PRESS | 750 | | GRAVITY_OIL | 61 | | MCF_GAS | 192 |
| | Perforation Data: | | Interval Top: | 7198 ft. | # Of Holes: | 112 | | Interval Bottom: | 7407 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 4/22/2025 Interval Top: 7198 ft. Interval Bottom: 7262 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 4/2/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/22/2010 | | Treatment Summary: | FRAC'D NIOBRARA W/175,340 GALS OF SLICK WATER AND SILVERSTIM WITH 250,020#'S OF OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7198 ft. | # Of Holes: | 48 | | Interval Bottom: | 7262 ft. | Hole Size: | 0.73 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/18/2026 |
| Defined Inactive (TA ) | Y | Defined Inactive
02/28/2025 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 2 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.006 |
| Federal Financial Assurance | i | |
|
|
