Wellbore #00 Wellbore Classification: OW Status: PA - 9/18/2020 Measured TD: 9100 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 9/18/2020 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 9/28/2011 | | Bottom Hole Location: | Sec:11 Twp: 7N 64W | Footage: 610 FNL 610 FWL | | Proposed Depth/Form: | 9150 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NW4 | | Formation And Spacing: | Code: LYNS , Formation: LYONS , Order: UNSPACED , Unit Acreage: 80, Drill Unit: W/2NW4 | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 80, Drill Unit: W2NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 312, Top: 0 ft., Bottom: 750 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9150 ft., Weight: 26 , Citings Type: PLANNED | | Cement: | Sacks: 622, Top: , Bottom: 9150 ft. |
| | |

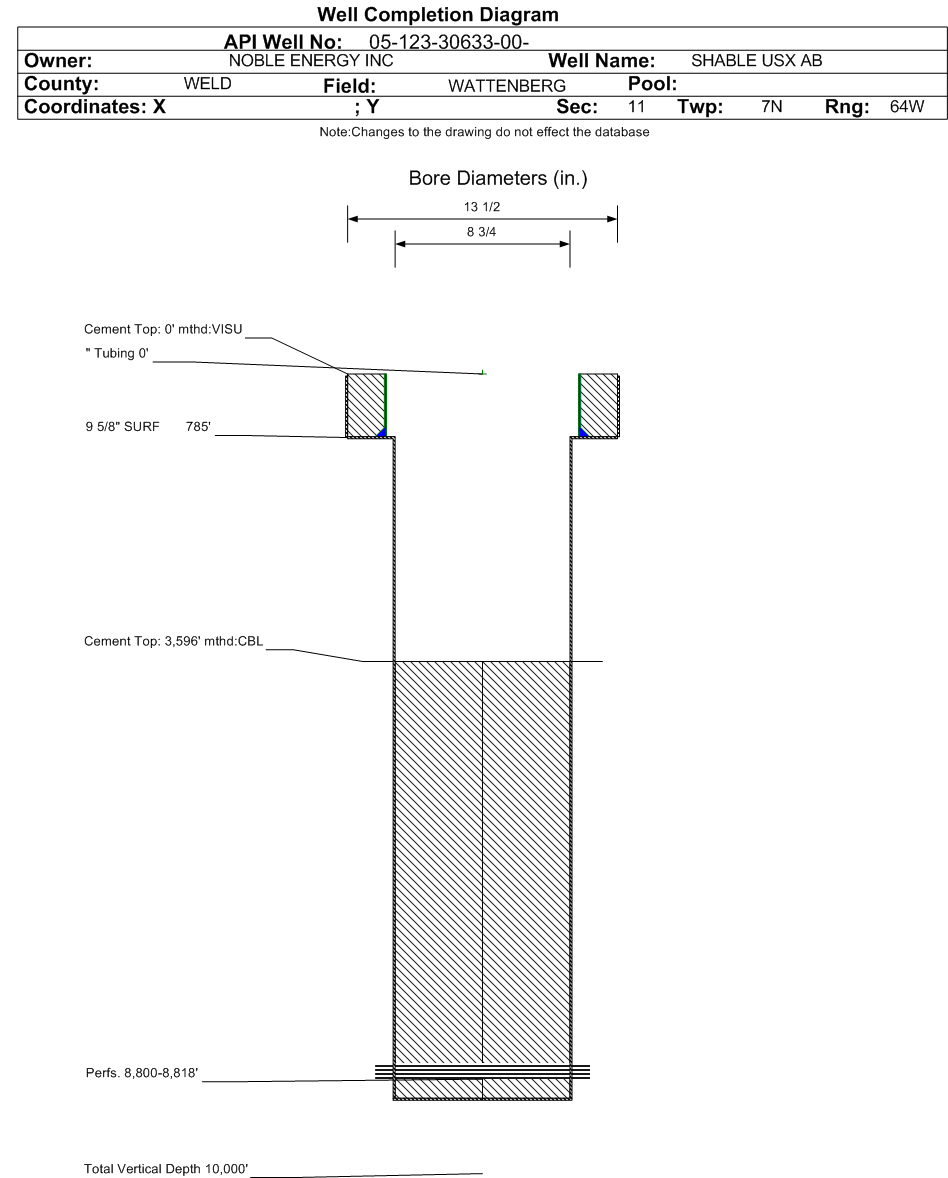

| Wellbore Completed | | Completion Date: | 4/2/2010 | | Spud Date: | 3/23/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 9100 ft. | Measured PB depth: | 5590 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Bottom Hole Location: | Sec:11 Twp: 7N 64W | Footage: 610 FNL 610 FWL | | Log Types: | CBL/VDL/GRL/CCL, SDL/DSNL/ACL/TRL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 785 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 309, Top: 0 ft., Bottom: 785 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 9058 ft., Weight: 26 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 1178 ft., Bottom: 9058 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 6720 ft. | | | | | FORT HAYS | 6991 ft. | | | | | CODELL | 7015 ft. | | | | | GREENHORN | 7059 ft. | | | | | MOWRY | 7452 ft. | | | | | J SAND | 7470 ft. | | | | | DAKOTA | 7718 ft. | | | | | MORRISON | 7847 ft. | | | | | LYONS | 8800 ft. | | | |
Formation LYNS Formation Classification: GW Status: AB - 9/18/2020 Interval Top: 8800 ft. Interval Bottom: 8818 ft.| Completed Information for Formation LYONS | | 1st Production Date: | 4/26/2010 | Choke Size: | 0.000 in. | | Formation Name: | LYONS | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/19/2010 | | Treatment Summary: | Did not Frac the Lyons |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/30/2010 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 571 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 571 | | CASING_PRESS | 5 | | GRAVITY_OIL | 41 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 8800 ft. | # Of Holes: | 72 | | Interval Bottom: | 8818 ft. | Hole Size: | 42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 09/18/2020 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
