COGIS - WELL SCOUT CARD

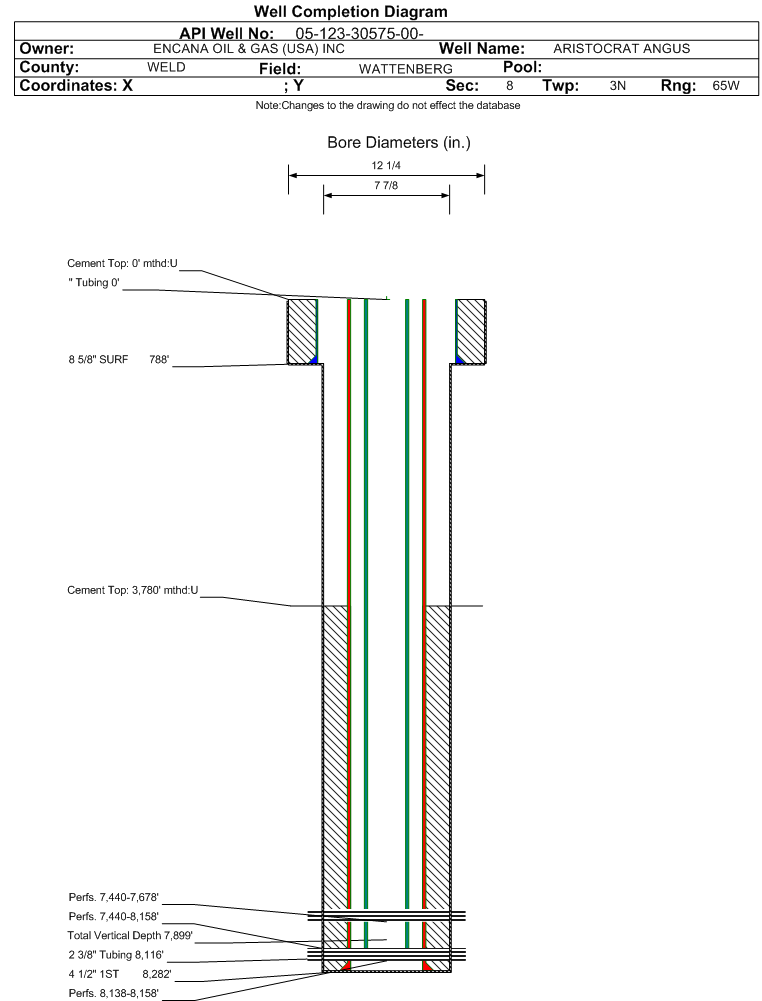

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30575		Well Classification: GW Status: PA - 3/29/2023
Well Name/No:ARISTOCRAT ANGUS #2-4-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/29/2023
FacilityID:412927LocationID:333183
County:WELD #123Location:NENW 8 3N65W 6
Field:WATTENBERG - #90750Elevation:4900 ft.
Planned Location:811FNL  2139 FWLLat/Long: 40.244940 / -104.689080Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.244906 / -104.689066Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/29/2023             Measured TD: 8295 ft.    Vertical TD: 7899 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/29/2023
Wellbore PermitDIRECTIONAL
Permit #:20092489 Expiration Date:8/9/2011
Proposed Top PZ Location:Sec:8 Twp: 3N 65W Footage: 2542 FNL  1303 FWL
Bottom Hole Location:Sec:8 Twp: 3N 65W Footage: 2546 FNL  1304 FWL
Proposed Depth/Form:8228 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: GRNHN , Formation: GREENHORN , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W/2
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 750 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 320, Top: 0 ft., Bottom: 750 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8228 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 290, Top: 7138 ft., Bottom: 8228 ft.
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5597 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 230, Top: 4623 ft., Bottom: 5597 ft.
Wellbore Completed
Completion Date:4/10/2010
Spud Date:4/2/2010Spud Date Is:ACTUAL
Measured TD:8295 ft.Measured PB depth:8211 ft.
True Vertical TD:7899 ft.True Vertical PB depth:7815 ft.
Top PZ Location:Sec:8 Twp: 3N 65WFootage: 2542 FNL  1303 FWL
Bottom Hole Location:Sec:8 Twp: 3N 65WFootage: 2546 FNL  1304 FWL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 788 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 785, Top: 0 ft., Bottom: 788 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8282 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 530, Top: 3780 ft., Bottom: 8282 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7372 ft.
CODELL7660 ft.
J SAND8124 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 3/29/2023                 Interval Top: 8138 ft.    Interval Bottom: 8158 ft.

 Completed Information for Formation J SAND
1st Production Date:4/17/2010Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2010
Treatment Summary:J SAND COMPLETION. FRAC'D THE J SAND WITH 152,838 GAL 18# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,060# 20/40 SAND. 04/14/2010.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8138 ft.# Of Holes:40
Interval Bottom:8158 ft.Hole Size:0.41 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/12/2023                 Interval Top: 7660 ft.    Interval Bottom: 7678 ft.

 Completed Information for Formation CODELL
1st Production Date:4/16/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7660 ft.# Of Holes:36
Interval Bottom:7678 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 5/4/2010                  Interval Top: 7440 ft.    Interval Bottom: 8158 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/14/2010
Treatment Summary:JSND-NBRR-CDL COMMINGLE. SET CBP @ 7270'. 04/28/10. DRILLED OUT CFP @ 7540' 04/29/10. DRILLED OUT CFP @ 7780' TO COMMINGLE THE JSND-NBRR CDL. 04/30/10. DRILLED OUT CBP @ 7270'. 04/29/10.
Tubing Size:2.375 in.Tubing Setting Depth:8116 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/4/2010Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 96
BBLS_OIL 37
BTU_GAS 1271
CALC_BBLS_H2O 96
CALC_BBLS_OIL 37
CALC_GOR 14108
CALC_MCF_GAS 522
CASING_PRESS 1232
MCF_GAS 522
TUBING_PRESS 815
Perforation Data:
Interval Top:7440 ft.# Of Holes:156
Interval Bottom:8158 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/29/2023                 Interval Top: 7440 ft.    Interval Bottom: 7678 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/15/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/14/2010
Treatment Summary:NBRR-CDL COMPLETION. SET CFP @ 7760'. 04/14/2010. FRAC'D THE CODELL WITH 110,208 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,720# 20/40 SAND. 04/14/10. SET CFP @ 7540'. 04/14/2010. FRAC'D THE NIOBRARA WITH 132,258 GAL 18# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,540# 20/40 SAND. 04/14/10.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7440 ft.# Of Holes:116
Interval Bottom:7678 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 1/12/2023                 Interval Top: 7440 ft.    Interval Bottom: 7460 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/15/2010Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7440 ft.# Of Holes:80
Interval Bottom:7460 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/29/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
