Wellbore #00 Wellbore Classification: OW Status: TA - 3/1/2024 Measured TD: 11420 ft. Vertical TD: 7288 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW TA - 3/1/2024 | | Wellbore Permit | HORIZONTAL | | Permit #: | 20091920 | Expiration Date: | 8/9/2010 | | Proposed Top PZ Location: | Sec:1 Twp: 11N 63W | Footage: 2190 FNL 2483 FWL | | Bottom Hole Location: | Sec:6 Twp: 11N 62W | Footage: 910 FSL 287 FWL | | Proposed Depth/Form: | 11838 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: S.C. 1.1, Hole Size: 6.25 in., Size: 4.5 in., Top: , Depth: 11838 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 365, Top: 6700 ft., Bottom: 11838 ft. |
| | |

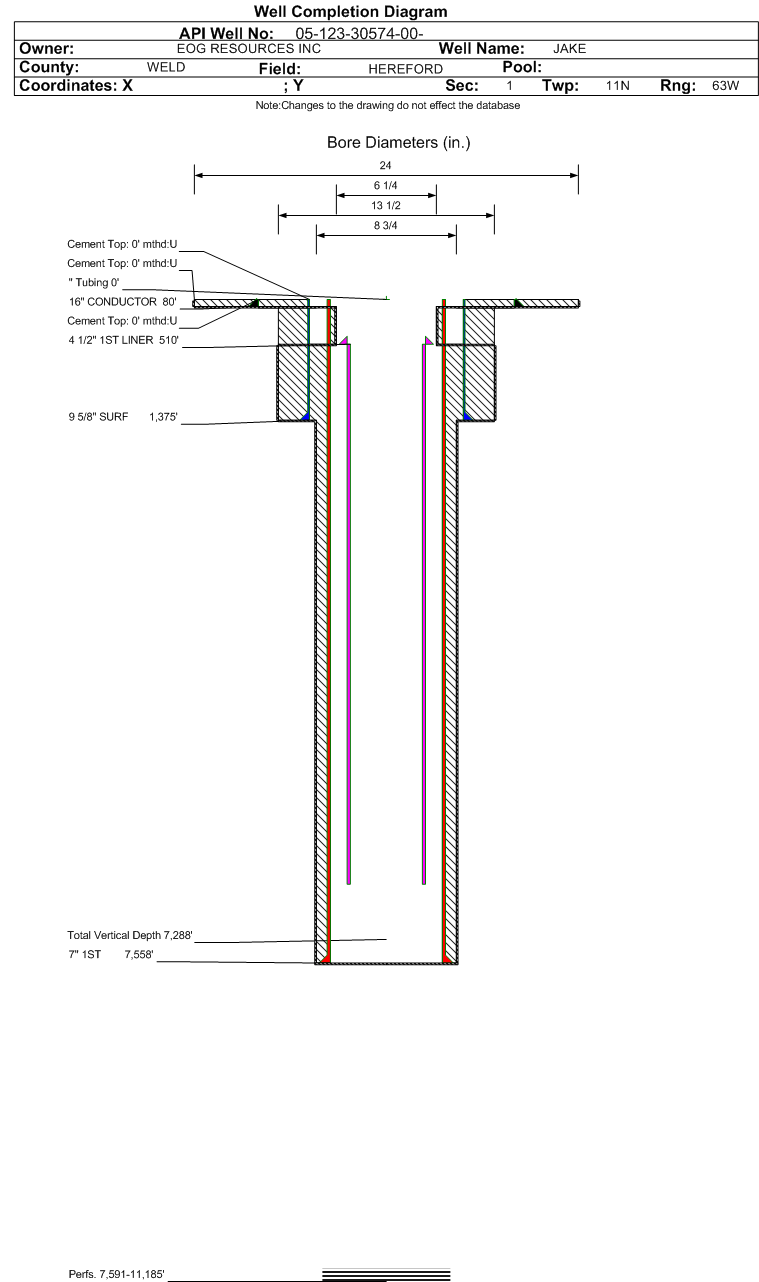

| Wellbore Completed | | Completion Date: | 9/5/2009 | | Spud Date: | 8/14/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 11420 ft. | Measured PB depth: | 11420 ft. | | True Vertical TD: | 7288 ft. | True Vertical PB depth: | 7288 ft. | | Top PZ Location: | Sec:1 Twp: 11N 63W | Footage: 2190 FNL 2483 FWL | | Bottom PZ Location: | Sec:6 Twp: 11N 62W | Footage: 1039 FSL 90 FWL | | Bottom Hole Location: | Sec:6 Twp: 11N 62W | Footage: 910 FSL 287 FWL | | Log Types: | MWD/CCL/CBL/VDL/GR | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 210, Top: 0 ft., Bottom: 97 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1375 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 954, Top: 0 ft., Bottom: 1375 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: , Top: 0 ft., Depth: 7558 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 0 ft., Bottom: 7558 ft., Determination Method: CBL | | Casing: | String Type: 1ST LINER, Hole Size: 6.25 in., Size: 4.5 in., Top: 6659 ft., Depth: 11416 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 510, Top: 6659 ft., Bottom: 11416 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WHITE RIVER | 0 ft. | | N | N | | PIERRE | 1500 ft. | 6665 ft. | N | N | | NIOBRARA | 6667 ft. | 11204 ft. | N | N |
Formation NBRR Formation Classification: OW Status: TA - 3/1/2024 Interval Top: 7591 ft. Interval Bottom: 11185 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 10/24/2009 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/1/2009 | | Treatment Summary: | FRAC'D 430 BBLS 7-1/2% HCL, 11,964 BBLS TREATED WATER, 53,498 BBLS GELLED WATER, 495,586# 100 MESH SAND AND 4,641,493# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 175 | | BBLS_OIL | 247 | | CALC_GOR | 704 | | MCF_GAS | 174 |
| | Perforation Data: | | Interval Top: | 7591 ft. | # Of Holes: | 432 | | Interval Bottom: | 11185 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2027 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
09/30/2017 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
