COGIS - WELL SCOUT CARD

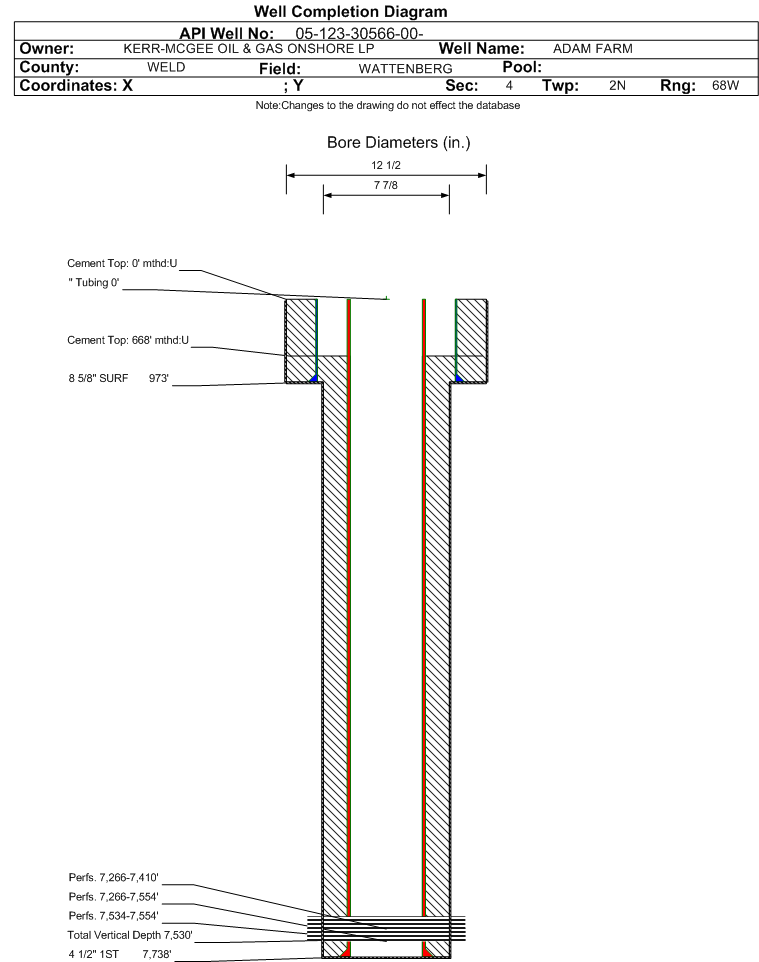

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30566		Well Classification: OW Status: PA - 9/26/2024
Well Name/No:ADAM FARM #28-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/26/2024
FacilityID:412872LocationID:318150
Municipality/County:FIRESTONE / WELD #123Location:SWNE 4 2N68W 6
Field:WATTENBERG - #90750Elevation:4885 ft.
Planned Location:1303FNL  1604 FELLat/Long: 40.171380 / -105.004120Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.171383 / -105.004119Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 9/26/2024             Measured TD: 7749 ft.    Vertical TD: 7530 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 9/26/2024
Wellbore PermitDIRECTIONAL
Permit #:20092461 Expiration Date:7/27/2011
Proposed Top PZ Location:Sec: Twp: Footage: 75 FNL  2600 FEL
Bottom Hole Location:Sec:4 Twp: 2N 68W Footage: 75 FNL  2600 FEL
Proposed Depth/Form:7683 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:10/16/2009
Spud Date:10/13/2009Spud Date Is:ACTUAL
Measured TD:7749 ft.Measured PB depth:7704 ft.
True Vertical TD:7530 ft.True Vertical PB depth:7485 ft.
Top PZ Location:Sec:4 Twp: 2N 68WFootage: 81 FNL  2597 FEL
Bottom Hole Location:Sec:4 Twp: 2N 68WFootage: 81 FNL  2597 FEL
Log Types:CD-CN-ML, DI-GL-GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 973 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 313, Top: 0 ft., Bottom: 973 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7738 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 685 ft., Bottom: 7738 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2650 ft.2800 ft.NN
PARKMAN3734 ft.3935 ft.NN
SUSSEX4254 ft.4380 ft.NN
SHANNON4720 ft.4785 ft.NN
NIOBRARA7253 ft.NN
FORT HAYS7509 ft.NN
CODELL7530 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/25/2010                 Interval Top: 7534 ft.    Interval Bottom: 7554 ft.

 Completed Information for Formation CODELL
1st Production Date:2/10/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/20/2009
Treatment Summary:203,019 GALS FLUID & 150,300 LBS 40/70 & 4,000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7534 ft.# Of Holes:60
Interval Bottom:7554 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/26/2024                 Interval Top: 7266 ft.    Interval Bottom: 7554 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/10/2010Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/23/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/25/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1355
CALC_BBLS_H2O 0
CALC_BBLS_OIL 44
CALC_GOR 1387
CALC_MCF_GAS 61
CASING_PRESS 1000
GRAVITY_OIL 51
Perforation Data:
Interval Top:7266 ft.# Of Holes:132
Interval Bottom:7554 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/25/2010                 Interval Top: 7266 ft.    Interval Bottom: 7410 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/10/2010Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/23/2009
Treatment Summary:500 GALS ACID & 245,148 GALS FLUID & 201,180 LBS 40/70 SAND & 4,000 LBS 20/40 EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7266 ft.# Of Holes:72
Interval Bottom:7410 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/26/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
