COGIS - WELL SCOUT CARD

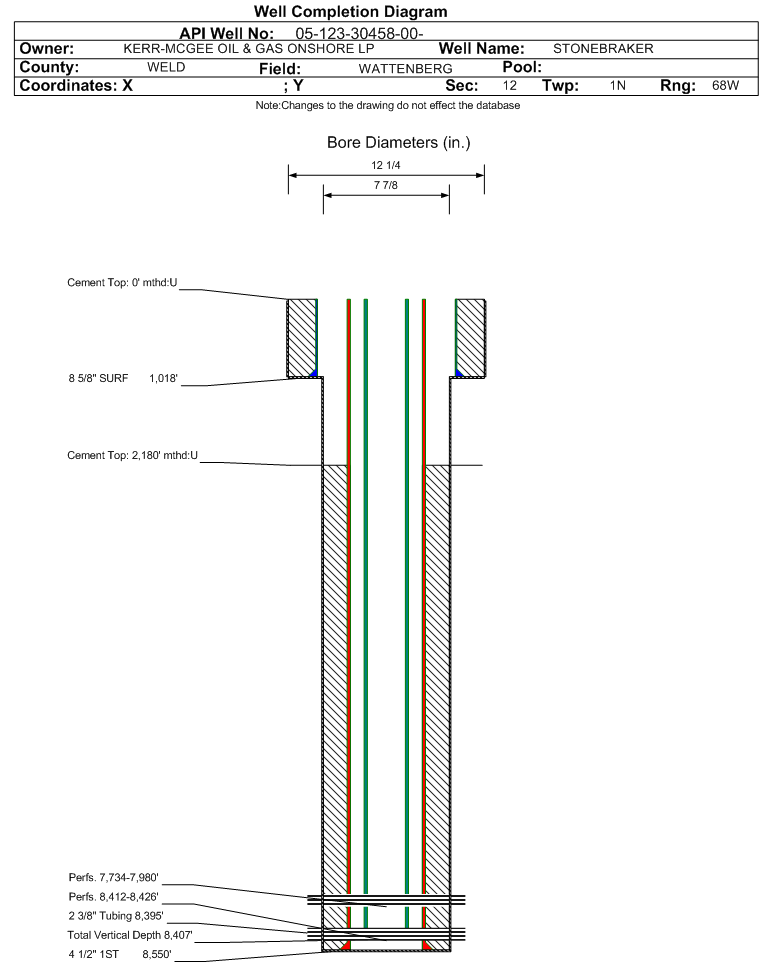

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30458		Well Classification: OW Status: PA - 3/17/2022
Well Name/No:STONEBRAKER #8-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/17/2022
FacilityID:412423LocationID:418016
Municipality/County:DACONO / WELD #123Location:SWNE 12 1N68W 6
Field:WATTENBERG - #90750Elevation:5076 ft.
Planned Location:1805FNL  2045 FELLat/Long: 40.068190 / -104.949660Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.068184 / -104.949660Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 3/17/2022             Measured TD: 8560 ft.    Vertical TD: 8407 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 3/17/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/26/2012
Proposed Top PZ Location:Sec:12 Twp: 1N 68W Footage: 1990   681
Bottom Hole Location:Sec:12 Twp: 1N 68W Footage: 1983   670
Proposed Depth/Form:8569 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S/2NE4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 900 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 630, Top: , Bottom: 900 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8569 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 8569 ft.
Wellbore Completed
Completion Date:9/10/2010
Spud Date:9/7/2010Spud Date Is:ACTUAL
Measured TD:8560 ft.Measured PB depth:8515 ft.
True Vertical TD:8407 ft.True Vertical PB depth:8362 ft.
Top PZ Location:Sec:12 Twp: 1N 68WFootage: 1990 FNL  681 FEL
Bottom Hole Location:Sec:12 Twp: 1N 68WFootage: 1983 FNL  670 FEL
Log Types:Preliminary Form 5
Log Types:CD-CN-ML, DI-GL-GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1018 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 1145, Top: 0 ft., Bottom: 1018 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8489 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 640, Top: 2165 ft., Bottom: 8489 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4774 ft.
SUSSEX5004 ft.
SHANNON5400 ft.
NIOBRARA7624 ft.
FORT HAYS7938 ft.
CODELL7960 ft.
J SAND8400 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 3/17/2022                 Interval Top: 8412 ft.    Interval Bottom: 8426 ft.

 Completed Information for Formation J SAND
1st Production Date:12/29/2010Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/1/2010
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 145,803 gal Slickwater w/ 116,320# 40/70, 4,000# SB Excel.
Tubing Size:2.375 in.Tubing Setting Depth:8395 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1109
CALC_BBLS_OIL 1
CALC_GOR 2000
CALC_MCF_GAS 2
CASING_PRESS 2046
GRAVITY_OIL 66
MCF_GAS 2
TUBING_PRESS 1039
Perforation Data:
Interval Top:8412 ft.# Of Holes:56
Interval Bottom:8426 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 3/17/2022                 Interval Top: 7734 ft.    Interval Bottom: 7980 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/29/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/15/2010
Treatment Summary:NB PERF 7734-7840 HOLES 60 SIZE 0.42 CD PERF 7962-7980 HOLES 54 SIZE 0.42 Frac Niobrara B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 238,306 gal Slickwater w/ 200,660# 40/70, 4,000# SuperLC. Frac Codell down 4-1/2" Csg w/ 206,174 gal Slickwater w/ 150,280# 40/70, 4,000# SuperLC.
Tubing Size:2.375 in.Tubing Setting Depth:8395 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 119
BTU_GAS 1109
CALC_BBLS_OIL 119
CALC_GOR 1513
CALC_MCF_GAS 180
CASING_PRESS 2046
GRAVITY_OIL 66
MCF_GAS 180
TUBING_PRESS 1039
Perforation Data:
Interval Top:7734 ft.# Of Holes:114
Interval Bottom:7980 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/17/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
