COGIS - WELL SCOUT CARD

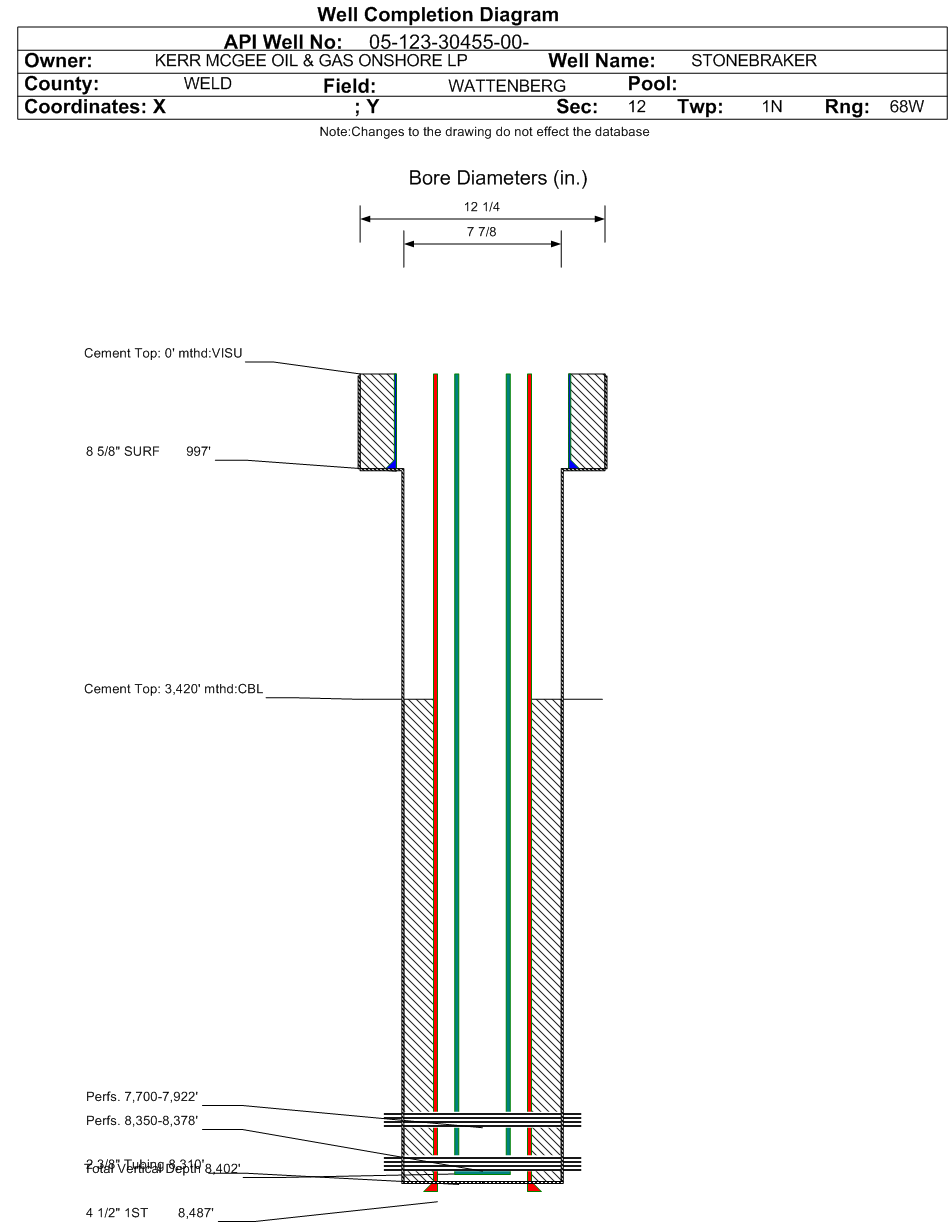

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30455
Well Classification: OW Status: PA - 11/14/2019
Well Name/No:STONEBRAKER #25-12
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PAStatus Date11/14/2019
FacilityID:412400LocationID:418016
Municipality/County:DACONO / WELD #123Location:SWNE 12 1N68W 6
Field:WATTENBERG - #90750Elevation:5077 ft.
Planned Location:1869FNL  2051 FELLat/Long: 40.068010 / -104.949690Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.068010 / -104.949688Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/14/2019             Measured TD: 8498 ft.    Vertical TD: 8402 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/14/2019
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/26/2012
Proposed Top PZ Location:Sec:12 Twp: 1N 68W Footage: 2521 FNL  2545 FEL
Bottom Hole Location:Sec:12 Twp: 1N 68W Footage: 2528 FNL  2546 FEL
Proposed Depth/Form:8479 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 900 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 630, Top: , Bottom: 900 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8479 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 8479 ft.

Wellbore Completed
Completion Date:9/24/2010
Spud Date:9/21/2010Spud Date Is:ACTUAL
Measured TD:8498 ft.Measured PB depth:8459 ft.
True Vertical TD:8402 ft.True Vertical PB depth:8363 ft.
Top PZ Location:Sec:12 Twp: 1N 68WFootage: 2521 FNL  2545 FEL
Bottom Hole Location:Sec:12 Twp: 1N 68WFootage: 2528 FNL  2546 FEL
Log Types:Preliminary Form 5
Log Types:GR-CCL-CB-VDL, CD-CN-ML, DI-GL-GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 997 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 630, Top: 0 ft., Bottom: 997 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8487 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1135, Top: 3420 ft., Bottom: 8487 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4350 ft.
SUSSEX4814 ft.
SHANNON5300 ft.
NIOBRARA7582 ft.
FORT HAYS7879 ft.
CODELL7900 ft.
J SAND8347 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/14/2019                Interval Top: 8350 ft.    Interval Bottom: 8378 ft.

 Completed Information for Formation J SAND
1st Production Date:1/5/2011Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/2010
Treatment Summary:Frac J-Sand down 4-1/2" Csg w/ 148,180 gal Slickwater w/ 115,840# 40/70, 4,000# SuperLC.
Tubing Size:2.375 in.Tubing Setting Depth:8310 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1109
CASING_PRESS 2220
GRAVITY_OIL 66
TUBING_PRESS 1720
Perforation Data:
Interval Top:8350 ft.# Of Holes:60
Interval Bottom:8378 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 11/14/2019                Interval Top: 7700 ft.    Interval Bottom: 7922 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/5/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2010
Treatment Summary:NB PERF 7700-7774 HOLES 54 SIZE 0.420 CD PERF 7902-7922 HOLES 60 SIZE 0.42 Frac Niobrara B & C down 4-1/2" Csg w/ 250 gal 15% HCl & 247,086 gal Slickwater w/ 200,280# 30/50, 4,000# SuperLC. Frac Codell down 4-1/2" Csg w/ 204,624 gal Slickwater w/ 151,200# 30/50, 4,000# SuperLC.
Tubing Size:2.375 in.Tubing Setting Depth:8310 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1109
CALC_BBLS_OIL 1
CALC_GOR 345000
CALC_MCF_GAS 354
CASING_PRESS 2220
GRAVITY_OIL 66
MCF_GAS 354
TUBING_PRESS 1720
Perforation Data:
Interval Top:7700 ft.# Of Holes:114
Interval Bottom:7922 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/14/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
