COGIS - WELL SCOUT CARD

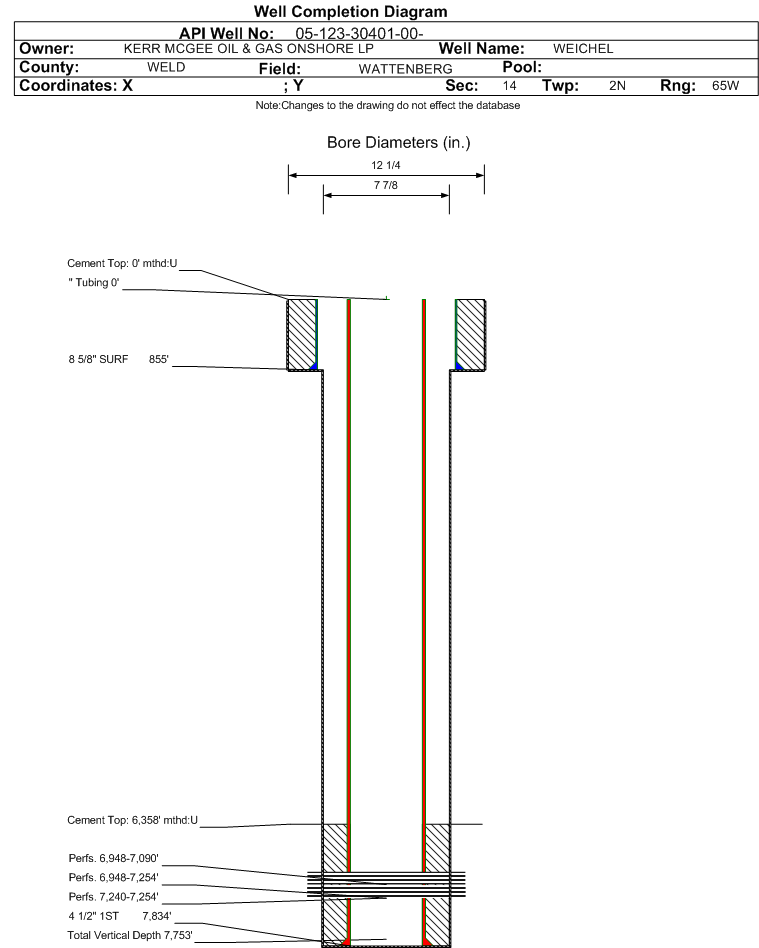

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30401		Well Classification: GW Status: PA - 11/19/2018
Well Name/No:WEICHEL #24-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/19/2018
FacilityID:412155LocationID:318130
County:WELD #123Location:SWNE 14 2N65W 6
Field:WATTENBERG - #90750Elevation:4872 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1712FNL  1600 FELLat/Long: 40.141120 / -104.627260Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.141125 / -104.627264Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/19/2018             Measured TD: 7850 ft.    Vertical TD: 7753 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/19/2018
Wellbore PermitDIRECTIONAL
Permit #:20091622 Expiration Date:5/12/2010
Proposed Top PZ Location:Sec: Twp: Footage: 2600 FSL  1320 FEL
Bottom Hole Location:Sec:14 Twp: 2N 65W Footage: 2600 FSL  1320 FEL
Proposed Depth/Form:7830 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:7/4/2009
Spud Date:6/30/2009Spud Date Is:ACTUAL
Measured TD:7850 ft.Measured PB depth:7796 ft.
True Vertical TD:7753 ft.True Vertical PB depth:7699 ft.
Top PZ Location:Sec:14 Twp: 2N 65WFootage: 2606 FNL  1313 FEL
Bottom Hole Location:Sec:14 Twp: 2N 65WFootage: 2606 FNL  1313 FEL
Log Types:P/E AILC-CNLD-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 855 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 855 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7834 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 6358 ft., Bottom: 7834 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4948 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 510, Top: 1046 ft., Bottom: 4978 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3990 ft.NN
SUSSEX4504 ft.NN
NIOBRARA6940 ft.NN
FORT HAYS7216 ft.NN
CODELL7239 ft.NN
J SAND7684 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/30/2009                Interval Top: 7240 ft.    Interval Bottom: 7254 ft.

 Completed Information for Formation CODELL
1st Production Date:10/7/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/27/2009
Treatment Summary:166196 GALS FLUID & 119760 LBS 40/70 SAND & 4000 LBS SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7240 ft.# Of Holes:56
Interval Bottom:7254 ft.Hole Size:0.4 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/19/2018                Interval Top: 6948 ft.    Interval Bottom: 7254 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/7/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/4/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/30/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1246
CALC_BBLS_OIL 44
CALC_GOR 1170
CALC_MCF_GAS 75
CASING_PRESS 2740
GRAVITY_OIL 50
Perforation Data:
Interval Top:6948 ft.# Of Holes:122
Interval Bottom:7254 ft.Hole Size:0.4 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/30/2009                Interval Top: 6948 ft.    Interval Bottom: 7090 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/7/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/28/2009
Treatment Summary:245007 GALS FLUID & 204940 LBS 40/70 SAND & 4000 LBS SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6948 ft.# Of Holes:66
Interval Bottom:7090 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/19/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
