COGIS - WELL SCOUT CARD

Insp

Surface Location
API# 05-123-30388

Well Classification: GW

Status: PA - 9/27/2018

Well Name/No:

WEICHEL #1-14
(Click Well Name for Production Data)

Click Here for Transporter Gatherer Info

Operator:

KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)

Federal Or State Lease #:

Facility Status:

Status Date

9/27/2018

FacilityID:

412095

LocationID:

318130

County:

WELD #123

Location:

SWNE 14 2N65W 6

Field:

WATTENBERG - #90750

Elevation:

4874 ft.

Basin:

DENVER (DJ) BASIN

Planned Location:

1616FNL 1600 FEL

Lat/Long: 40.141378 / -104.627269

Lat/Long Source: Field Measured

As Drilled Location:

Footages Not Available

Lat/Long: 40.141378 / -104.627269

Lat/Long Source: Field Measured

Disclosure: Sidetrack #00
Start Date: 1/18/2011
End Date: 1/18/2011
Reported: 5/17/2011
Prior to rule 205A.b.(2)(A)
Days to report: 119

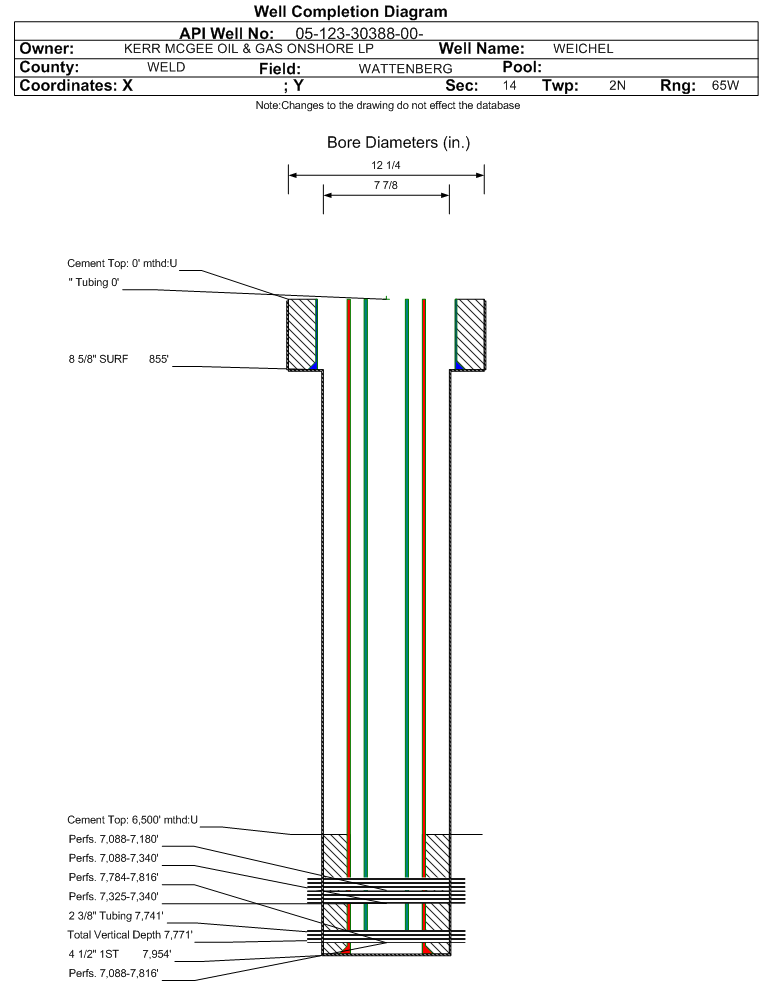

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PA - 9/27/2018 Measured TD: 7965 ft. Vertical TD: 7771 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PA - 9/27/2018
Wellbore Permit			DIRECTIONAL
Permit #:		Expiration Date:	8/23/2012
Proposed Top PZ Location:	Sec:14 Twp: 2N 65W	Footage: 661 FNL 655 FEL
Bottom Hole Location:	Sec:14 Twp: 2N 65W	Footage: 661 FNL 655 FEL
Proposed Depth/Form:	7965 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E/2
Formation And Spacing:	Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N/2NE
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 855 ft., Weight: 24 , Citings Type: PLANNED
Cement:	Sacks: 540, Top: 0 ft., Bottom: 855 ft.
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7954 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:	Sacks: 750, Top: 1184 ft., Bottom: 7954 ft.

Wellbore Completed
Completion Date:	7/29/2009
Spud Date:	7/24/2009	Spud Date Is:	ACTUAL
Measured TD:	7965 ft.	Measured PB depth:	7917 ft.
True Vertical TD:	7771 ft.	True Vertical PB depth:	7723 ft.
Top PZ Location:	Sec:14 Twp: 2N 65W	Footage: 661 FNL 655 FEL
Bottom Hole Location:	Sec:14 Twp: 2N 65W	Footage: 661 FNL 655 FEL
Log Types:	P/E AILC-CNDL-ML-TC, CBL
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 855 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 540, Top: 0 ft., Bottom: 855 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7954 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 230, Top: 6500 ft., Bottom: 7954 ft., Determination Method: CBL
Casing:	String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4982 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 520, Top: 1184 ft., Bottom: 5000 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
PARKMAN	4080 ft.	4291 ft.	N	N
SUSSEX	4378 ft.	4710 ft.	N	N
NIOBRARA	7028 ft.		N	N
FORT HAYS	7302 ft.		N	N
CODELL	7324 ft.		N	N
J SAND	7773 ft.		N	N

Formation JSND Formation Classification: OW Status: AB - 9/27/2018 Interval Top: 7784 ft. Interval Bottom: 7816 ft.

Completed Information for Formation J SAND

1st Production Date:	2/2/2011	Choke Size:
Formation Name:	J SAND	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/18/2011
Treatment Summary:	Frac J-Sand down 4-1/2" Csg w/ 164,052 gal Slickwater w/ 115,040# 40/70, 4,340# SB Excel, 0# .

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation JSND.

Perforation Data:
Interval Top:	7784 ft.	# Of Holes:	38
Interval Bottom:	7816 ft.	Hole Size:	0.42 in.

Formation CODL Formation Classification: GW Status: CM - 11/12/2012 Interval Top: 7325 ft. Interval Bottom: 7340 ft.

Completed Information for Formation CODELL

1st Production Date:	10/5/2009	Choke Size:
Formation Name:	CODELL	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	8/31/2009
Treatment Summary:	205055 GALS FLUID & 151000 LBS 20/40 SAND & 4000 LBS 20/40 SB EXCEL

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation CODL.

Perforation Data:
Interval Top:	7325 ft.	# Of Holes:	60
Interval Bottom:	7340 ft.	Hole Size:	0.42 in.

Formation JNBCD Formation Classification: OW Status: CM - 2/27/2011 Interval Top: 7088 ft. Interval Bottom: 7816 ft.

Completed Information for Formation J-NIOBRARA-CODELL

1st Production Date:	2/2/2011	Choke Size:
Formation Name:	J-NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	1/18/2011
Treatment Summary:	nb perf 7088-7180 holes 54 size .42 cd perf 7325-7340 holes 60 size .42 jsnd perf 7784-7816 holes 38 size .42

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7741 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	2/27/2011	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	WET
Gas Disposal:	SOLD
BBLS_OIL	8
BTU_GAS	1341
CALC_BBLS_OIL	8
CALC_GOR	8750
CALC_MCF_GAS	70
CASING_PRESS	996
GRAVITY_OIL	52
MCF_GAS	70
TUBING_PRESS	705

Perforation Data:
Interval Top:	7088 ft.	# Of Holes:	152
Interval Bottom:	7816 ft.	Hole Size:	0.42 in.

Formation NB-CD Formation Classification: GW Status: AB - 9/27/2018 Interval Top: 7088 ft. Interval Bottom: 7340 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	10/5/2009	Choke Size:	0.250 in.
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/29/2009
Treatment Summary:

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	11/11/2009	Test Method:	FLOWING
Hours Tested:		Gas Type:	SHALE
Gas Disposal:	SOLD
BTU_GAS	1246
CALC_BBLS_OIL	52
CALC_GOR	1930
CALC_MCF_GAS	100
CASING_PRESS	2850
GRAVITY_OIL	50

Perforation Data:
Interval Top:	7088 ft.	# Of Holes:	114
Interval Bottom:	7340 ft.	Hole Size:	0.42 in.

Formation NBRR Formation Classification: GW Status: CM - 11/12/2012 Interval Top: 7088 ft. Interval Bottom: 7180 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	10/5/2009	Choke Size:
Formation Name:	NIOBRARA	Commingled:	Yes
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	9/1/2009
Treatment Summary:	500 GALS ACID & 243657 GALS FLUID & 200400 LBS 40/70 SAND & 4000 LBS 20/40 SB EXCEL

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation NBRR.

Perforation Data:
Interval Top:	7088 ft.	# Of Holes:	54
Interval Bottom:	7180 ft.	Hole Size:	0.41 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	09/27/2018
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

December 2024 - November 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
