COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30371		Well Classification: GW Status: PA - 1/23/2024
Well Name/No:ADLER #13-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/23/2024
FacilityID:412062LocationID:318077
County:WELD #123Location:SWSW 34 3N68W 6
Field:WATTENBERG - #90750Elevation:4910 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1328FSL  1156 FWLLat/Long: 40.178610 / -104.994210Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.178613 / -104.994213Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 1/23/2024             Measured TD: 7615 ft.    Vertical TD: 7518 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 1/23/2024
Wellbore PermitDIRECTIONAL
Permit #:20091528 Expiration Date:5/4/2010
Proposed Top PZ Location:Sec: Twp: Footage: 660 FSL  580 FWL
Bottom Hole Location:Sec:34 Twp: 3N 68W Footage: 660 FSL  580 FWL
Proposed Depth/Form:7569 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W/2SW4
Wellbore Completed
Completion Date:7/3/2009
Spud Date:6/29/2009Spud Date Is:ACTUAL
Measured TD:7615 ft.Measured PB depth:7569 ft.
True Vertical TD:7518 ft.True Vertical PB depth:7472 ft.
Top PZ Location:Sec:34 Twp: 3N 68WFootage: 682 FSL  559 FWL
Bottom Hole Location:Sec:34 Twp: 3N 68WFootage: 682 FSL  559 FWL
Log Types:P/E AILC-CNDL-ML, CBL

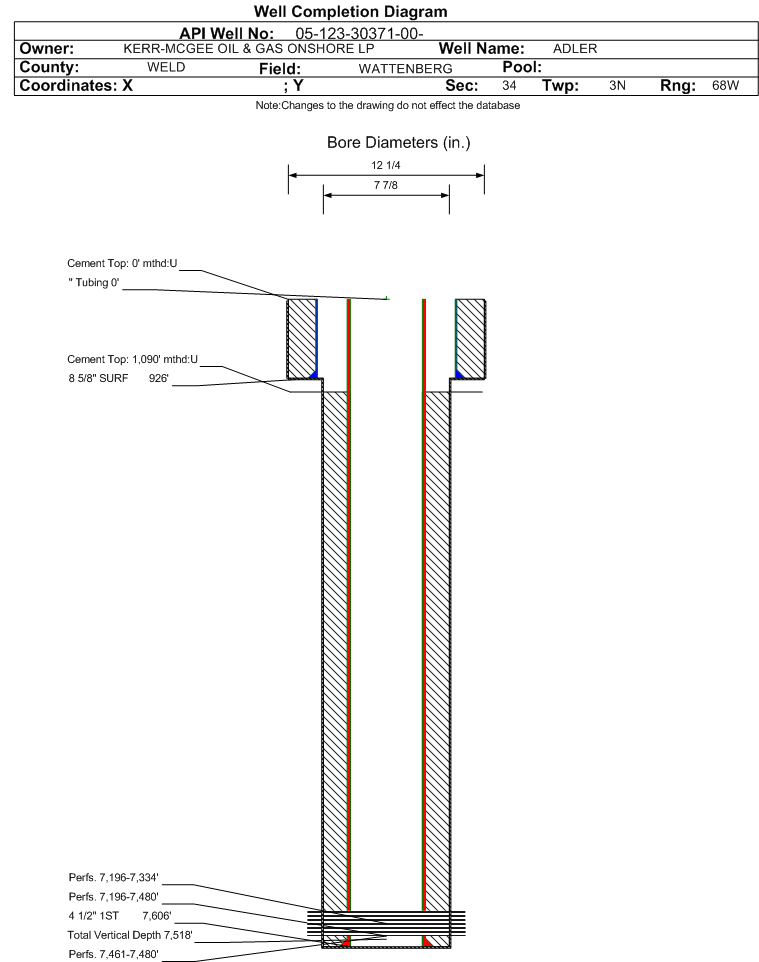

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 926 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 0 ft., Bottom: 926 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7606 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 810, Top: 1070 ft., Bottom: 7606 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3666 ft.3756 ft.NN
SUSSEX4144 ft.4402 ft.NN
SHANNON4682 ft.4741 ft.NN
NIOBRARA7182 ft.NN
FORT HAYS7448 ft.NN
CODELL7458 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/8/2009                 Interval Top: 7461 ft.    Interval Bottom: 7480 ft.

 Completed Information for Formation CODELL
1st Production Date:10/1/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/30/2009
Treatment Summary:203404 GALS FLUID & 151240 LBS 40/70 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7461 ft.# Of Holes:57
Interval Bottom:7480 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/23/2024                 Interval Top: 7196 ft.    Interval Bottom: 7480 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/1/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/1/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/8/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1283
CALC_BBLS_OIL 44
CALC_GOR 6030
CALC_MCF_GAS 265
CASING_PRESS 1100
GRAVITY_OIL 51
Perforation Data:
Interval Top:7196 ft.# Of Holes:123
Interval Bottom:7480 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/8/2009                 Interval Top: 7196 ft.    Interval Bottom: 7334 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/1/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/4/2009
Treatment Summary:247338 GALS FLUID & 200940 LBS 40/70 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7196 ft.# Of Holes:66
Interval Bottom:7334 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/23/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
