COGIS - WELL SCOUT CARD

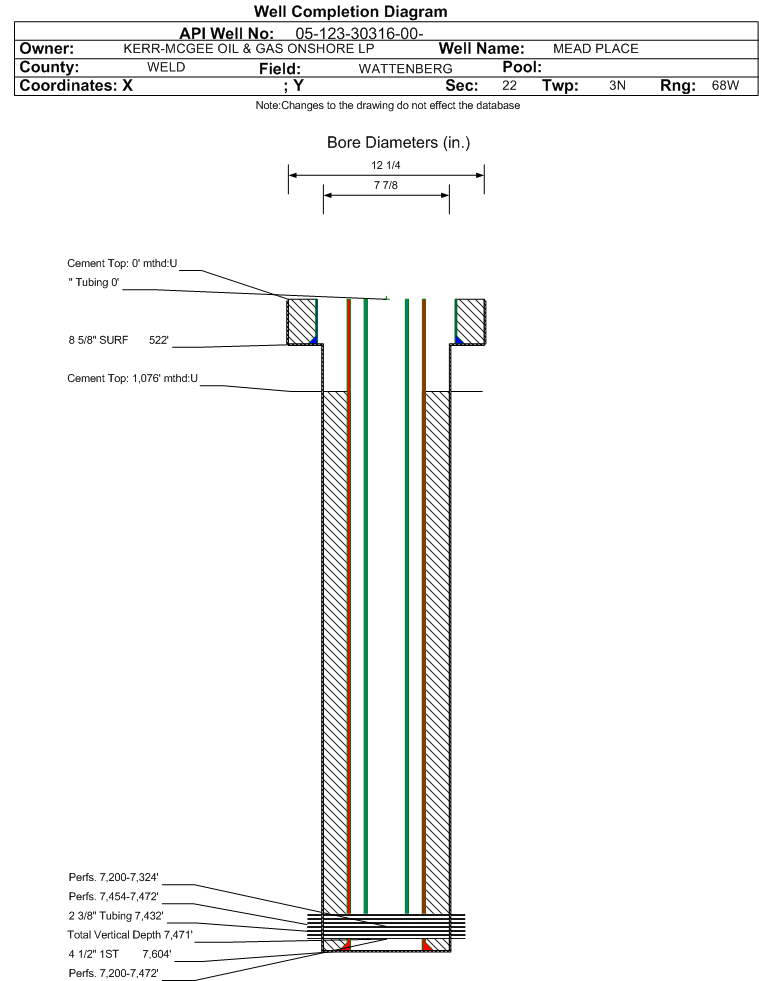

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30316		Well Classification: OW Status: PA - 10/28/2024
Well Name/No:MEAD PLACE #22-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/28/2024
FacilityID:411937LocationID:336325
Municipality/County:MEAD / WELD #123Location:NESW 22 3N68W 6
Field:WATTENBERG - #90750Elevation:4981 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1613FSL  1566 FWLLat/Long: 40.208570 / -104.992790Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.208569 / -104.992787Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 10/28/2024             Measured TD: 7615 ft.    Vertical TD: 7471 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 10/28/2024
Wellbore PermitDIRECTIONAL
Permit #:20090362 Expiration Date:4/20/2010
Proposed Top PZ Location:Sec:22 Twp: 3N 68W Footage: 2551 FNL  1308 FWL
Bottom Hole Location:Sec:22 Twp: 3N 68W Footage: 2551 FNL  1308 FWL
Proposed Depth/Form:7632 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:8/5/2009
Spud Date:8/2/2009Spud Date Is:ACTUAL
Measured TD:7615 ft.Measured PB depth:7579 ft.
True Vertical TD:7471 ft.True Vertical PB depth:7434 ft.
Top PZ Location:Sec:22 Twp: 3N 68WFootage: 2551 FNL  1308 FWL
Bottom Hole Location:Sec:22 Twp: 3N 68WFootage: 2551 FNL  1308 FWL
Log Types:P/E AILC-CNLD-ML-TRIPLE COMBO, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 522 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 522 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7604 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 816, Top: 1030 ft., Bottom: 7604 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3670 ft.NN
SUSSEX4153 ft.NN
SHANNON4688 ft.NN
NIOBRARA7178 ft.NN
FORT HAYS7432 ft.NN
CODELL7453 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/16/2010                 Interval Top: 7454 ft.    Interval Bottom: 7472 ft.

 Completed Information for Formation CODELL
1st Production Date:11/24/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/20/2009
Treatment Summary:FRAC W/ 206,800 GAL SW W/ 157,153# 40/70 & 6,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7454 ft.# Of Holes:54
Interval Bottom:7472 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/28/2024                Interval Top: 7200 ft.    Interval Bottom: 7472 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/24/2009Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/20/2009
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7432 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1206
CALC_BBLS_H2O 0
CALC_BBLS_OIL 23
CALC_GOR 8304
CALC_MCF_GAS 191
CASING_PRESS 478
GRAVITY_OIL 50
TUBING_PRESS 198
Perforation Data:
Interval Top:7200 ft.# Of Holes:126
Interval Bottom:7472 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/16/2010                 Interval Top: 7200 ft.    Interval Bottom: 7324 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/24/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/20/2009
Treatment Summary:FRAC W/ 500 GAL 15% HCI & 247,441 GAL SW W/ 200,400# 40/70 & 6,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7200 ft.# Of Holes:72
Interval Bottom:7324 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/28/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
