COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30310		Well Classification: OW Status: PA - 8/3/2023
Well Name/No:MEAD PLACE #25-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/3/2023
FacilityID:411931LocationID:336325
Municipality/County:MEAD / WELD #123Location:NESW 22 3N68W 6
Field:WATTENBERG - #90750Elevation:4980 ft.
Planned Location:1613FSL  1586 FWLLat/Long: 40.208570 / -104.992720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.208570 / -104.992715Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 8/3/2023             Measured TD: 7700 ft.    Vertical TD: 7460 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 8/3/2023
Wellbore PermitDIRECTIONAL
Permit #:20090363 Expiration Date:4/20/2010
Proposed Top PZ Location:Sec:22 Twp: 3N 68W Footage: 2571 FNL  2560 FWL
Bottom Hole Location:Sec:22 Twp: 3N 68W Footage: 2571 FNL  2560 FWL
Proposed Depth/Form:7720 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:8/13/2009
Spud Date:8/10/2009Spud Date Is:ACTUAL
Measured TD:7700 ft.Measured PB depth:7648 ft.
True Vertical TD:7460 ft.True Vertical PB depth:7408 ft.
Top PZ Location:Sec:22 Twp: 3N 68WFootage: 2571 FNL  2560 FWL
Bottom Hole Location:Sec:22 Twp: 3N 68WFootage: 2571 FNL  2560 FWL
Log Types:P/E AILC-CNLD-ML-TC, CBL

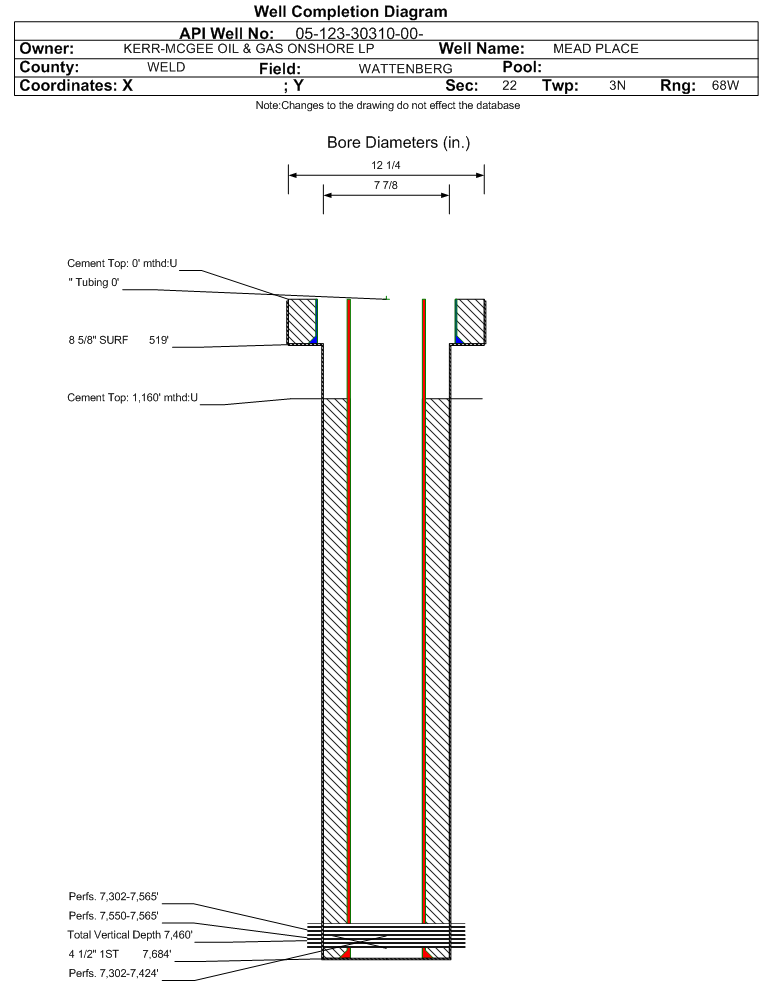

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 519 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 519 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7684 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 1160 ft., Bottom: 7684 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3698 ft.3806 ft.NN
SUSSEX4040 ft.4452 ft.NN
SHANNON4753 ft.4860 ft.NN
NIOBRARA7277 ft.NN
FORT HAYS7527 ft.NN
CODELL7546 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/3/2009                 Interval Top: 7550 ft.    Interval Bottom: 7565 ft.

 Completed Information for Formation CODELL
1st Production Date:11/23/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/6/2009
Treatment Summary:228560 GALS FLUID & 150780 LBS 30/50 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7550 ft.# Of Holes:60
Interval Bottom:7565 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 8/3/2023                  Interval Top: 7302 ft.    Interval Bottom: 7565 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/23/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/23/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1310
CALC_BBLS_OIL 24
CASING_PRESS 950
GRAVITY_OIL 50
Perforation Data:
Interval Top:7302 ft.# Of Holes:120
Interval Bottom:7565 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/3/2009                 Interval Top: 7302 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/23/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/22/2009
Treatment Summary:249511 GALS FLUID & 200250 LBS 30/50 SAND & 4000 LBS SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7302 ft.# Of Holes:60
Interval Bottom:7424 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/03/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
