COGIS - WELL SCOUT CARD

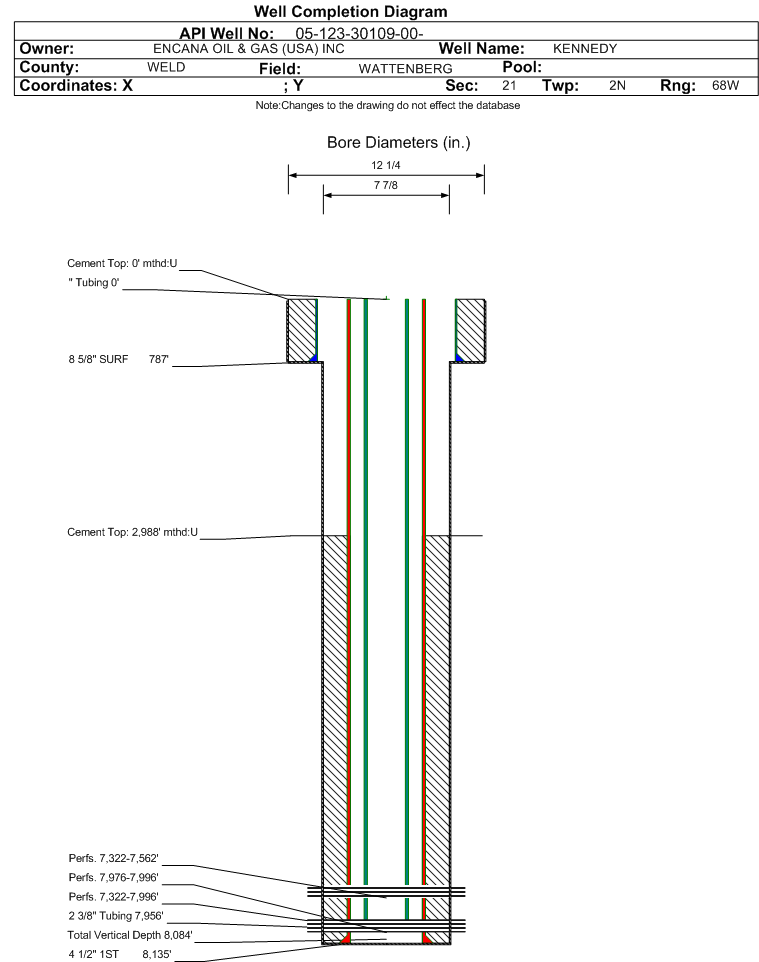

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30109		Well Classification: GW Status: PA - 10/25/2024
Well Name/No:KENNEDY #4-2-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/25/2024
FacilityID:301839LocationID:305305
County:WELD #123Location:NWNE 21 2N68W 6
Field:WATTENBERG - #90750Elevation:4886 ft.
Basin:DENVER (DJ) BASIN
Planned Location:681FNL  1995 FELLat/Long: 40.129630 / -105.005880Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.129651 / -105.005890Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 7/20/2012
End Date: 7/20/2012
Reported: 10/4/2012
Days to report: 76
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/25/2024             Measured TD: 8162 ft.    Vertical TD: 8084 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/25/2024
Wellbore PermitDIRECTIONAL
Permit #:20090587 Expiration Date:2/26/2010
Proposed Top PZ Location:Sec:21 Twp: 2N 68W Footage: 1354 FNL  2565 FEL
Bottom Hole Location:Sec:21 Twp: 2N 68W Footage: 1354 FNL  2565 FEL
Proposed Depth/Form:8135 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5073 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 230, Top: 4101 ft., Bottom: 5073 ft.
Wellbore Completed
Completion Date:4/27/2009
Spud Date:4/22/2009Spud Date Is:ACTUAL
Measured TD:8162 ft.Measured PB depth:8142 ft.
True Vertical TD:8084 ft.True Vertical PB depth:8064 ft.
Top PZ Location:Sec:21 Twp: 2N 68WFootage: 1354 FNL  2565 FEL
Bottom Hole Location:Sec:21 Twp: 2N 68WFootage: 1354 FNL  2565 FEL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 787 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 787 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8135 ft., Weight: 11.60 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 2988 ft., Bottom: 8135 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7322 ft.NN
CODELL7542 ft.NN
J SAND7976 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/30/2022                Interval Top: 7976 ft.    Interval Bottom: 7996 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/7/2009
Treatment Summary:J SAND COMPLETION. FRAC'D THE JSAND W/152,796 GAL 22# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,600# SAND. 05/07/09.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7976 ft.# Of Holes:40
Interval Bottom:7996 ft.Hole Size:0.41 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/13/2022                 Interval Top: 7542 ft.    Interval Bottom: 7562 ft.

 Completed Information for Formation CODELL
1st Production Date:4/30/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7542 ft.# Of Holes:40
Interval Bottom:7562 ft.Hole Size:0.41 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 5/29/2009                 Interval Top: 7322 ft.    Interval Bottom: 7996 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/27/2009
Treatment Summary:JSND-NBRR-CDL COMMINGLE. SET CBP @7210'. 05/20/09. DRILLED OUT CBP @ 7210'. 05/21/09. DRILLED OUT CFP @ 7450' AND 7650' TO COMMINGLE THE JSND-NBRR-CDL 05/25/09.
Tubing Size:2.375 in.Tubing Setting Depth:7956 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/29/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 24
BBLS_OIL 59
BTU_GAS 1256
CALC_BBLS_H2O 24
CALC_BBLS_OIL 59
CALC_GOR 6559
CALC_MCF_GAS 387
CASING_PRESS 978
GRAVITY_OIL 48
MCF_GAS 387
TUBING_PRESS 491
Perforation Data:
Interval Top:7322 ft.# Of Holes:160
Interval Bottom:7996 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/30/2022                Interval Top: 7322 ft.    Interval Bottom: 7562 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/7/2009
Treatment Summary:NBRR-CDL COMPLETION. SET CFP @7650'. 05/07/09. FRAC'D THE CODELL WITH 108,822 GAL 24# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250,380# 20/40 SAND. 05/07/09. SET CFP @ 7450'. 05/07/09. FRAC'D THE NIOBRARA W/140,490 GAL 18# VISTAR CROSS CONT NEXT PAGE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 42
BBLS_OIL 55
BTU_GAS 1256
CALC_BBLS_H2O 42
CALC_BBLS_OIL 55
CALC_GOR 10963
CALC_MCF_GAS 603
CASING_PRESS 349
GRAVITY_OIL 48
MCF_GAS 603
Perforation Data:
Interval Top:7322 ft.# Of Holes:120
Interval Bottom:7562 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/13/2022                 Interval Top: 7322 ft.    Interval Bottom: 7342 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:4/30/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7322 ft.# Of Holes:80
Interval Bottom:7342 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/25/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
