COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-30014		Well Classification: OW Status: SI - 6/1/2024
Well Name/No:GOLD #9C-DU
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2024
FacilityID:301384LocationID:332616
County:WELD #123Location:NENE 9 4N67W 6
Field:WATTENBERG - #90750Elevation:4782 ft.
Basin:DENVER (DJ) BASIN
Planned Location:626FNL  1272 FELLat/Long: 40.332620 / -104.891190Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.332580 / -104.891190Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 6/1/2024             Measured TD: 7392 ft.    Vertical TD: 7304 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 6/1/2024
Wellbore PermitDIRECTIONAL
Permit #:20090016 Expiration Date:2/8/2010
Proposed Top PZ Location:Sec:9 Twp: 4N 67W Footage: 1482 FNL  1310 FEL
Bottom Hole Location:Sec:9 Twp: 4N 67W Footage: 1482 FNL  1310 FEL
Proposed Depth/Form:7505 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:10/3/2009
Spud Date:9/29/2009Spud Date Is:ACTUAL
Measured TD:7392 ft.Measured PB depth:7343 ft.
True Vertical TD:7304 ft.True Vertical PB depth:7255 ft.
Top PZ Location:Sec:9 Twp: 4N 67WFootage: 1482 FNL  1310 FEL
Bottom Hole Location:Sec:9 Twp: 4N 67WFootage: 1482 FNL  1310 FEL
Log Types:CBL, CNL/CDL, DUAL INDUCTION

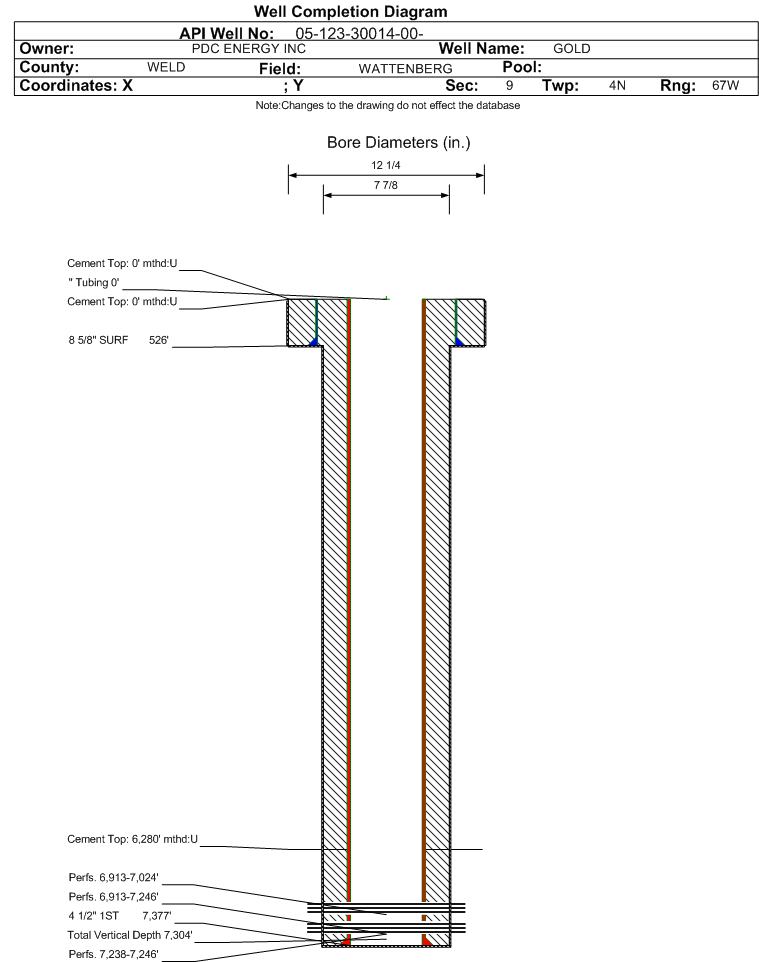

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 526 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 526 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7377 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 845, Top: 0 ft., Bottom: 7377 ft., Determination Method: VISU
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6908 ft.NN
FORT HAYS7214 ft.NN
CODELL7235 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/31/2009                Interval Top: 7238 ft.    Interval Bottom: 7246 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/5/2009
Treatment Summary:FRACD WITH 643 BBLS OF VISTAR 20# PAD, 1891 BBLS OF VISTAR 20# FLUID SYSTEM, 217360 LBS OF 20/40 WHITE SAND AND 8180 LBS OF SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7238 ft.# Of Holes:24
Interval Bottom:7246 ft.Hole Size:0.34 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 6/1/2024                  Interval Top: 6913 ft.    Interval Bottom: 7246 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/5/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 43
BTU_GAS 1240
CALC_BBLS_OIL 43
CALC_GOR 4209
CALC_MCF_GAS 181
CASING_PRESS 1933
GRAVITY_OIL 48
MCF_GAS 181
Perforation Data:
Interval Top:6913 ft.# Of Holes:92
Interval Bottom:7246 ft.Hole Size:0.39 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/31/2009                Interval Top: 6913 ft.    Interval Bottom: 7024 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/5/2009
Treatment Summary:PERFD NIO A 6913-6915 (4 HOLES), NIO B 7018-7024 (18 HOLES). FRACD WITH 24 BBLS 15% HCL, 1523 BBLS SLICKWATER PAD, 202 BBLS VISTAR 18# PAD, 2455 BBLS VISTAR 18# FLUID SYSTEM, 238480 LBS 30/50 WHITE SAND AND 12040 LBS SB EXCEL 20/40 RESIN COATED PROPPANT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6913 ft.# Of Holes:22
Interval Bottom:7024 ft.Hole Size:0.39 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
03/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
05/31/2024
Low ProducingYProduction Period
07/2024 - 06/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
