Wellbore #00 Wellbore Classification: OW Status: PA - 3/25/2020 Measured TD: 7585 ft. Vertical TD: 7364 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 3/25/2020 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090196 | Expiration Date: | 2/3/2010 | | Proposed Top PZ Location: | Sec:14 Twp: 5N 67W | Footage: 1341 FNL 2499 FWL | | Bottom Hole Location: | Sec:14 Twp: 5N 67W | Footage: 1341 FNL 2499 FWL | | Proposed Depth/Form: | 8110 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 320, Drill Unit: N2 |
| | |

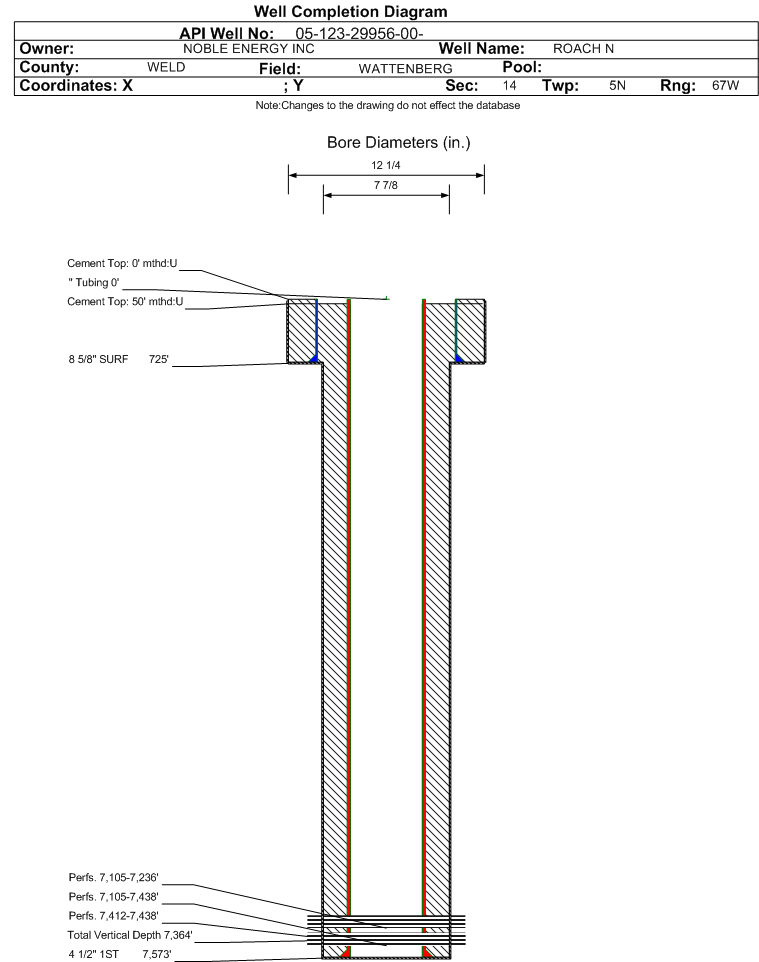

| Wellbore Completed | | Completion Date: | 3/16/2009 | | Spud Date: | 3/11/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 7585 ft. | Measured PB depth: | 7554 ft. | | True Vertical TD: | 7364 ft. | True Vertical PB depth: | 7335 ft. | | Top PZ Location: | Sec:14 Twp: 5N 67W | Footage: 1341 FNL 2499 FWL | | Bottom Hole Location: | Sec:14 Twp: 5N 67W | Footage: 1341 FNL 2499 FWL | | Log Types: | CBL/GR/CCL, CDL/CNL/ML, DIL/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 725 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 324, Top: 0 ft., Bottom: 725 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7573 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1070, Top: 187 ft., Bottom: 7573 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 7076 ft. | | N | N | | FORT HAYS | 7391 ft. | | N | N | | CODELL | 7413 ft. | | N | N | | GREENHORN | 7503 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 1/17/2019 Interval Top: 7412 ft. Interval Bottom: 7438 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 12/31/2009 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 4/13/2019 | Treatment End Date: | N/A | | Treatment Summary: | CIFTP WAS REMOVED -4/9/2010. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 12/30/2009 | | Treatment Summary: | FRAC'D CODELL W/134484 GALS OF SILVERSTIM AND SLICK WATER WITH 270,021#'S OF OTTAWA SAND. CODELL IS FLOWING THROUGH A CAST IRON FLOW THROUGH PLUG. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7412 ft. | # Of Holes: | 104 | | Interval Bottom: | 7438 ft. | Hole Size: | 0.41 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 7/16/2020 Interval Top: 7105 ft. Interval Bottom: 7438 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 12/31/2009 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2009 | | Treatment Summary: | COMMINGLE CODELL/NIOBRARA |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 75 | | BBLS_OIL | 122 | | BTU_GAS | 1296 | | CALC_BBLS_H2O | 75 | | CALC_BBLS_OIL | 122 | | CALC_GOR | 3614 | | CALC_MCF_GAS | 441 | | CASING_PRESS | 1300 | | GRAVITY_OIL | 54 | | MCF_GAS | 441 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 7105 ft. | # Of Holes: | 152 | | Interval Bottom: | 7438 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 1/17/2019 Interval Top: 7105 ft. Interval Bottom: 7236 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 12/31/2009 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/30/2009 | | Treatment Summary: | FRAC'D NIOBRARA W/174426 GALS OF SILVERSTIM AND SLICK WATER WITH 245,246#'S OF OTTAWA SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7105 ft. | # Of Holes: | 48 | | Interval Bottom: | 7236 ft. | Hole Size: | 0.73 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/16/2020 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
