COGIS - WELL SCOUT CARD

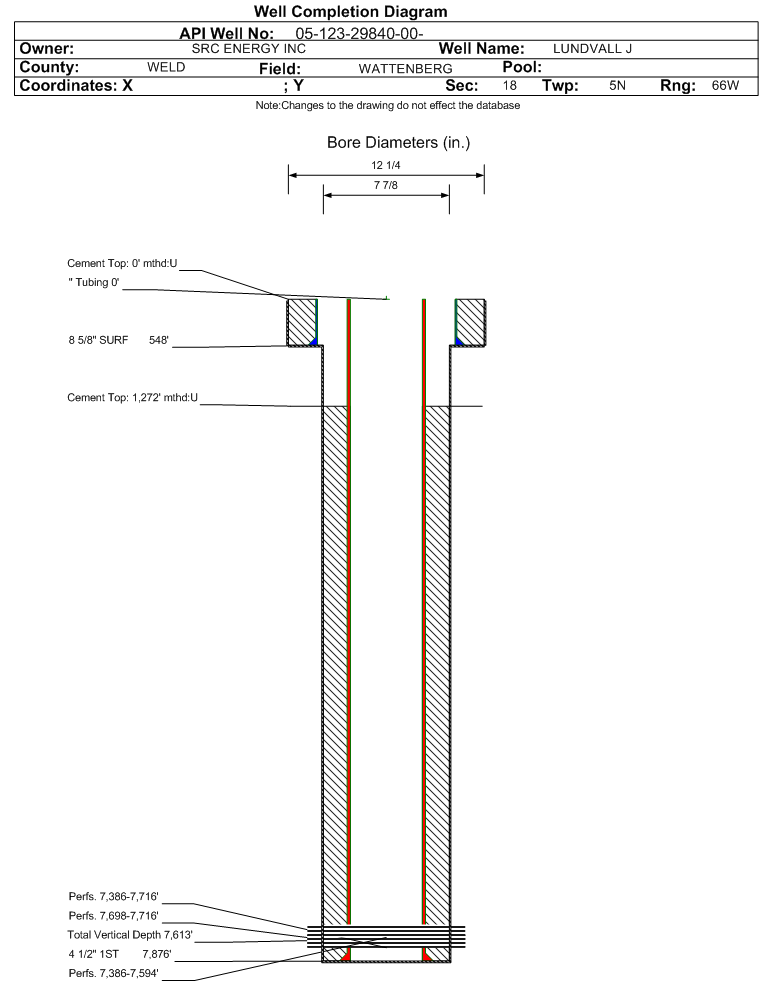

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29840		Well Classification: OW Status: SI - 3/1/2023
Well Name/No:LUNDVALL J #17-32D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2023
FacilityID:300728LocationID:333155
Municipality/County:GREELEY / WELD #123Location:SWNE 18 5N66W 6
Field:WATTENBERG - #90750Elevation:4939 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2178FNL  1812 FELLat/Long: 40.400807 / -104.819760Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.400813 / -104.819769Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 3/1/2023             Measured TD: 7894 ft.    Vertical TD: 7613 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 3/1/2023
Wellbore PermitDIRECTIONAL
Permit #:20087848 Expiration Date:1/11/2010
Proposed Top PZ Location:Sec:18 Twp: 5N 66W Footage: 2553 FNL  66 FEL
Bottom Hole Location:Sec:18 Twp: 5N 66W Footage: 2553 FNL  66 FEL
Proposed Depth/Form:7840 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:7/5/2009
Spud Date:6/28/2009Spud Date Is:ACTUAL
Measured TD:7894 ft.Measured PB depth:7838 ft.
True Vertical TD:7613 ft.True Vertical PB depth:7557 ft.
Top PZ Location:Sec:18 Twp: 5N 66WFootage: 2553 FNL  66 FEL
Bottom Hole Location:Sec:18 Twp: 5N 66WFootage: 2553 FNL  66 FEL
Log Types:CBL/GR/CCL, CDL/CNL/ML, DIL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 548 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 223, Top: 0 ft., Bottom: 559 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7876 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 920, Top: 1910 ft., Bottom: 7894 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7358 ft.NN
FORT HAYS7674 ft.NN
CODELL7696 ft.NN
GREENHORN7781 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 8/28/2009                 Interval Top: 7698 ft.    Interval Bottom: 7716 ft.

 Completed Information for Formation CODELL
1st Production Date:8/18/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/12/2009
Treatment Summary:FRACD CODELL W/ 135114 GALS OF SILVERSTIM AND SLICK WATER WITH 270660 #S OF OTTAWA SAND. CODELL IS PRODUCING THROUGH A COMPOSITE FLOW THROUGH PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7698 ft.# Of Holes:72
Interval Bottom:7716 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 3/1/2023                  Interval Top: 7386 ft.    Interval Bottom: 7716 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/28/2009
Treatment Summary:COMMINGLE CODELL/NIOBRARA
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/28/2009Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 48
BBLS_OIL 24
BTU_GAS 1260
CALC_BBLS_H2O 48
CALC_BBLS_OIL 24
CALC_GOR 5958
CALC_MCF_GAS 143
CASING_PRESS 541
GRAVITY_OIL 53
MCF_GAS 143
Perforation Data:
Interval Top:7386 ft.# Of Holes:144
Interval Bottom:7716 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 8/28/2009                 Interval Top: 7386 ft.    Interval Bottom: 7594 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/18/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/12/2009
Treatment Summary:FRACD NIOBRARA W/ 248850 GALS OF SILVERSTIM AND SLICK WATER WITH 351480 #S OD OTTAWA SAND. NIOBRARA IS PRODUCING THROUGH A COMPOSITE FLOW THROUGH PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7386 ft.# Of Holes:72
Interval Bottom:7594 ft.Hole Size:0.73 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY12/18/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
02/28/2023
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
