COGIS - WELL SCOUT CARD

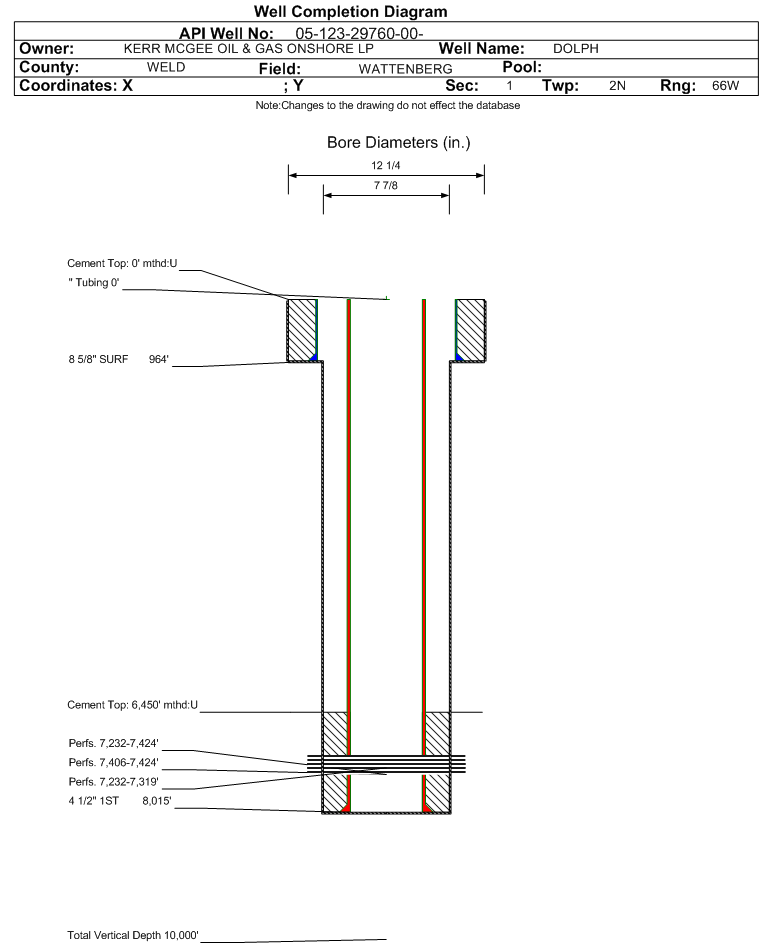

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29760		Well Classification: OW Status: SI - 3/1/2022
Well Name/No:DOLPH #15-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2022
FacilityID:300552LocationID:336510
County:WELD #123Location:SWSE 1 2N66W 6
Field:WATTENBERG - #90750Elevation:4987 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  1980 FELLat/Long: 40.161970 / -104.722930Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.161976 / -104.722945Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 3/1/2022             Measured TD: 8030 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 3/1/2022
Wellbore Permit
Permit #:20087656 Expiration Date:12/29/2009
Proposed Depth/Form:7990 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W2SE
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 945 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 662, Top: 0 ft., Bottom: 945 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7990 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 7990 ft.
Wellbore Completed
Completion Date:11/27/2009
Spud Date:11/24/2009Spud Date Is:ACTUAL
Measured TD:8030 ft.Measured PB depth:7980 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DGB-SP-GR, CD-CN-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 964 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 964 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8015 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6450 ft., Bottom: 8015 ft., Determination Method: CBL
Additional Cement:String Type: SURF , Top: 550 ft., Depth: 5083 ft., Bottom: 5082 ft., Sacks: 620, Method: DV TOOL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4033 ft.4285 ft.
SUSSEX4434 ft.4703 ft.
NIOBRARA7176 ft.
FORT HAYS7381 ft.
CODELL7406 ft.
J SAND7842 ft.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 10/14/2010                Interval Top: 7406 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation CODELL
1st Production Date:2/1/2010Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2010
Treatment Summary:FRAC CODL W/204,967 GAL SW & 150,520# 40/70 SAND & 4,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7406 ft.# Of Holes:54
Interval Bottom:7424 ft.Hole Size:0.4 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 3/1/2022                  Interval Top: 7232 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/1/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2010
Treatment Summary:NBRR PERF 7232-7319 HOLES 60 SIZE 0.42 CODL PERF 7406-7424 HOLES 54 SIZE 0.40.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/25/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1301
CALC_BBLS_OIL 41
CALC_GOR 5049
CALC_MCF_GAS 207
CASING_PRESS 500
GRAVITY_OIL 51
Perforation Data:
Interval Top:7232 ft.# Of Holes:114
Interval Bottom:7424 ft.Hole Size:0.625 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 10/14/2010                Interval Top: 7232 ft.    Interval Bottom: 7319 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/1/2010Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/7/2010
Treatment Summary:FRAC NBRR W/500 GAL 15% HC1 & 243,000 GAL SW & 200,500# 40/70 SAND& 4,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7232 ft.# Of Holes:60
Interval Bottom:7319 ft.Hole Size:0.42 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
12/31/2021
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
