COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29759
Well Classification: OW Status: PA - 2/10/2022
Well Name/No:HEINZE #31-24
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:3430477
Facility Status:PAStatus Date2/10/2022
FacilityID:300551LocationID:302765
County:WELD #123Location:SESW 31 7N63W 6
Field:WATTENBERG - #90750Elevation:4743 ft.
Planned Location:689FSL  1958 FWLLat/Long: 40.524640 / -104.481780Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.524640 / -104.481780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 2/10/2022             Measured TD: 7096 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 2/10/2022
Wellbore Permit
Permit #: Expiration Date:5/11/2012
Proposed Depth/Form:7100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: E/2, SW/4

Wellbore Completed
Completion Date:9/14/2010
Spud Date:9/11/2010Spud Date Is:ACTUAL
Measured TD:7096 ft.Measured PB depth:7072 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP. DENSITY NEUTRON GR; DUAL INDUCTION LOG GR; CEMENT BOND-VD

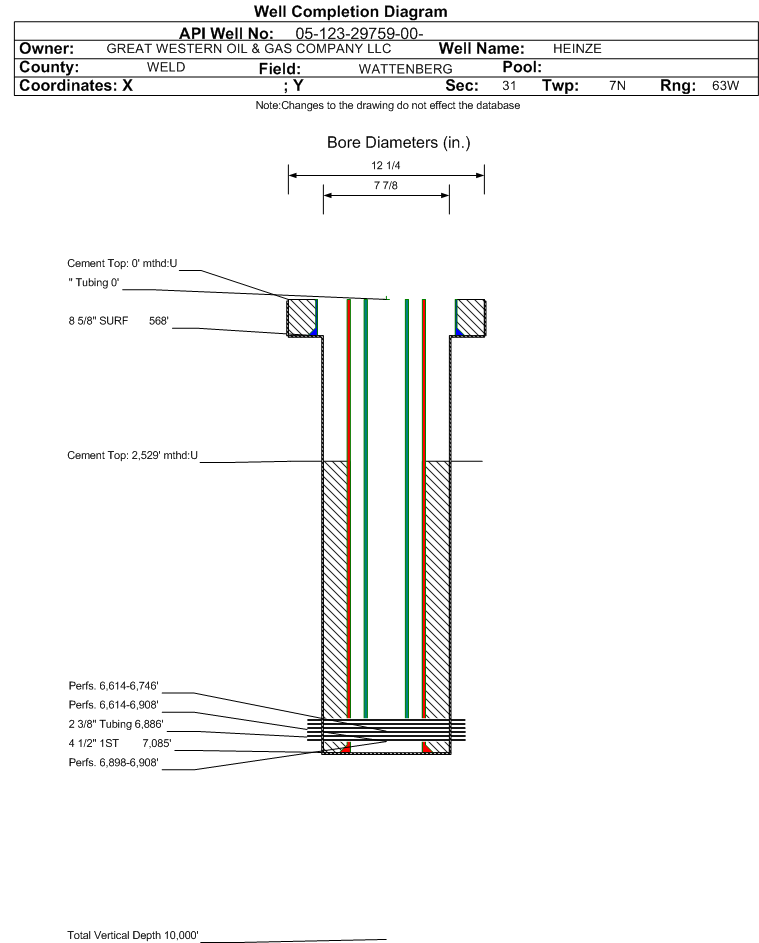

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 568 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 0 ft., Bottom: 568 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7085 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 505, Top: 2529 ft., Bottom: 7085 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 751 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 80 ft., Bottom: 751 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2890 ft.
PARKMAN3695 ft.
SUSSEX4050 ft.
SHANNON4436 ft.
NIOBRARA6609 ft.
FORT HAYS6872 ft.
CODELL6895 ft.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 10/7/2010                 Interval Top: 6898 ft.    Interval Bottom: 6908 ft.

 Completed Information for Formation CODELL
1st Production Date:9/30/2010Choke Size:
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/28/2010
Treatment Summary:FRAC CODELL WITH 4128 BBLS SLICKWATER AND 115,000# 30/50 SAND SPEARHEAD 500 BBLS 7% KCL AHEAD OF FRAC TREAT AT AN AVERAGE OF 4775 PSI 62.5 BPM MAX PRESSURE 5609 PSI MAX RATE 63.1 BPM
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/7/2010Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 38
BTU_GAS 1242
CALC_GOR 1000
CASING_PRESS 500
GRAVITY_OIL 50
MCF_GAS 38
Perforation Data:
Interval Top:6898 ft.# Of Holes:40
Interval Bottom:6908 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 2/10/2022                 Interval Top: 6614 ft.    Interval Bottom: 6908 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/9/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6886 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/20/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 28
BTU_GAS 1242
CALC_GOR 1143
CASING_PRESS 1100
GRAVITY_OIL 46
MCF_GAS 32
TUBING_PRESS 900
Perforation Data:
Interval Top:6614 ft.# Of Holes:224
Interval Bottom:6908 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 11/15/2010                Interval Top: 6614 ft.    Interval Bottom: 6746 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/4/2010Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/3/2010
Treatment Summary:FRAC NIOBRARA WITH 4376 BBLS DYNAFLOW 2 WR FLUID; 238000# 30/50 SAND; AND 12000 # 20/40 RESIN COATED SAND SPEARHEAD 24 BBLS 15% ACID AHEAD OF FRAC AND 500 BBLS 7% KCL IN PRE-PAD. TREAT AT AN AVERAGE OF 4194 PSI 59.8 BPM MAX PRESSURE 5650 PSI MAX RATE 60.5 BPM
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/15/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 12
BTU_GAS 1242
CALC_GOR 917
CASING_PRESS 225
GRAVITY_OIL 43
MCF_GAS 11
Perforation Data:
Interval Top:6614 ft.# Of Holes:184
Interval Bottom:6746 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/10/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
