Wellbore #00 Wellbore Classification: OW Status: SI - 5/1/2024 Measured TD: 7811 ft. Vertical TD: 7683 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 5/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 11/12/2012 | | Proposed Top PZ Location: | Sec:24 Twp: 5N 67W | Footage: 75 FSL 1314 FWL | | Bottom Hole Location: | Sec:24 Twp: 5N 67W | Footage: 75 FSL 1314 FWL | | Proposed Depth/Form: | 7804 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Formation And Spacing: | Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 530 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 210, Top: 0 ft., Bottom: 530 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7804 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 740, Top: , Bottom: 7804 ft. |
| | |

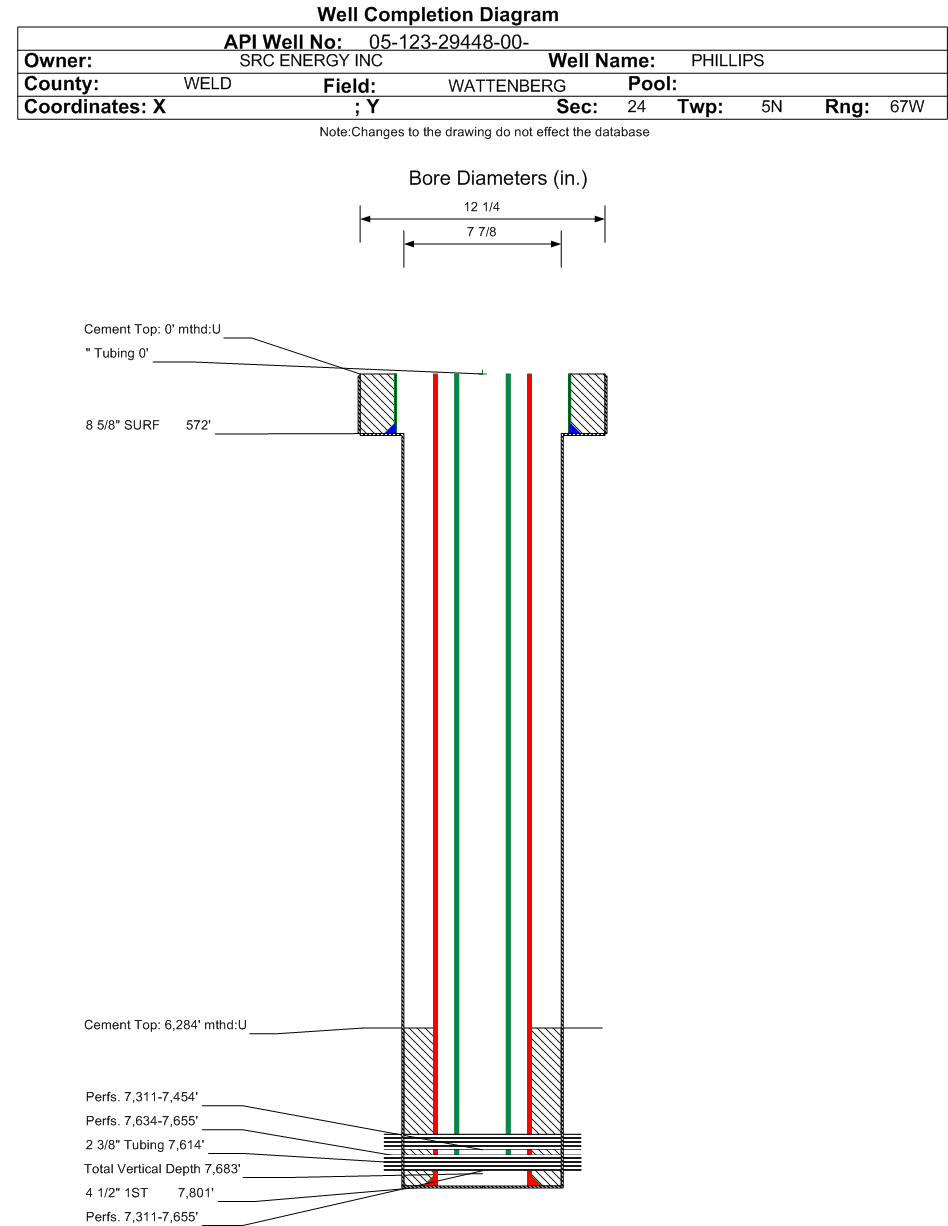

| Wellbore Completed | | Completion Date: | 6/24/2011 | | Spud Date: | 6/21/2011 | Spud Date Is: | ACTUAL | | Measured TD: | 7811 ft. | Measured PB depth: | 7758 ft. | | True Vertical TD: | 7683 ft. | True Vertical PB depth: | 7630 ft. | | Top PZ Location: | Sec:24 Twp: 5N 67W | Footage: 81 FSL 1280 FWL | | Bottom Hole Location: | Sec:24 Twp: 5N 67W | Footage: 80 FSL 1346 FWL | | Log Types: | CBL, DIL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 572 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 214, Top: 0 ft., Bottom: 572 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7801 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 720, Top: 6284 ft., Bottom: 7801 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PIERRE | 2819 ft. | | | | | PARKMAN | 3844 ft. | | | | | SUSSEX | 4581 ft. | | | | | SHANNON | 5007 ft. | | | | | NIOBRARA | 7291 ft. | | | | | FORT HAYS | 7611 ft. | | | | | CODELL | 7633 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 8/21/2013 Interval Top: 7634 ft. Interval Bottom: 7655 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/18/2011 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/17/2011 | | Treatment Summary: | FRAC'D W/ 125872 GAL VISTAR AND SLICK WATER, 1000 GAL 15% HCL AND 238614# OTTAWA SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7634 ft. | # Of Holes: | 84 | | Interval Bottom: | 7655 ft. | Hole Size: | 0 in. |
|
Formation NB-CD Formation Classification: OW Status: SI - 5/1/2024 Interval Top: 7311 ft. Interval Bottom: 7655 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/18/2011 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/18/2011 | | Treatment Summary: | COMMINGLE NB & CD |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7614 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/18/2011 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 50 | | BBLS_OIL | 58 | | BTU_GAS | 1260 | | CALC_BBLS_H2O | 50 | | CALC_BBLS_OIL | 58 | | CALC_GOR | 4155 | | CALC_MCF_GAS | 241 | | CASING_PRESS | 320 | | GRAVITY_OIL | 51 | | MCF_GAS | 241 |
| | Perforation Data: | | Interval Top: | 7311 ft. | # Of Holes: | 132 | | Interval Bottom: | 7655 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: CM - 8/21/2013 Interval Top: 7311 ft. Interval Bottom: 7454 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/18/2011 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/17/2011 | | Treatment Summary: | PERF'D NIO A 7311-7323', NIO B 7442-7454'. FRAC'D W/ 166821 GAL VISTAR AND SLICK WATER AND 255842# OTTAWA SAND |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7311 ft. | # Of Holes: | 48 | | Interval Bottom: | 7454 ft. | Hole Size: | 0.71 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 01/05/2026 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
08/27/2025 |
| Defined Inactive (SI ) | Y | Defined Inactive
04/30/2024 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
