COGIS - WELL SCOUT CARD

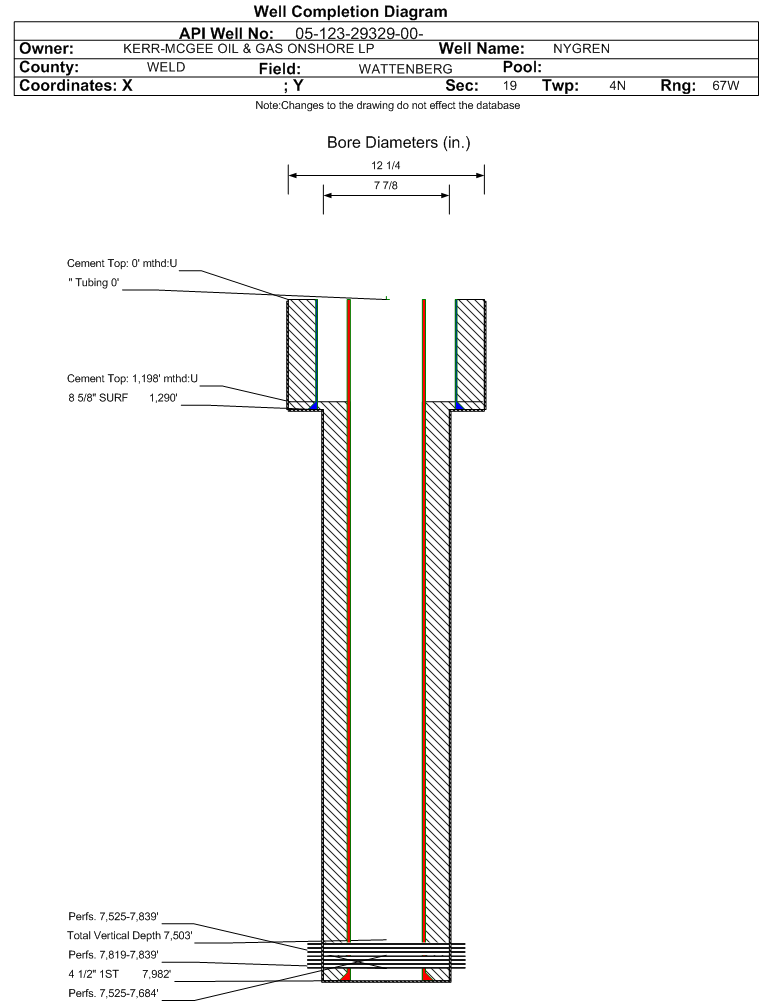

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29329		Well Classification: OW Status: SI - 1/1/2025
Well Name/No:NYGREN #23-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:299337LocationID:332793
County:WELD #123Location:SWNW 19 4N67W 6
Field:WATTENBERG - #90750Elevation:4958 ft.
Planned Location:2122FNL  850 FWLLat/Long: 40.300630 / -104.938680Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.300641 / -104.938692Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 1/1/2025             Measured TD: 7990 ft.    Vertical TD: 7503 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 1/1/2025
Wellbore PermitDIRECTIONAL
Permit #:20085607 Expiration Date:10/27/2009
Proposed Top PZ Location:Sec:19 Twp: 4N 67W Footage: 1360 FSL  2491 FWL
Bottom Hole Location:Sec:19 Twp: 4N 67W Footage: 1360 FSL  2491 FWL
Proposed Depth/Form:8153 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:5/15/2009
Spud Date:5/10/2009Spud Date Is:ACTUAL
Measured TD:7990 ft.Measured PB depth:7946 ft.
True Vertical TD:7503 ft.True Vertical PB depth:7459 ft.
Top PZ Location:Sec:19 Twp: 4N 67WFootage: 1360 FSL  2491 FWL
Bottom Hole Location:Sec:19 Twp: 4N 67WFootage: 1360 FSL  2491 FWL
Log Types:P/E AILC-CNLD-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1290 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 810, Top: 0 ft., Bottom: 1290 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7982 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 1050 ft., Bottom: 7982 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2505 ft.2830 ft.NN
PARKMAN3875 ft.4174 ft.NN
SUSSEX4420 ft.4650 ft.NN
SHANNON5026 ft.5175 ft.NN
NIOBRARA7504 ft.NN
FORT HAYS7796 ft.NN
CODELL7817 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 9/27/2009                 Interval Top: 7819 ft.    Interval Bottom: 7839 ft.

 Completed Information for Formation CODELL
1st Production Date:8/21/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/12/2009
Treatment Summary:205,548 GALS FLUID & 151,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7819 ft.# Of Holes:60
Interval Bottom:7839 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 11/1/2024                 Interval Top: 7525 ft.    Interval Bottom: 7839 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/21/2009Choke Size:0.313 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/15/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/27/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1279
CALC_BBLS_H2O 0
CALC_BBLS_OIL 24
CALC_GOR 1170
CALC_MCF_GAS 41
CASING_PRESS 250
GRAVITY_OIL 50
Perforation Data:
Interval Top:7525 ft.# Of Holes:114
Interval Bottom:7839 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 9/27/2009                 Interval Top: 7525 ft.    Interval Bottom: 7684 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/21/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/2/2009
Treatment Summary:500 GALS ACID & 249,438 GLAS FLUID & 199,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7525 ft.# Of Holes:54
Interval Bottom:7684 ft.Hole Size:0.41 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3
GOR
GOR DeterminationMCFE
Average BOE per Day0.003
Average MCFE per Day0.008

 Federal Financial Assurance  i

 Tribal Well  i No
