COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29140		Well Classification: GW Status: SI - 10/1/2021
Well Name/No:KAWAKAMI #4-2-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2021
FacilityID:298799LocationID:336343
County:WELD #123Location:NWNE 35 3N67W 6
Field:WATTENBERG - #90750Elevation:4816 ft.
Basin:DENVER (DJ) BASIN
Planned Location:510FNL  1937 FELLat/Long: 40.187580 / -104.855720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.187568 / -104.855720Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

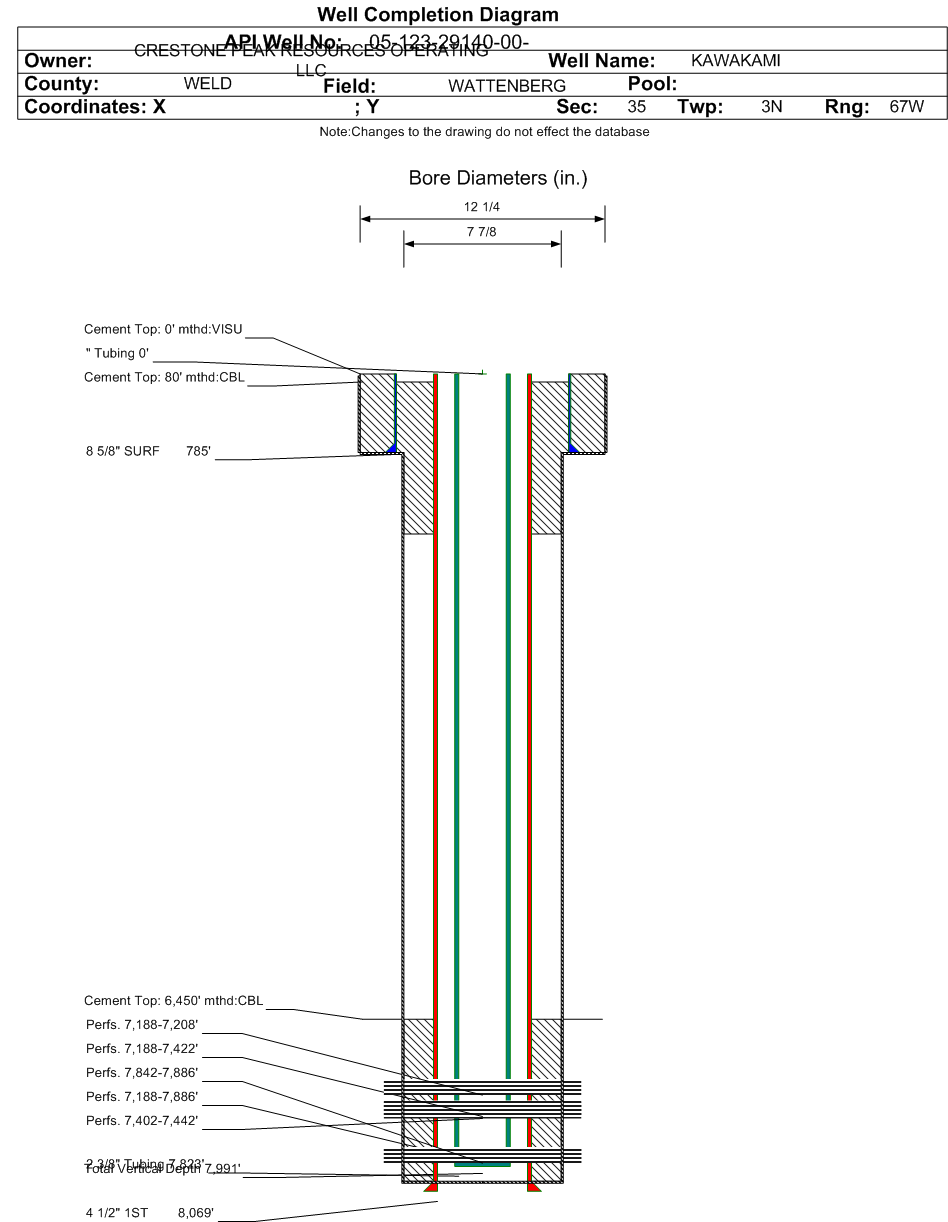

Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2021             Measured TD: 8075 ft.    Vertical TD: 7991 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20084940 Expiration Date:10/6/2009
Proposed Top PZ Location:Sec:35 Twp: 3N 67W Footage: 1313 FNL  2479 FEL
Bottom Hole Location:Sec:35 Twp: 3N 67W Footage: 1313 FNL  2479 FEL
Proposed Depth/Form:7990 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407, 407-6, Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:3/3/2009
Spud Date:2/26/2009Spud Date Is:ACTUAL
Measured TD:8075 ft.Measured PB depth:8010 ft.
True Vertical TD:7991 ft.True Vertical PB depth:7926 ft.
Top PZ Location:Sec:35 Twp: 3N 67WFootage: 1313 FNL  2479 FEL
Bottom Hole Location:Sec:35 Twp: 3N 67WFootage: 1313 FNL  2479 FEL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 785 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 785 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8069 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6450 ft., Bottom: 8069 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1600 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 287, Top: 80 ft., Bottom: 1600 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7174 ft.NN
CODELL7400 ft.NN
J SAND7842 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 10/1/2021                 Interval Top: 7842 ft.    Interval Bottom: 7886 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/12/2009
Treatment Summary:JSND COMPLETION. FRAC'D THE JSND WITH 154518 GAL 20# VISTAR HYBRID CROSS LINKED GEL CONTAINING 250980# SAND. 3/12/09
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7842 ft.# Of Holes:76
Interval Bottom:7886 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/14/2019                 Interval Top: 7402 ft.    Interval Bottom: 7442 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7402 ft.# Of Holes:80
Interval Bottom:7442 ft.Hole Size:0.4117647 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 4/4/2009                  Interval Top: 7188 ft.    Interval Bottom: 7886 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/3/2009
Treatment Summary:JSND-NBRR-CODL COMMINGLE. RELEASED CFP @ 7290'. SET RBP @ 7050'. 3-15-09. RELEASE RBP @ 7050'. 3/17/09 SET CBP @ 7040'. 3/18/09. RELEASED CBP @ 7040' TO COMMINGLE THE JSND-CDL. 3/19/09.
Tubing Size:2.375 in.Tubing Setting Depth:7823 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/4/2009Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 51
BBLS_OIL 50
BTU_GAS 1236
CALC_BBLS_H2O 51
CALC_BBLS_OIL 50
CALC_GOR 5140
CALC_MCF_GAS 257
CASING_PRESS 1202
GRAVITY_OIL 52
MCF_GAS 257
TUBING_PRESS 513
Perforation Data:
Interval Top:7188 ft.# Of Holes:156
Interval Bottom:7886 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 10/1/2021                 Interval Top: 7188 ft.    Interval Bottom: 7422 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/12/2009
Treatment Summary:NBRR-CODL RECOMPLETION. SET CFP @ 7520'. 3/12/09. FRAC'D THE CODELL WITH 109494 GAL 24# VISTAR HYBRID 250780# 20/40 SAND. 3/12/09
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/2009Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 45
BBLS_OIL 80
BTU_GAS 1207
CALC_BBLS_H2O 45
CALC_BBLS_OIL 80
CALC_GOR 5588
CALC_MCF_GAS 447
GRAVITY_OIL 54
MCF_GAS 447
Perforation Data:
Interval Top:7188 ft.# Of Holes:120
Interval Bottom:7422 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/14/2019                 Interval Top: 7188 ft.    Interval Bottom: 7208 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7188 ft.# Of Holes:40
Interval Bottom:7208 ft.Hole Size:0.375 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
09/30/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
