COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29127		Well Classification: GW Status: PA - 7/20/2018
Well Name/No:GERRITY H #33-32D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/20/2018
FacilityID:298755LocationID:336074
County:WELD #123Location:SESE 32 3N65W 6
Field:WATTENBERG - #90750Elevation:4873 ft.
Planned Location:876FNL  679 FWLLat/Long: 40.177066 / -104.680461Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.177063 / -104.680463Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/20/2018             Measured TD: 7715 ft.    Vertical TD: 7372 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/20/2018
Wellbore PermitDIRECTIONAL
Permit #:20083787 Expiration Date:10/1/2009
Proposed Top PZ Location:Sec:33 Twp: 3N 65W Footage: 2458 FSL  189 FWL
Bottom Hole Location:Sec:33 Twp: 3N 65W Footage: 2458 FSL  189 FWL
Proposed Depth/Form:7670 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:12/27/2008
Spud Date:12/23/2008Spud Date Is:ACTUAL
Measured TD:7715 ft.Measured PB depth:7692 ft.
True Vertical TD:7372 ft.True Vertical PB depth:7349 ft.
Top PZ Location:Sec:33 Twp: 3N 65WFootage: 2458 FSL  189 FWL
Bottom Hole Location:Sec:33 Twp: 3N 65WFootage: 2458 FSL  189 FWL
Log Types:GR/CCL/CBL, CDL/CNL/ML, DIL/GR

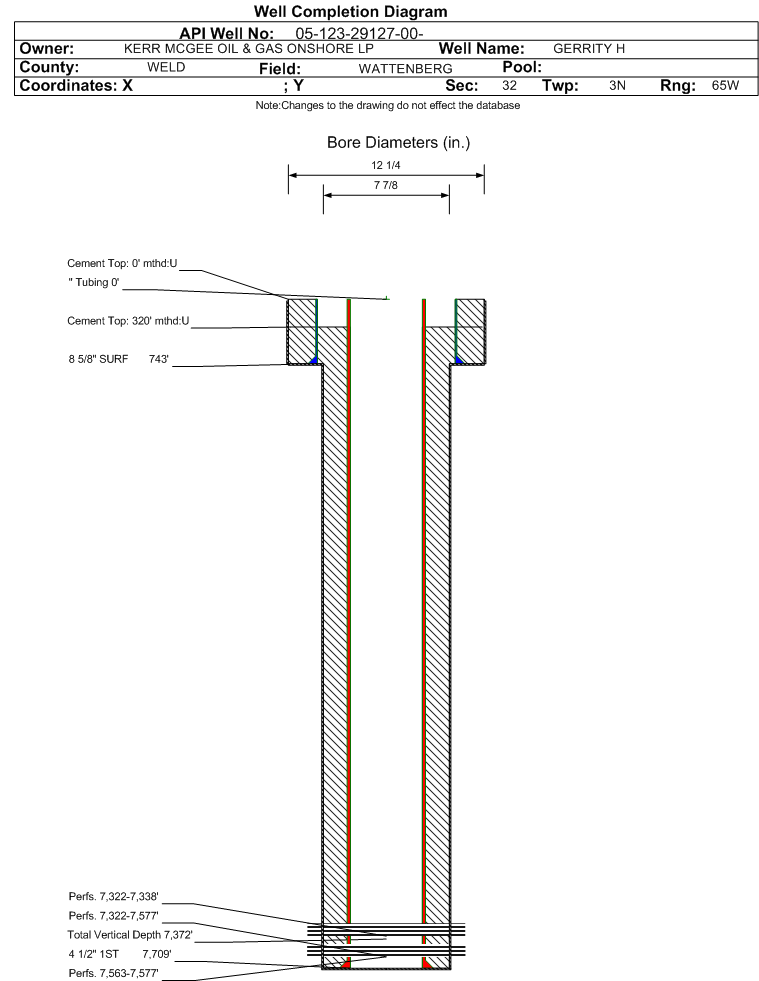

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 743 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 267, Top: 0 ft., Bottom: 743 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7709 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 320 ft., Bottom: 7709 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4176 ft.NN
SUSSEX4778 ft.NN
SHANNON5586 ft.NN
TEEPEE BUTTES6547 ft.NN
NIOBRARA7246 ft.NN
FORT HAYS7538 ft.NN
CODELL7562 ft.NN
GREENHORN7631 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/20/2009                 Interval Top: 7563 ft.    Interval Bottom: 7577 ft.

 Completed Information for Formation CODELL
1st Production Date:2/5/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2009
Treatment Summary:FRAC'D CODL W/ 133,476 GALS SLIVERSTIM, SLICKWATER, & 15% HCI W/ 269,900# OTTAWA SAND. CODL PRODUCING THROUGH FLOW PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7563 ft.# Of Holes:56
Interval Bottom:7577 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/20/2018                 Interval Top: 7322 ft.    Interval Bottom: 7577 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/27/2008
Treatment Summary:COMMINGLE CODELL & NIOBRARA.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/20/2009Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 33
BTU_GAS 1375
CALC_BBLS_H2O 5
CALC_BBLS_OIL 33
CALC_GOR 6000
CALC_MCF_GAS 198
CASING_PRESS 340
GRAVITY_OIL 54
MCF_GAS 198
Perforation Data:
Interval Top:7322 ft.# Of Holes:88
Interval Bottom:7577 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/20/2009                 Interval Top: 7322 ft.    Interval Bottom: 7338 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/5/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2009
Treatment Summary:FRAC'D NBRR W/ 175,182 GALS SLICKWATER & SILVERSTIM W/ 250,740# OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7322 ft.# Of Holes:32
Interval Bottom:7338 ft.Hole Size:0.73 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/20/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
