Wellbore #00 Wellbore Classification: OW Status: AB - 8/8/2023 Measured TD: 7939 ft. Vertical TD: 7843 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 8/8/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091579 | Expiration Date: | 5/14/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2575 FNL 1320 FWL | | Bottom Hole Location: | Sec:5 Twp: 5N 67W | Footage: 2575 FNL 1320 FWL | | Proposed Depth/Form: | 7943 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA |
| | |

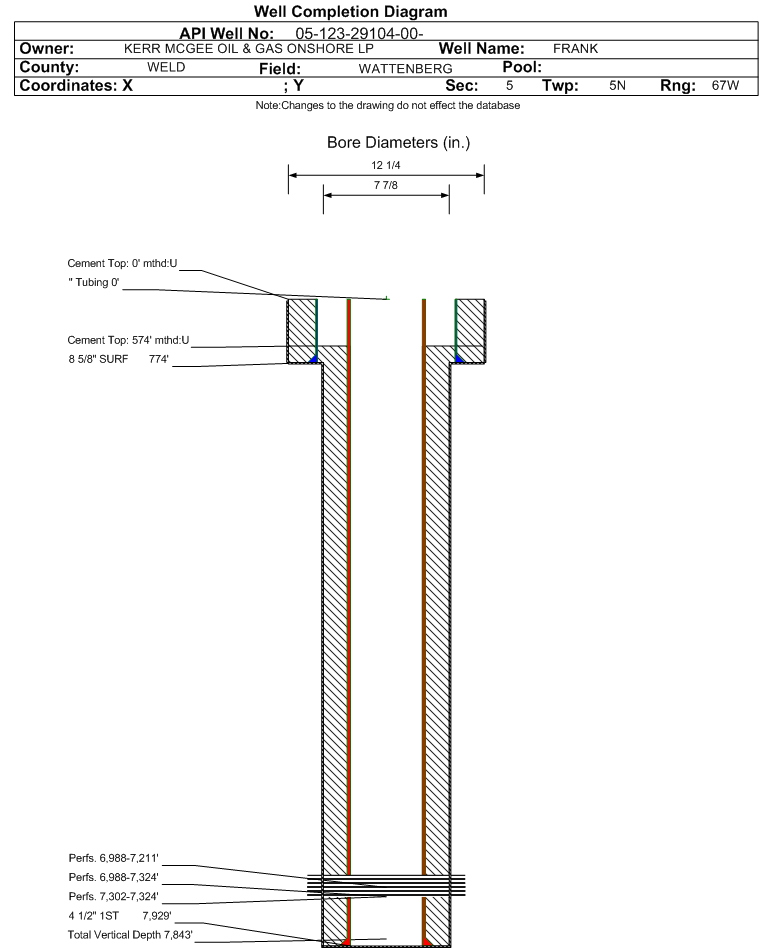

| Wellbore Completed | | Completion Date: | 2/25/2010 | | Spud Date: | 2/21/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 7939 ft. | Measured PB depth: | 7891 ft. | | True Vertical TD: | 7843 ft. | True Vertical PB depth: | 7795 ft. | | Top PZ Location: | Sec:5 Twp: 5N 67W | Footage: 2552 FNL 1342 FWL | | Bottom Hole Location: | Sec:5 Twp: 5N 67W | Footage: 2552 FNL 1342 FWL | | Log Types: | DI-GL-GR, CD-CN-ML, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 774 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 774 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7929 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 994, Top: 520 ft., Bottom: 7929 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2370 ft. | 2537 ft. | N | N | | PARKMAN | 3550 ft. | 3675 ft. | N | N | | SUSSEX | 4173 ft. | 4377 ft. | N | N | | SHANNON | 4650 ft. | 4749 ft. | N | N | | NIOBRARA | 6988 ft. | | N | N | | FORT HAYS | 7274 ft. | | N | N | | CODELL | 7300 ft. | | N | N | | J SAND | 7765 ft. | | N | N |
Formation CODL Formation Classification: OW Status: CM - 4/12/2010 Interval Top: 7302 ft. Interval Bottom: 7324 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/31/2010 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/10/2010 | | Treatment Summary: | 205,296 GALS FLUID & 150,600 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7302 ft. | # Of Holes: | 66 | | Interval Bottom: | 7324 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 8/8/2023 Interval Top: 6988 ft. Interval Bottom: 7324 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 3/31/2010 | Choke Size: | 0.281 in. | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/11/2010 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/12/2010 | Test Method: | FLOWING | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1295 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 75 | | CALC_GOR | 507 | | CALC_MCF_GAS | 38 | | CASING_PRESS | 180 | | GRAVITY_OIL | 51 |
| | Perforation Data: | | Interval Top: | 6988 ft. | # Of Holes: | 136 | | Interval Bottom: | 7324 ft. | Hole Size: | 0.38 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 4/12/2010 Interval Top: 6988 ft. Interval Bottom: 7211 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/31/2010 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/11/2010 | | Treatment Summary: | 504 GALS ACID & 243,768 GALS FLUID & 200,320 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 6988 ft. | # Of Holes: | 70 | | Interval Bottom: | 7211 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/08/2023 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2030 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
