COGIS - WELL SCOUT CARD

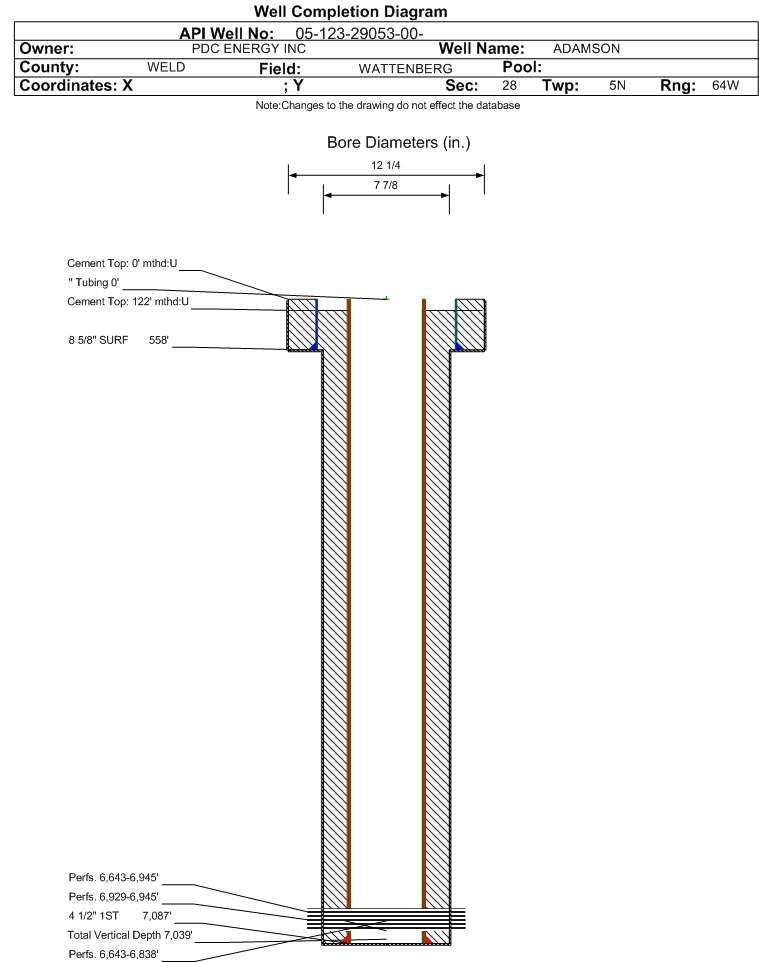

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-29053		Well Classification: OW Status: TA - 6/5/2025
Well Name/No:ADAMSON #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:TAStatus Date6/5/2025
FacilityID:298392LocationID:332809
County:WELD #123Location:NWSW 28 5N64W 6
Field:WATTENBERG - #90750Elevation:4668 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1948FSL  672 FWLLat/Long: 40.368370 / -104.561840Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.368360 / -104.561840Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 6/5/2025             Measured TD: 7126 ft.    Vertical TD: 7039 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 6/5/2025
Wellbore PermitDIRECTIONAL
Permit #:20085100 Expiration Date:9/17/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1320 FSL  1280 FWL
Bottom Hole Location:Sec:28 Twp: 5N 64W Footage: 1320 FSL  1280 FWL
Proposed Depth/Form:7100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407.87 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:11/2/2008
Spud Date:10/27/2008Spud Date Is:ACTUAL
Measured TD:7126 ft.Measured PB depth:
True Vertical TD:7039 ft.True Vertical PB depth:
Top PZ Location:Sec:28 Twp: 5N 64WFootage: 1319 FSL  1288 FWL
Bottom Hole Location:Sec:28 Twp: 5N 64WFootage: 1319 FSL  1288 FWL
Log Types:CD/CN/DIL; CBL GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 558 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 558 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7087 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 695, Top: 143 ft., Bottom: 7087 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3532 ft.NN
SUSSEX4236 ft.NN
NIOBRARA6642 ft.NN
FORT HAYS6906 ft.NN
CODELL6930 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 6/5/2025                  Interval Top: 6929 ft.    Interval Bottom: 6945 ft.

 Completed Information for Formation CODELL
1st Production Date:11/10/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/10/2008
Treatment Summary:11/10/08: 78,000# 20/40 SAND FRAC W/1702 BBLS GELLED FLUID; 12/08/08: 230,040# 20/40 SAND FRAC W/3319 BBLS GELLED FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 10
BTU_GAS 1405
CALC_BBLS_H2O 3
CALC_BBLS_OIL 10
CALC_GOR 7200
CALC_MCF_GAS 72
CASING_PRESS 620
GRAVITY_OIL 54
MCF_GAS 72
TUBING_PRESS 560
Perforation Data:
Interval Top:6929 ft.# Of Holes:96
Interval Bottom:6945 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  TA - 6/5/2025                  Interval Top: 6643 ft.    Interval Bottom: 6945 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/12/2014Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6643 ft.# Of Holes:426
Interval Bottom:6945 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 6/5/2025                  Interval Top: 6643 ft.    Interval Bottom: 6838 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/22/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2011
Treatment Summary:Frac'd Niobrara perforations with 4264 bbls Silverstim plus 240,100# of Ottawa 30/50 sand & 24,060# of Ottawa 40/70 sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 29
BBLS_OIL 35
BTU_GAS 1405
CALC_BBLS_H2O 29
CALC_BBLS_OIL 35
CALC_GOR 4686
CALC_MCF_GAS 164
CASING_PRESS 520
GRAVITY_OIL 55
MCF_GAS 164
TUBING_PRESS 160
Perforation Data:
Interval Top:6643 ft.# Of Holes:330
Interval Bottom:6838 ft.Hole Size:0.4 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY10/16/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
04/01/2025
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
