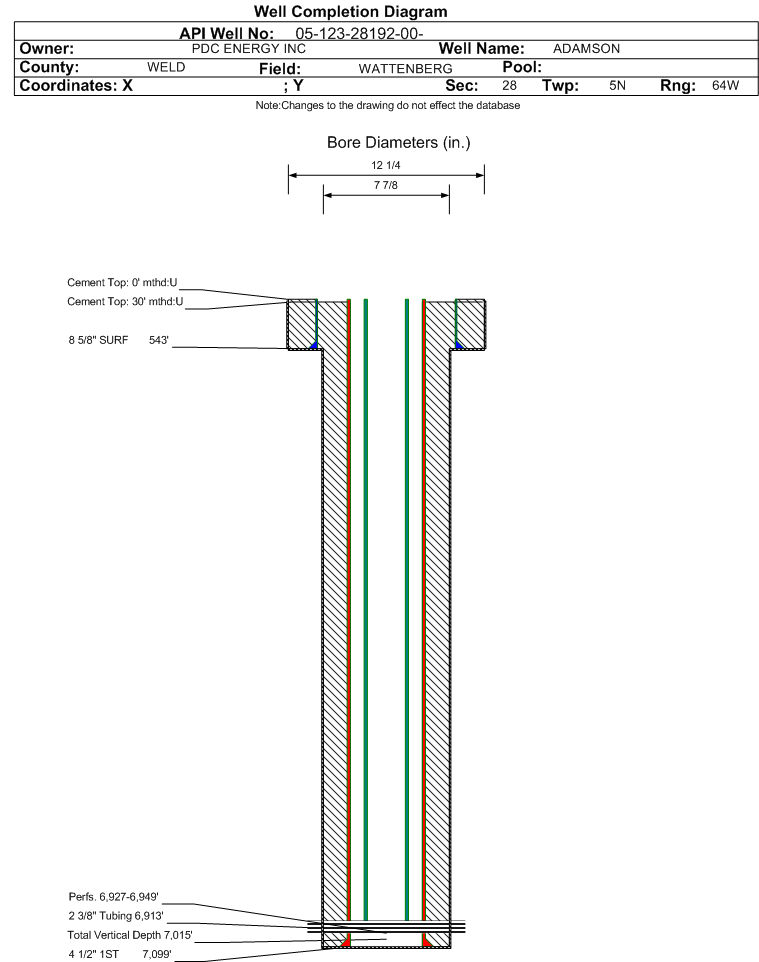

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28192		Well Classification: GW Status: PA - 7/17/2018
Well Name/No:ADAMSON #1-6I
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/17/2018
FacilityID:298148LocationID:332809
County:WELD #123Location:NWSW 28 5N64W 6
Field:WATTENBERG - #90750Elevation:4662 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1991FSL  696 FWLLat/Long: 40.368500 / -104.561740Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.368480 / -104.561670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 4/11/2018             Measured TD: 7103 ft.    Vertical TD: 7015 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/11/2018
Wellbore PermitDIRECTIONAL
Permit #:20085101 Expiration Date:9/4/2009
Proposed Top PZ Location:Sec:28 Twp: 5N 64W Footage: 2627 FSL  1326 FWL
Bottom Hole Location:Sec:28 Twp: 5N 64W Footage: 2627 FSL  1326 FWL
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407.87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:10/26/2008
Spud Date:10/21/2008Spud Date Is:ACTUAL
Measured TD:7103 ft.Measured PB depth:
True Vertical TD:7015 ft.True Vertical PB depth:
Top PZ Location:Sec:28 Twp: 5N 64WFootage: 2627 FSL  1326 FWL
Bottom Hole Location:Sec:28 Twp: 5N 64WFootage: 2627 FSL  1326 FWL
Log Types:CD/CN;DIL; CBL GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 543 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 543 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7099 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 661, Top: 30 ft., Bottom: 7099 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6734 ft.NN
CODELL6927 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  AB - 7/17/2018                 Interval Top: 6927 ft.    Interval Bottom: 6949 ft.

 Completed Information for Formation CODELL
1st Production Date:11/20/2008Choke Size:0.281 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/10/2008
Treatment Summary:250140 20/40 AND 12/20 SAND FRAC W/ 3093 BBLS GELLED AND FRESH WATER
Tubing Size:2.375 in.Tubing Setting Depth:6913 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/2008Test Method:FLOWING
Hours Tested:4Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 7
BBLS_OIL 32
BTU_GAS 1405
CALC_BBLS_H2O 7
CALC_BBLS_OIL 32
CALC_GOR 8063
CALC_MCF_GAS 258
CASING_PRESS 780
GRAVITY_OIL 54
MCF_GAS 258
TUBING_PRESS 240
Perforation Data:
Interval Top:6927 ft.# Of Holes:132
Interval Bottom:6949 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/17/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
