COGIS - WELL SCOUT CARD

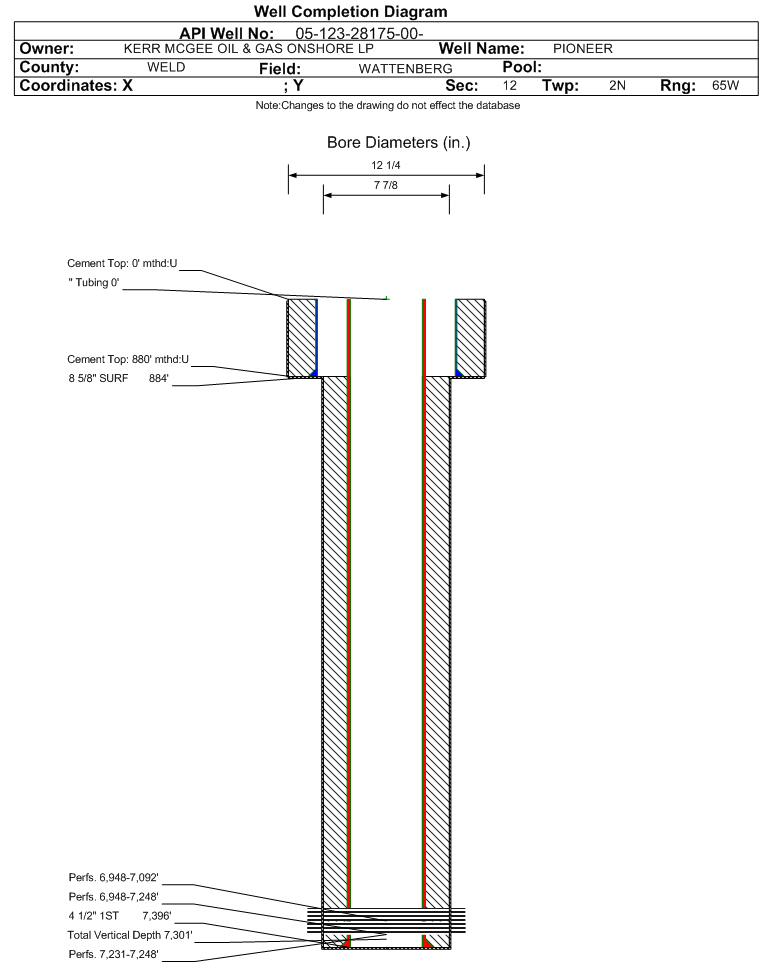

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28175		Well Classification: OW Status: PA - 1/2/2019
Well Name/No:PIONEER #37-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/2/2019
FacilityID:298086LocationID:336089
County:WELD #123Location:SESE 12 2N65W 6
Field:WATTENBERG - #90750Elevation:4889 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1018FSL  1044 FELLat/Long: 40.148370 / -104.606670Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.148356 / -104.606675Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 1/2/2019             Measured TD: 7406 ft.    Vertical TD: 7301 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 1/2/2019
Wellbore PermitDIRECTIONAL
Permit #:20084314 Expiration Date:9/2/2009
Proposed Top PZ Location:Sec:12 Twp: 2N 65W Footage: 73 FSL  1296 FEL
Bottom Hole Location:Sec:12 Twp: 2N 65W Footage: 73 FSL  1296 FEL
Proposed Depth/Form:7404 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: GWA
Wellbore Completed
Completion Date:6/6/2009
Spud Date:6/3/2009Spud Date Is:ACTUAL
Measured TD:7406 ft.Measured PB depth:7360 ft.
True Vertical TD:7301 ft.True Vertical PB depth:7255 ft.
Top PZ Location:Sec:12 Twp: 2N 65WFootage: 73 FSL  1296 FEL
Bottom Hole Location:Sec:12 Twp: 2N 65WFootage: 73 FSL  1296 FEL
Log Types:P/E AICL-CNLD-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 884 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 560, Top: 0 ft., Bottom: 884 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7396 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 880 ft., Bottom: 7396 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4031 ft.4217 ft.NN
SUSSEX4348 ft.4670 ft.NN
NIOBRARA6939 ft.NN
FORT HAYS7207 ft.NN
CODELL7231 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/27/2009                 Interval Top: 7231 ft.    Interval Bottom: 7248 ft.

 Completed Information for Formation CODELL
1st Production Date:8/27/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/22/2009
Treatment Summary:171,585 GALS FLUID & 115,440 LBS 30/50 SAND (NOTE: NO SB EXCEL WAS USED)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7231 ft.# Of Holes:51
Interval Bottom:7248 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/2/2019                  Interval Top: 6948 ft.    Interval Bottom: 7248 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/27/2009Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/6/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/27/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1207
CALC_BBLS_H2O 0
CALC_BBLS_OIL 50
CALC_GOR 1980
CALC_MCF_GAS 99
CASING_PRESS 800
GRAVITY_OIL 51
Perforation Data:
Interval Top:6948 ft.# Of Holes:117
Interval Bottom:7248 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/27/2009                 Interval Top: 6948 ft.    Interval Bottom: 7092 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/27/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2009
Treatment Summary:218,811 GALS FLUID & 154,440 LBS 30/50 SAND & 8,000 LBS SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6948 ft.# Of Holes:66
Interval Bottom:7092 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/02/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
