COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28158		Well Classification: OW Status: PA - 8/2/2023
Well Name/No:Sater #19-PU
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/2/2023
FacilityID:298014LocationID:302330
County:WELD #123Location:SESW 19 4N63W 6
Field:WATTENBERG - #90750Elevation:4710 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1218FSL  2537 FWLLat/Long: 40.293800 / -104.480670Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.293780 / -104.480640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

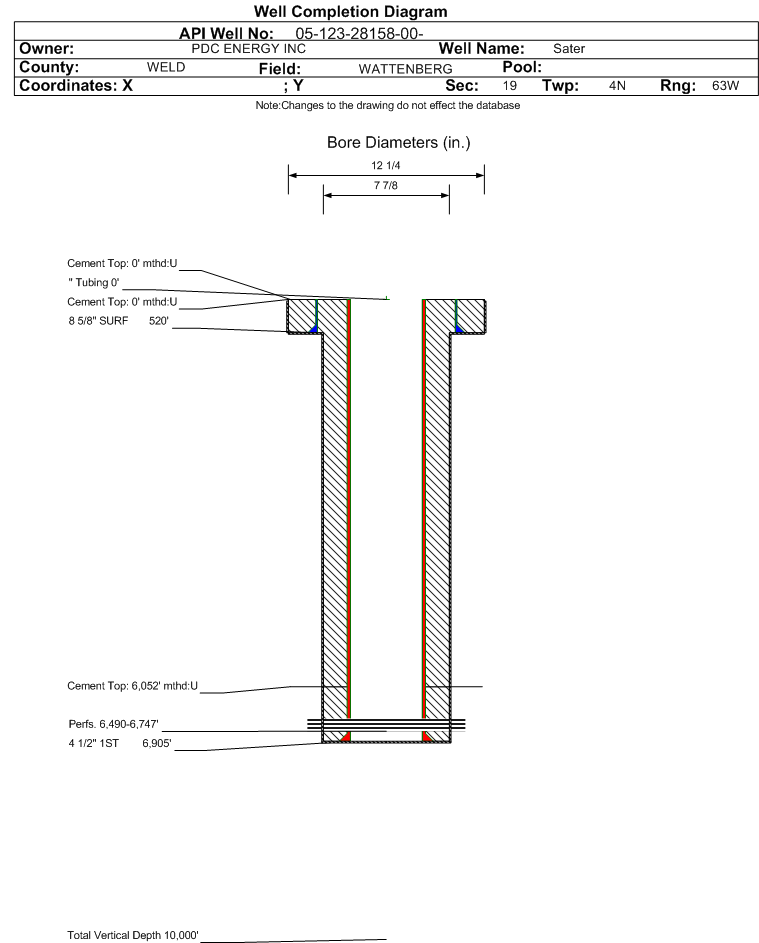

Wellbore #00             Wellbore Classification: OW             Status: AB - 8/2/2023             Measured TD: 6920 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 8/2/2023
Wellbore Permit
Permit #:Expiration Date:10/28/2010
Proposed Depth/Form:7700 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:12/1/2009
Spud Date:11/28/2009Spud Date Is:ACTUAL
Measured TD:6920 ft.Measured PB depth:6863 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, CNL.CDL, DUAL INDUCTION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 520 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 520 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6905 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 6052 ft., Bottom: 6905 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6052 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 537, Top: 0 ft., Bottom: 6052 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6482 ft.NN
FORT HAYS6715 ft.NN
CODELL6739 ft.NN

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 8/2/2023                  Interval Top: 6490 ft.    Interval Bottom: 6747 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/30/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/11/2009
Treatment Summary:NB-A 6490-6492 (4 HOLES), NB-B 6561-6567 (12 HOLES), CD 6741-6747 (12 HOLES). FRACD NB-CD USING 24 BLS 15% HCL, 953 BLS SLICKWTR PAD, 954BBLS VISTAR 20# PAD, 2915BBLS VISTAR 20# FLD SYS, 334340LBS 20/40 WHT SND & 16280 LBS SB EXCEL 20/40 RCP
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 53
BTU_GAS 1289
CALC_BBLS_H2O 12
CALC_BBLS_OIL 53
CALC_GOR 3057
CALC_MCF_GAS 162
CASING_PRESS 767
GRAVITY_OIL 49
MCF_GAS 162
Perforation Data:
Interval Top:6490 ft.# Of Holes:28
Interval Bottom:6747 ft.Hole Size:0.39 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/02/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveYNoticed Date
12/08/2022
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
