COGIS - WELL SCOUT CARD

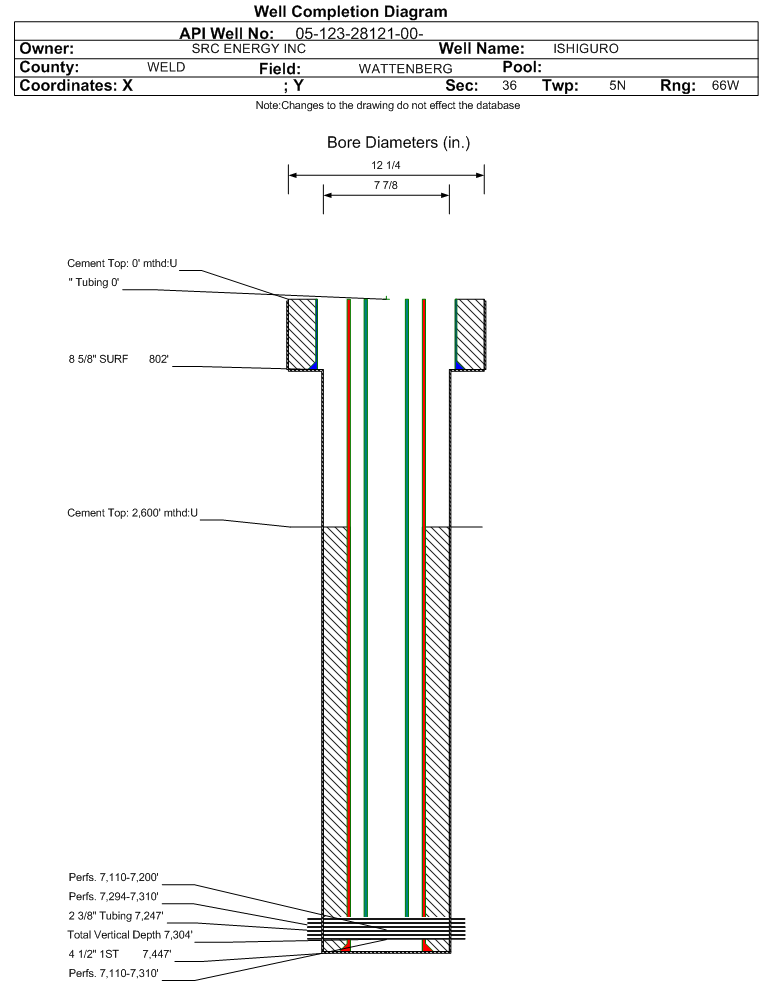

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28121		Well Classification: GW Status: PA - 12/20/2017
Well Name/No:ISHIGURO #21-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/20/2017
FacilityID:297884LocationID:332571
Municipality/County:EVANS / WELD #123Location:NWNE 36 5N66W 6
Field:WATTENBERG - #90750Elevation:4660 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1156FNL  1495 FELLat/Long: 40.359890 / -104.721090Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.359919 / -104.721086Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/20/2017             Measured TD: 7458 ft.    Vertical TD: 7304 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/20/2017
Wellbore PermitDIRECTIONAL
Permit #:20084209 Expiration Date:8/20/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1300 FNL  2650 FEL
Bottom Hole Location:Sec:36 Twp: 5N 66W Footage: 1300 FNL  2650 FEL
Proposed Depth/Form:7444 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:11/9/2008
Spud Date:11/4/2008Spud Date Is:ACTUAL
Measured TD:7458 ft.Measured PB depth:7417 ft.
True Vertical TD:7304 ft.True Vertical PB depth:7263 ft.
Top PZ Location:Sec:36 Twp: 5N 66WFootage: 1244 FNL  2618 FEL
Bottom Hole Location:Sec:36 Twp: 5N 66WFootage: 1244 FNL  2618 FEL
Log Types:CBL, P/E AILC-CNLD-ML
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 802 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 0 ft., Bottom: 802 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7447 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 655, Top: 2600 ft., Bottom: 7447 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3666 ft.3996 ft.NN
SUSSEX4208 ft.4296 ft.NN
SHANNON4406 ft.4562 ft.NN
NIOBRARA6974 ft.NN
FORT HAYS7270 ft.NN
CODELL7294 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/24/2009                 Interval Top: 7294 ft.    Interval Bottom: 7310 ft.

 Completed Information for Formation CODELL
1st Production Date:1/6/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/9/2008
Treatment Summary:167,774 GALS FLUID & 115,560# 30/50 SAND & 4,000# 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7294 ft.# Of Holes:64
Interval Bottom:7310 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/20/2017                Interval Top: 7110 ft.    Interval Bottom: 7310 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/6/2009Choke Size:0.344 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/9/2008
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7247 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/24/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1248
CALC_BBLS_H2O 0
CALC_BBLS_OIL 25
CALC_GOR 12680
CALC_MCF_GAS 317
CASING_PRESS 725
GRAVITY_OIL 52
TUBING_PRESS 557
Perforation Data:
Interval Top:7110 ft.# Of Holes:130
Interval Bottom:7310 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/24/2009                 Interval Top: 7110 ft.    Interval Bottom: 7200 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:1/16/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/24/2008
Treatment Summary:246,568 GALS FLUID & 200,320# 30/50 SAND & 4,000# 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7110 ft.# Of Holes:66
Interval Bottom:7200 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/20/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
