COGIS - WELL SCOUT CARD

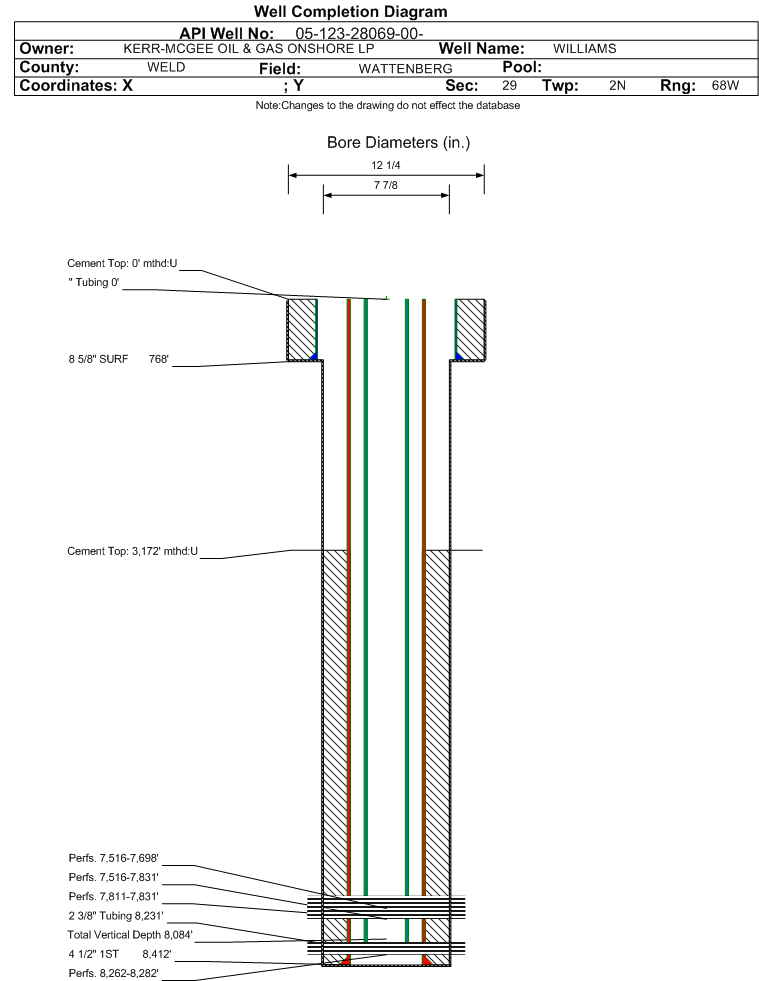

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28069		Well Classification: OW Status: PA - 10/12/2022
Well Name/No:WILLIAMS #13-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/12/2022
FacilityID:297784LocationID:336151
Municipality/County:FREDERICK / WELD #123Location:NENW 29 2N68W 6
Field:WATTENBERG - #90750Elevation:4910 ft.
Basin:DENVER (DJ) BASIN
Planned Location:701FNL  1943 FWLLat/Long: 40.114947 / -105.029836Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.114949 / -105.029840Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 10/12/2022             Measured TD: 8422 ft.    Vertical TD: 8084 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 10/12/2022
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:6/28/2012
Proposed Top PZ Location:Sec:20 Twp: 2N 68W Footage: 646 FSL  636 FWL
Bottom Hole Location:Sec:20 Twp: 2N 68W Footage: 646 FSL  636 FWL
Proposed Depth/Form:8422 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 786 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 310, Top: 14 ft., Bottom: 768 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8422 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 795, Top: 3172 ft., Bottom: 8422 ft.
Wellbore Completed
Completion Date:3/24/2009
Spud Date:3/19/2009Spud Date Is:ACTUAL
Measured TD:8422 ft.Measured PB depth:8379 ft.
True Vertical TD:8084 ft.True Vertical PB depth:8041 ft.
Top PZ Location:Sec:20 Twp: 2N 68WFootage: 646 FSL  636 FWL
Bottom Hole Location:Sec:20 Twp: 2N 68WFootage: 646 FSL  636 FWL
Log Types:CDL-GR-CAL-CNL-DIL-ML, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 768 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 768 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8412 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 795, Top: 3172 ft., Bottom: 8412 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3960 ft.NN
SUSSEX4440 ft.NN
SHANNON5045 ft.NN
NIOBRARA7516 ft.NN
FORT HAYS7793 ft.NN
CODELL7811 ft.NN
J SAND8250 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 10/12/2022                Interval Top: 8262 ft.    Interval Bottom: 8282 ft.

 Completed Information for Formation J SAND
1st Production Date:9/24/2010Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/19/2010
Treatment Summary:Frac JSND w/ 164,430 gal SW & 159,760# 40/70 sand & 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 62
BTU_GAS 1268
CALC_BBLS_OIL 62
CALC_GOR 1435
CALC_MCF_GAS 89
CASING_PRESS 898
GRAVITY_OIL 50
MCF_GAS 89
TUBING_PRESS 231
Perforation Data:
Interval Top:8262 ft.# Of Holes:60
Interval Bottom:8282 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 10/14/2010                Interval Top: 7811 ft.    Interval Bottom: 7831 ft.

 Completed Information for Formation CODELL
1st Production Date:8/18/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/22/2009
Treatment Summary:164,218 GALS FLUID & 115,240 LBS 40/70 SAND & 4,000 LBS 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7811 ft.# Of Holes:60
Interval Bottom:7831 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 10/12/2022                Interval Top: 7516 ft.    Interval Bottom: 7831 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/18/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/24/2010
Treatment Summary:NBRR Perf 7516-7698 Holes 66 Size 0.42 CODL Perf 7811-7831 Holes 60 Size 0.42 No additional treatment.
Formation Treatment
Treatment Date:3/24/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 2
BTU_GAS 1268
CALC_BBLS_H2O 0
CALC_BBLS_OIL 2
CALC_GOR 15500
CALC_MCF_GAS 31
CASING_PRESS 898
GRAVITY_OIL 50
MCF_GAS 31
TUBING_PRESS 231
Perforation Data:
Interval Top:7516 ft.# Of Holes:126
Interval Bottom:7831 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 10/14/2010                Interval Top: 7516 ft.    Interval Bottom: 7698 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/18/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/23/2009
Treatment Summary:1000 GALS ACID & 218,759 GALS FLUID & 153,420 LBS 40/70 SAND & 4,000 LBS 20/40 R/C SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7516 ft.# Of Holes:66
Interval Bottom:7698 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/12/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
