COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-28066		Well Classification: GW Status: PA - 8/7/2018
Well Name/No:WILLIAMS #35-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/7/2018
FacilityID:297780LocationID:336151
Municipality/County:FREDERICK / WELD #123Location:NENW 29 2N68W 6
Field:SPINDLE - #77900Elevation:4910 ft.
Basin:DENVER (DJ) BASIN
Planned Location:692FNL  1946 FWLLat/Long: 40.114970 / -105.029830Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.114975 / -105.029825Lat/Long Source: Field Measured

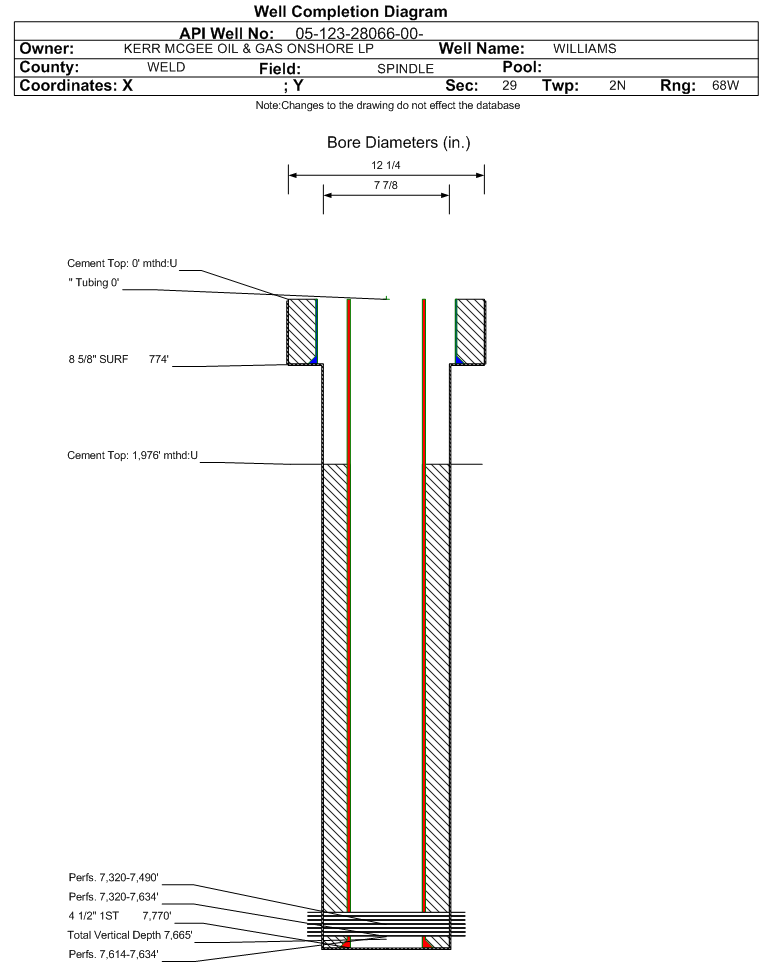

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/7/2018             Measured TD: 7780 ft.    Vertical TD: 7665 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/7/2018
Wellbore PermitDIRECTIONAL
Permit #:20084069 Expiration Date:8/13/2009
Proposed Top PZ Location:Sec:20 Twp: 2N 68W Footage: 54 FSL  1300 FWL
Bottom Hole Location:Sec:20 Twp: 2N 68W Footage: 54 FSL  1300 FWL
Proposed Depth/Form:7770 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:3/28/2009
Spud Date:3/24/2009Spud Date Is:ACTUAL
Measured TD:7780 ft.Measured PB depth:7736 ft.
True Vertical TD:7665 ft.True Vertical PB depth:7621 ft.
Top PZ Location:Sec:20 Twp: 2N 68WFootage: 54 FSL  1300 FWL
Bottom Hole Location:Sec:20 Twp: 2N 68WFootage: 54 FSL  1300 FWL
Log Types:CAL-CDL-CNL-ML-DIL-GR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 774 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 774 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7770 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 697, Top: 1976 ft., Bottom: 7770 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3851 ft.NN
SUSSEX4336 ft.NN
SHANNON4874 ft.NN
NIOBRARA7317 ft.NN
FORT HAYS7594 ft.NN
CODELL7614 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 9/25/2009                 Interval Top: 7614 ft.    Interval Bottom: 7634 ft.

 Completed Information for Formation CODELL
1st Production Date:8/19/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/9/2009
Treatment Summary:174,000 GALS FLUID & 117,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7614 ft.# Of Holes:60
Interval Bottom:7634 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/7/2018                  Interval Top: 7320 ft.    Interval Bottom: 7634 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/19/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/28/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BTU_GAS 1216
CALC_BBLS_H2O 0
CALC_BBLS_OIL 67
CALC_GOR 2960
CALC_MCF_GAS 198
CASING_PRESS 1200
GRAVITY_OIL 50
Perforation Data:
Interval Top:7320 ft.# Of Holes:128
Interval Bottom:7634 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 9/25/2009                 Interval Top: 7320 ft.    Interval Bottom: 7490 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/19/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/10/2009
Treatment Summary:247,000 GALS FLUID & 203,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7320 ft.# Of Holes:68
Interval Bottom:7490 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/07/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
