COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27364		Well Classification: OW Status: PA - 9/17/2024
Well Name/No:NYGREN #22-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/17/2024
FacilityID:287021LocationID:332793
County:WELD #123Location:SWNW 19 4N67W 6
Field:WATTENBERG - #90750Elevation:4956 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2114FNL  844 FWLLat/Long: 40.300660 / -104.938700Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.300656 / -104.938702Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 9/17/2024             Measured TD: 7587 ft.    Vertical TD: 7502 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 9/17/2024
Wellbore PermitDIRECTIONAL
Permit #:20090246 Expiration Date:2/23/2010
Proposed Top PZ Location:Sec:19 Twp: 4N 67W Footage: 2604 FNL  1321 FWL
Bottom Hole Location:Sec:19 Twp: 4N 67W Footage: 2604 FNL  1321 FWL
Proposed Depth/Form:7527 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:5/10/2009
Spud Date:5/7/2009Spud Date Is:ACTUAL
Measured TD:7587 ft.Measured PB depth:7538 ft.
True Vertical TD:7502 ft.True Vertical PB depth:7453 ft.
Top PZ Location:Sec:19 Twp: 4N 67WFootage: 2604 FNL  1321 FWL
Bottom Hole Location:Sec:19 Twp: 4N 67WFootage: 2604 FNL  1321 FWL
Log Types:CBL, AILC, ML, CNLD

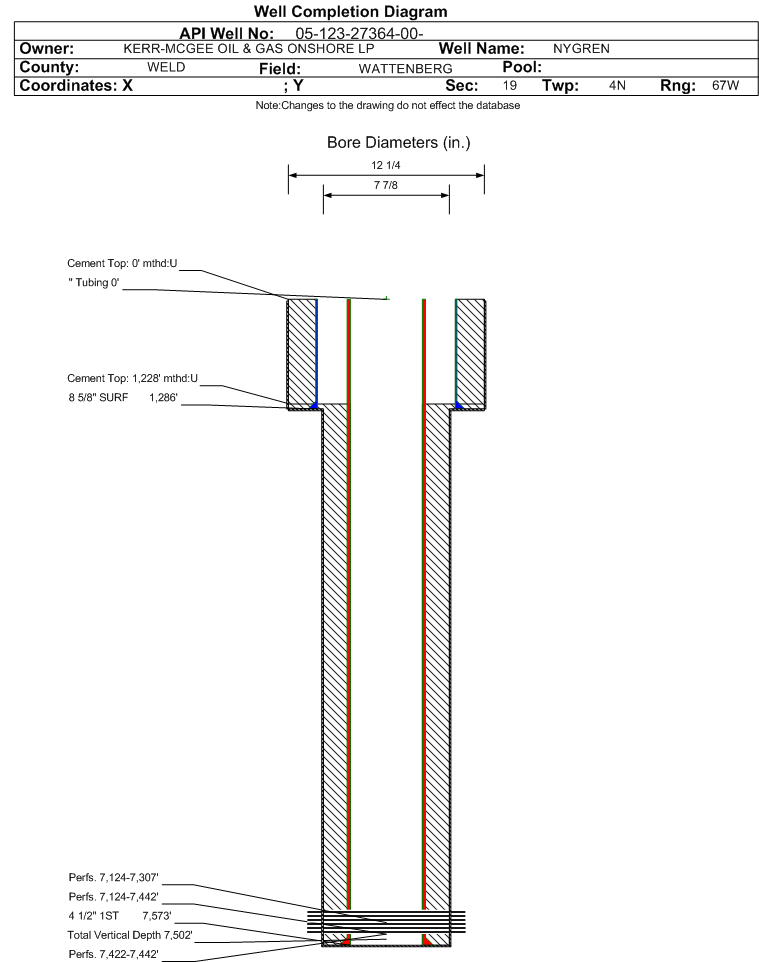

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1286 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 810, Top: 0 ft., Bottom: 1286 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7573 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 1286 ft., Bottom: 7573 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2407 ft.2658 ft.NN
PARKMAN3734 ft.3997 ft.NN
SUSSEX4231 ft.4392 ft.NN
SHANNON4744 ft.4769 ft.NN
NIOBRARA7103 ft.NN
FORT HAYS7400 ft.NN
CODELL7419 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/31/2009                 Interval Top: 7422 ft.    Interval Bottom: 7442 ft.

 Completed Information for Formation CODELL
1st Production Date:7/20/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2009
Treatment Summary:202,020 GALS FLUID & 150,880 LBS 40/70 SAND & 4,120 LBS 20/40 R/C SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7422 ft.# Of Holes:60
Interval Bottom:7442 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/17/2024                 Interval Top: 7124 ft.    Interval Bottom: 7442 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/20/2009Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/10/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/31/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1248
CALC_BBLS_H2O 0
CALC_BBLS_OIL 65
CALC_GOR 930
CALC_MCF_GAS 60
CASING_PRESS 150
GRAVITY_OIL 50
Perforation Data:
Interval Top:7124 ft.# Of Holes:120
Interval Bottom:7442 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/31/2009                 Interval Top: 7124 ft.    Interval Bottom: 7307 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/20/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/6/2009
Treatment Summary:1000 GALS ACID & 246,250 GALS FLUID & 201,260 LBS 40/70 SAND & 4,140 LBS 20/40 R/C SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7124 ft.# Of Holes:60
Interval Bottom:7307 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/17/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
