COGIS - WELL SCOUT CARD

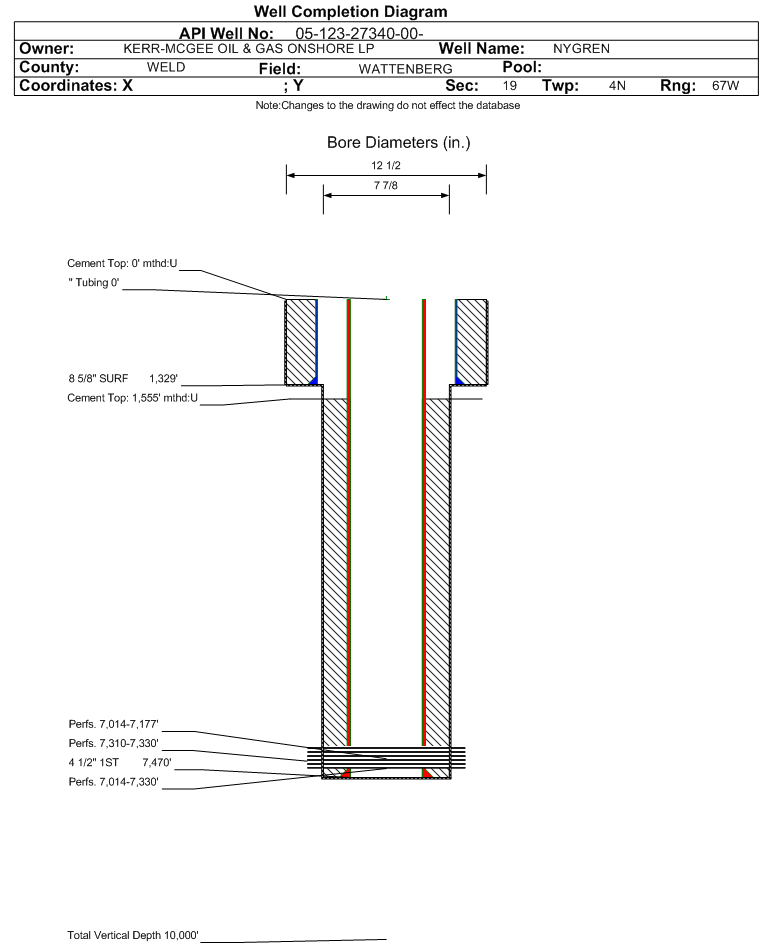

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27340		Well Classification: OW Status: PA - 9/17/2024
Well Name/No:NYGREN #5-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/17/2024
FacilityID:287000LocationID:332793
County:WELD #123Location:SWNW 19 4N67W 6
Field:WATTENBERG - #90750Elevation:4956 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2091FNL  827 FWLLat/Long: 40.300720 / -104.938770Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.300723 / -104.938766Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 9/17/2024             Measured TD: 7480 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 9/17/2024
Wellbore Permit
Permit #:20090247 Expiration Date:2/23/2010
Proposed Depth/Form:7465 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2NW4
Casing:String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 975 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 683, Top: 0 ft., Bottom: 975 ft.
Wellbore Completed
Completion Date:4/29/2009
Spud Date:4/27/2009Spud Date Is:ACTUAL
Measured TD:7480 ft.Measured PB depth:7441 ft.
True Vertical TD:True Vertical PB depth:
Log Types:PNN, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1329 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 0 ft., Bottom: 1329 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7470 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 1420 ft., Bottom: 7470 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2692 ft.NN
PARKMAN3617 ft.NN
SUSSEX4145 ft.NN
SHANNON4661 ft.NN
TEEPEE BUTTES6199 ft.NN
NIOBRARA6996 ft.NN
FORT HAYS7305 ft.NN
CODELL7326 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 9/3/2009                  Interval Top: 7310 ft.    Interval Bottom: 7330 ft.

 Completed Information for Formation CODELL
1st Production Date:7/28/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/25/2009
Treatment Summary:210,000 GALS FLUID & 150,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7310 ft.# Of Holes:60
Interval Bottom:7330 ft.Hole Size:0.4 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 9/17/2024                 Interval Top: 7014 ft.    Interval Bottom: 7330 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/28/2009Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/29/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/3/2009Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1246
CALC_BBLS_H2O 0
CALC_BBLS_OIL 23
CALC_GOR 1830
CALC_MCF_GAS 42
CASING_PRESS 1000
GRAVITY_OIL 50
Perforation Data:
Interval Top:7014 ft.# Of Holes:114
Interval Bottom:7330 ft.Hole Size:0.4 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 9/3/2009                  Interval Top: 7014 ft.    Interval Bottom: 7177 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/28/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/26/2009
Treatment Summary:500 GALS ACID & 250,000 GALS FLUID & 200,000 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7014 ft.# Of Holes:54
Interval Bottom:7177 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/17/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
