Wellbore #00 Wellbore Classification: OW Status: AB - 10/9/2024 Measured TD: 6982 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW AB - 10/9/2024 | | Wellbore Permit | | | Permit #: | 20083275 | Expiration Date: | 8/4/2009 | | Proposed Depth/Form: | 7000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2SE4 |
| | |

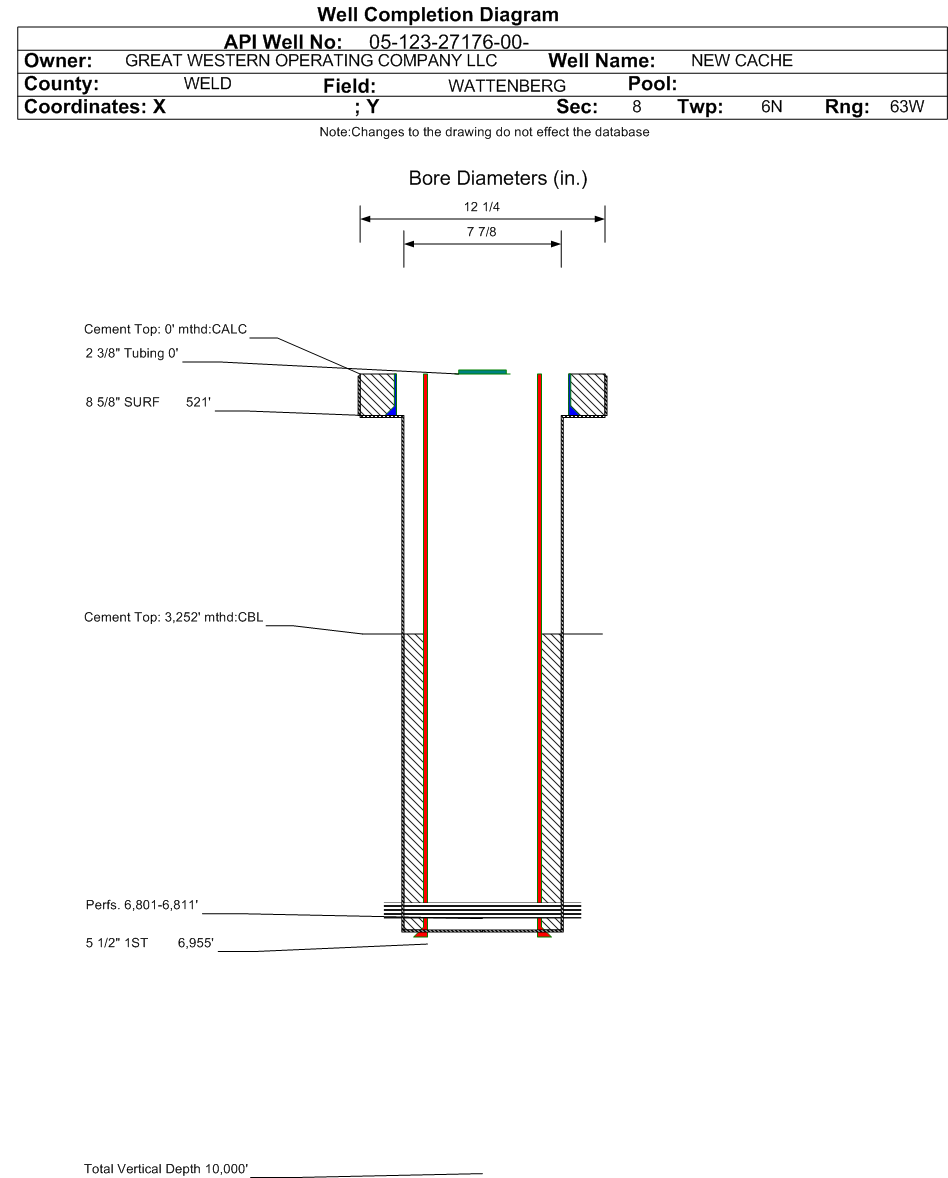

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 8/12/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 6982 ft. | Measured PB depth: | 6943 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMPENSATED DENSITY NEUTRON GAMMA RAY; DUAL INDUCTION LOG GAMMA RAY; CEMENT BOND-VD | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 521 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 521 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6955 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 550, Top: 3252 ft., Bottom: 6955 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2848 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 2192 ft., Bottom: 2848 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2802 ft. | | N | N | | PARKMAN | 3510 ft. | | N | N | | SUSSEX | 4280 ft. | | N | N | | SHANNON | 4924 ft. | | N | N | | NIOBRARA | 6612 ft. | | N | N | | FORT HAYS | 6759 ft. | | N | N | | CODELL | 6799 ft. | | N | N |
Formation CODL Formation Classification: OW Status: AB - 10/9/2024 Interval Top: 6801 ft. Interval Bottom: 6811 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/3/2008 | Choke Size: | 0.188 in. | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/26/2008 | | Treatment Summary: | FRAC CODELL WITH 4118 BBLS SLICKWATER, AND 115000# 30/50 SAND. SPEARHEAD 500 BBLS 7% KCL AHEAD OF FRAC. TREAT AT AN AVERAGE OF 5278# 60 BPM. MAX. PRESSURE 5900# MAX. RATE 61.1 BPM |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/3/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 54 | | BBLS_OIL | 102 | | BTU_GAS | 1242 | | CALC_GOR | 931 | | CASING_PRESS | 350 | | GRAVITY_OIL | 47 | | MCF_GAS | 95 |
| | Perforation Data: | | Interval Top: | 6801 ft. | # Of Holes: | 40 | | Interval Bottom: | 6811 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/09/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
