COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27142		Well Classification: OW Status: PA - 7/1/2019
Well Name/No:RADEMACHER #39-25
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/1/2019
FacilityID:297448LocationID:336065
Municipality/County:FIRESTONE / WELD #123Location:SWSE 25 3N68W 6
Field:WATTENBERG - #90750Elevation:4870 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1300FNL  1536 FELLat/Long: 40.193510 / -104.947270Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.193519 / -104.947289Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/1/2019             Measured TD: 7586 ft.    Vertical TD: 7388 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/1/2019
Wellbore PermitDIRECTIONAL
Permit #:20083144 Expiration Date:7/29/2009
Proposed Top PZ Location:Sec:25 Twp: 3N 68W Footage: 1288 FSL  240 FEL
Bottom Hole Location:Sec:25 Twp: 3N 68W Footage: 1288 FSL  240 FEL
Proposed Depth/Form:7572 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:8/11/2008Spud Date Is:ACTUAL
Measured TD:7586 ft.Measured PB depth:7548 ft.
True Vertical TD:7388 ft.True Vertical PB depth:7350 ft.
Top PZ Location:Sec:25 Twp: 3N 68WFootage: 1288 FSL  240 FEL
Bottom Hole Location:Sec:25 Twp: 3N 68WFootage: 1288 FSL  240 FEL
Log Types:CBL, P/E AILC/CNLD/ML
Log Types:

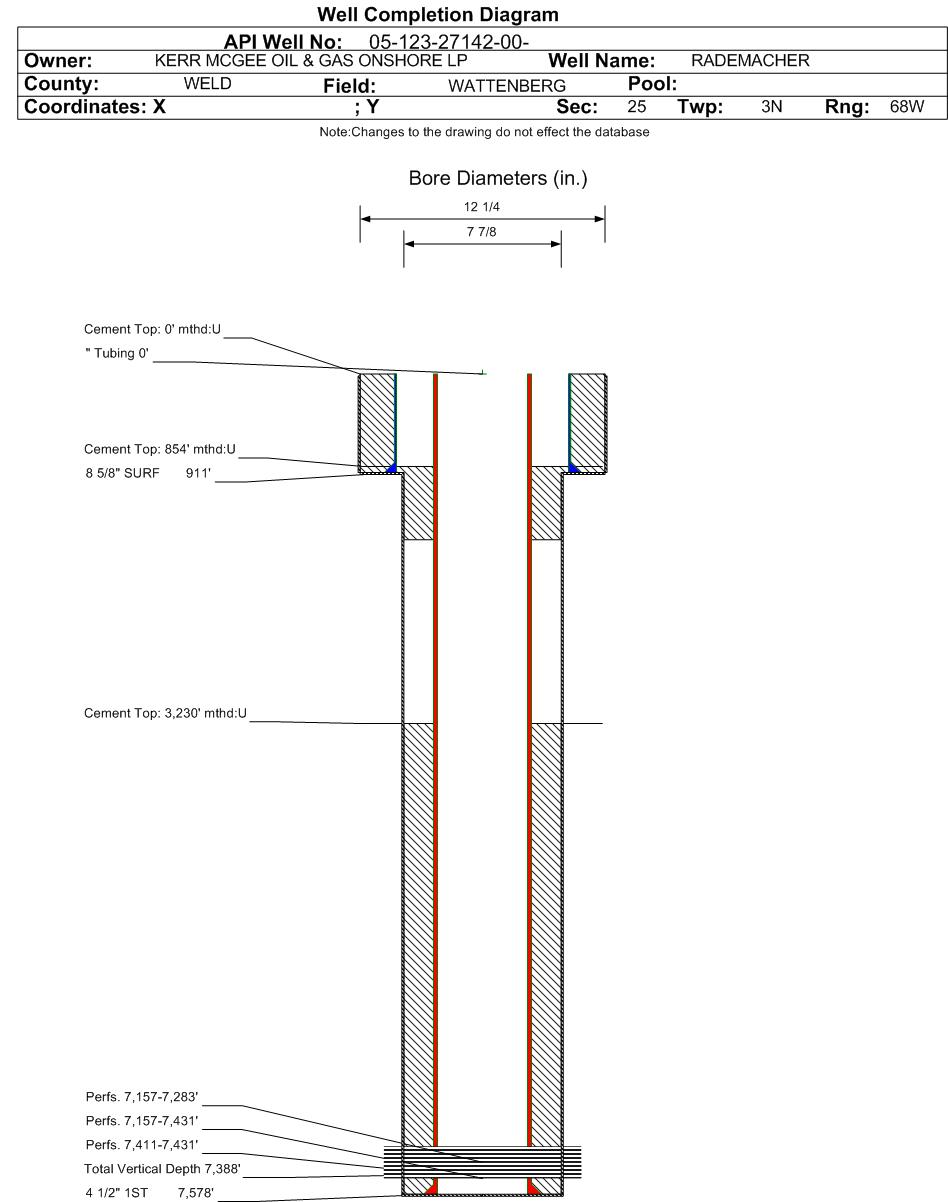

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 911 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 911 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7578 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 604, Top: 3230 ft., Bottom: 7578 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 130, Top: 854 ft., Bottom: 1532 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 852 ft., Depth: 1500 ft., Bottom: 1518 ft., Sacks: 130, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
PARKMAN3802 ft.4000 ft.NN
SUSSEX4320 ft.4430 ft.NN
SHANNON4822 ft.4856 ft.NN
NIOBRARA7140 ft.NN
FORT HAYS7390 ft.NN
CODELL7412 ft.7432 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/13/2008                Interval Top: 7411 ft.    Interval Bottom: 7431 ft.

 Completed Information for Formation CODELL
1st Production Date:10/16/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/4/2008
Treatment Summary:131528 GALS FLUID & 220840 LBS 30/50 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7411 ft.# Of Holes:60
Interval Bottom:7431 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/1/2019                  Interval Top: 7157 ft.    Interval Bottom: 7431 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/16/2008Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/16/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1153
CALC_BBLS_H2O 0
CALC_BBLS_OIL 68
CALC_GOR 1250
CALC_MCF_GAS 85
CASING_PRESS 1900
GRAVITY_OIL 51
Perforation Data:
Interval Top:7157 ft.# Of Holes:132
Interval Bottom:7431 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/13/2008                Interval Top: 7157 ft.    Interval Bottom: 7283 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/16/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/4/2008
Treatment Summary:245057 GALS FLUID & 200300 LBS 40/70 SAND & 4000 LBS 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7157 ft.# Of Holes:72
Interval Bottom:7283 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/01/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
