COGIS - WELL SCOUT CARD

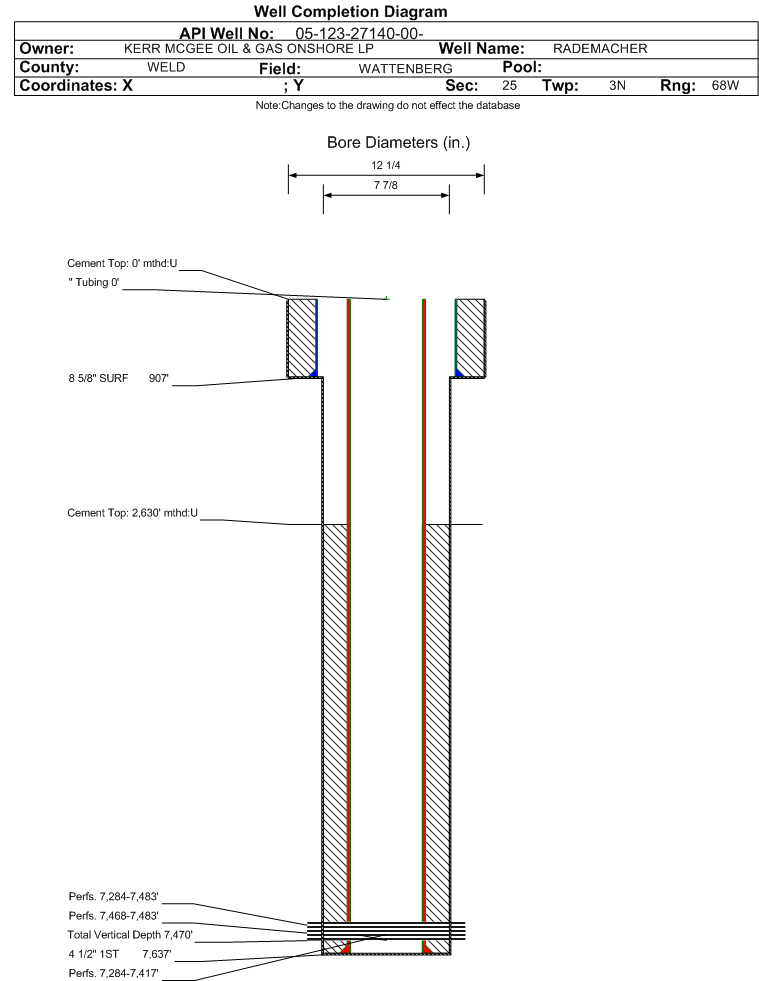

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27140		Well Classification: OW Status: PA - 4/7/2021
Well Name/No:RADEMACHER #37-25
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/7/2021
FacilityID:297451LocationID:336065
Municipality/County:FIRESTONE / WELD #123Location:SWSE 25 3N68W 6
Field:WATTENBERG - #90750Elevation:4870 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1287FSL  1528 FELLat/Long: 40.193470 / -104.947230Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.193497 / -104.947231Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/7/2021             Measured TD: 7647 ft.    Vertical TD: 7470 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/7/2021
Wellbore PermitDIRECTIONAL
Permit #:20083423 Expiration Date:7/29/2009
Proposed Top PZ Location:Sec:25 Twp: 3N 68W Footage: 31 FSL  1570 FEL
Bottom Hole Location:Sec:25 Twp: 3N 68W Footage: 31 FSL  1570 FEL
Proposed Depth/Form:7579 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:8/17/2008Spud Date Is:ACTUAL
Measured TD:7647 ft.Measured PB depth:7607 ft.
True Vertical TD:7470 ft.True Vertical PB depth:7430 ft.
Top PZ Location:Sec:25 Twp: 3N 68WFootage: 31 FSL  1570 FEL
Bottom Hole Location:Sec:25 Twp: 3N 68WFootage: 31 FSL  1570 FEL
Log Types:CBL, P/E AILC-CNLD-ML
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 907 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 907 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7637 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 677, Top: 2630 ft., Bottom: 7637 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1526 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 727 ft., Bottom: 1526 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3770 ft.NN
SUSSEX4248 ft.NN
SHANNON4792 ft.NN
NIOBRARA7265 ft.NN
FORT HAYS7450 ft.NN
CODELL7470 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/12/2008                Interval Top: 7468 ft.    Interval Bottom: 7483 ft.

 Completed Information for Formation CODELL
1st Production Date:10/16/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/17/2008
Treatment Summary:131746 GALS FLUID & 221360 LBS 20/40 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7468 ft.# Of Holes:60
Interval Bottom:7483 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/7/2021                  Interval Top: 7284 ft.    Interval Bottom: 7483 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/16/2008Choke Size:0.156 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1154
CALC_BBLS_H2O 0
CALC_BBLS_OIL 27
CALC_GOR 3000
CALC_MCF_GAS 81
CASING_PRESS 1350
GRAVITY_OIL 52
Perforation Data:
Interval Top:7284 ft.# Of Holes:132
Interval Bottom:7483 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/12/2008                Interval Top: 7284 ft.    Interval Bottom: 7417 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/16/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/17/2008
Treatment Summary:1000 GALS ACID & 65140 GALS FLUID & 103074 GALS GEL & 250540 LBS 20/40 SAND & 4000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7284 ft.# Of Holes:72
Interval Bottom:7417 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/07/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
