COGIS - WELL SCOUT CARD

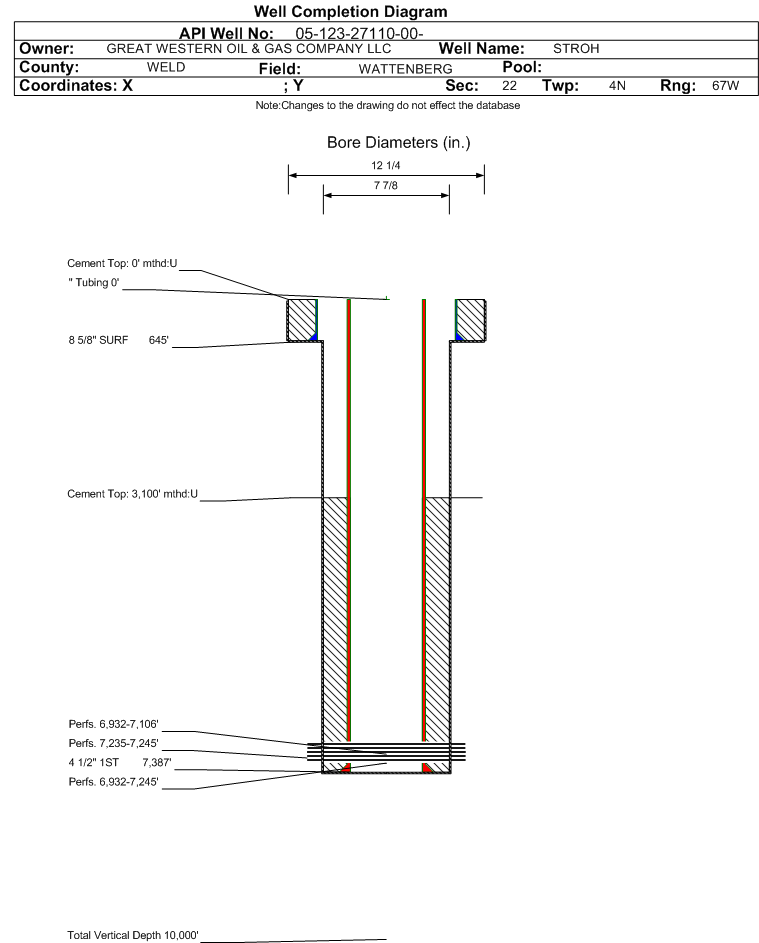

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27110		Well Classification: GW Status: PR - 2/1/2025
Well Name/No:STROH #CNW-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2025
FacilityID:297387LocationID:310849
County:WELD #123Location:SENW 22 4N67W 6
Field:WATTENBERG - #90750Elevation:4867 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1512FNL  1310 FWLLat/Long: 40.301130 / -104.881670Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.301140 / -104.881710Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2025             Measured TD: 7430 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2025
Wellbore Permit
Permit #:20083166 Expiration Date:7/24/2009
Proposed Depth/Form:7430 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW4
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:12/20/2008
Spud Date:12/12/2008Spud Date Is:ACTUAL
Measured TD:7430 ft.Measured PB depth:7365 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR/CBL/VDL/CCL, DIL/FDC/CNL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 645 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: 660 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7387 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 690, Top: 3100 ft., Bottom: 7387 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3600 ft.NN
SUSSEX4080 ft.NN
SHANNON4630 ft.4686 ft.NN
NIOBRARA6908 ft.7118 ft.NN
CODELL7235 ft.7256 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/19/2009                 Interval Top: 7235 ft.    Interval Bottom: 7245 ft.

 Completed Information for Formation CODELL
1st Production Date:3/15/2009Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/29/2008
Treatment Summary:FRAC'D W/109,620 GAL HYBRID FRAC FLUID, W/251,560#20/40 BLACK SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7235 ft.# Of Holes:40
Interval Bottom:7245 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  PR - 2/1/2025                  Interval Top: 6932 ft.    Interval Bottom: 7245 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/15/2009Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/20/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 123
BTU_GAS 1360
CALC_BBLS_H2O 6
CALC_BBLS_OIL 123
CALC_GOR 2293
CALC_MCF_GAS 282
CASING_PRESS 1400
GRAVITY_OIL 49
MCF_GAS 282
Perforation Data:
Interval Top:6932 ft.# Of Holes:112
Interval Bottom:7245 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/19/2009                 Interval Top: 6932 ft.    Interval Bottom: 7106 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/15/2009Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/29/2008
Treatment Summary:FRAC'D W/149,982 GAL HYBRID FRAC FLUID, W/238,480# BLACK SAND & 12,000# 20/40 RCS.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6932 ft.# Of Holes:72
Interval Bottom:7106 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)414
Total Gas Produced (MCF)2578
GOR6227
GOR DeterminationBOE
Average BOE per Day2.345
Average MCFE per Day13.594

 Federal Financial Assurance  i

 Tribal Well  i No
