COGIS - WELL SCOUT CARD

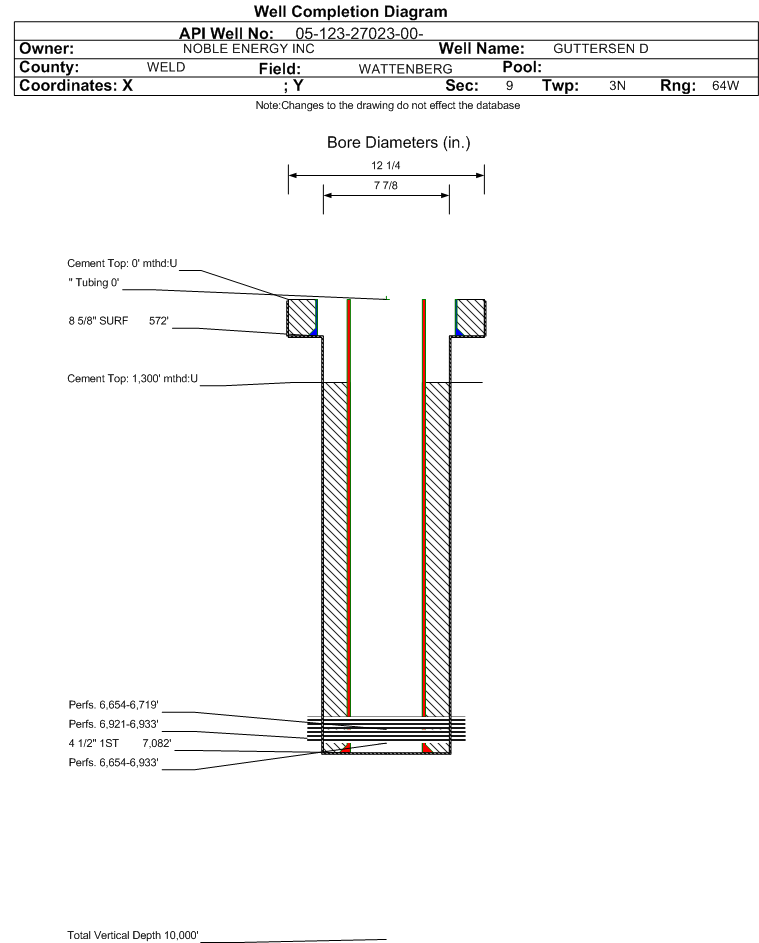

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-27023		Well Classification: OW Status: TA - 2/1/2022
Well Name/No:GUTTERSEN D #09-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:TAStatus Date2/1/2022
FacilityID:297217LocationID:310813
County:WELD #123Location:NWSE 9 3N64W 6
Field:WATTENBERG - #90750Elevation:4732 ft.
Planned Location:2630FSL  1315 FELLat/Long: 40.239908 / -104.551379Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.239926 / -104.551398Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: TA - 2/1/2022             Measured TD: 7095 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        TA - 2/1/2022
Wellbore Permit
Permit #:20083059 Expiration Date:7/16/2009
Proposed Depth/Form:7100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:8/24/2008
Spud Date:8/20/2008Spud Date Is:ACTUAL
Measured TD:7095 ft.Measured PB depth:6997 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR/CCL/CBL, CDL/CN/ML, DIL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 572 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 298, Top: 0 ft., Bottom: 572 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7082 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 1285 ft., Bottom: 7082 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3595 ft.NN
SUSSEX4254 ft.NN
SHANNON4791 ft.NN
TEEPEE BUTTES5910 ft.NN
NIOBRARA6631 ft.NN
FORT HAYS6899 ft.NN
CODELL6921 ft.NN

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/13/2020                Interval Top: 6921 ft.    Interval Bottom: 6933 ft.

 Completed Information for Formation CODELL
1st Production Date:12/1/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/21/2008
Treatment Summary:CODL FRAC'D W/ 141,918 GALS SILVERSTIM & SLICKWATER & 15% HCL; W/ 268,543# OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:6921 ft.# Of Holes:48
Interval Bottom:6933 ft.Hole Size:0.41 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  TA - 2/1/2022                  Interval Top: 6654 ft.    Interval Bottom: 6933 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/1/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/24/2008
Treatment Summary:COMMINGLE CODL & NBRR. CODL PRODUCING THROUGH CAST IRON FLOW PLUG.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 30
BTU_GAS 1256
CALC_BBLS_H2O 9
CALC_BBLS_OIL 30
CALC_GOR 6800
CALC_MCF_GAS 204
CASING_PRESS 460
GRAVITY_OIL 54
MCF_GAS 204
Perforation Data:
Interval Top:6654 ft.# Of Holes:112
Interval Bottom:6933 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/13/2020                Interval Top: 6654 ft.    Interval Bottom: 6719 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/1/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/21/2008
Treatment Summary:NBRR FRAC'D W/ 185,220 GALS SLICKWATER & SILVERSTIM W/ 250,720# OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6654 ft.# Of Holes:64
Interval Bottom:6719 ft.Hole Size:0.73 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
11/30/2020
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
