COGIS - WELL SCOUT CARD

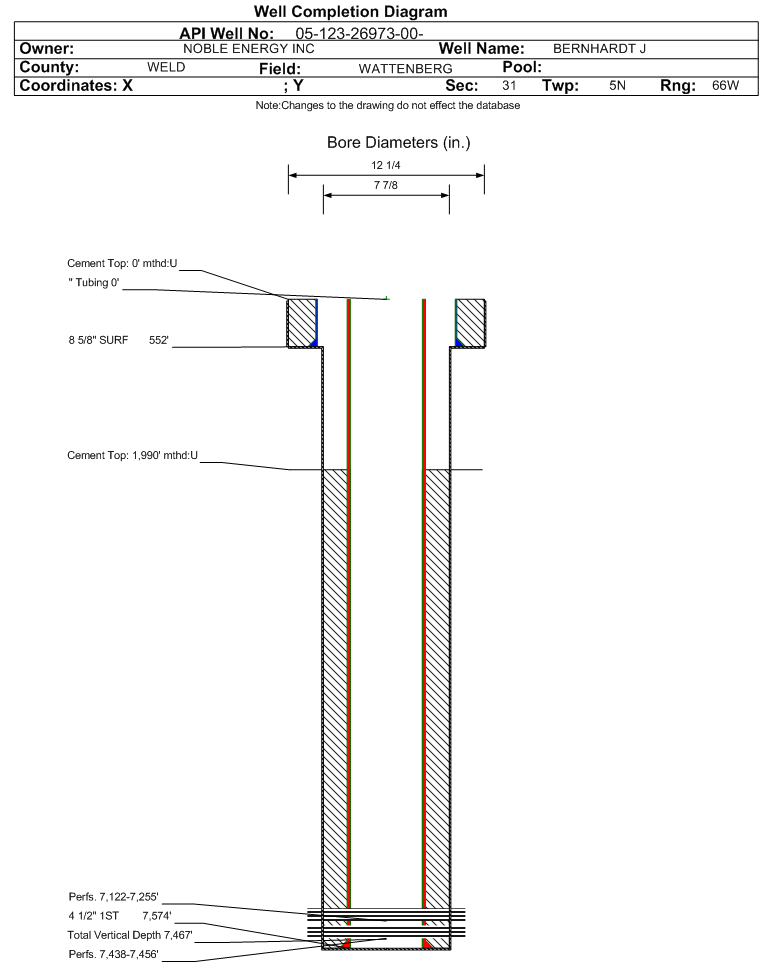

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26973		Well Classification: OW Status: PA - 3/12/2024
Well Name/No:BERNHARDT J #31-33D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/12/2024
FacilityID:297024LocationID:332666
County:WELD #123Location:SWSW 31 5N66W 6
Field:WATTENBERG - #90750Elevation:4840 ft.
Basin:DENVER (DJ) BASIN
Planned Location:519FSL  815 FWLLat/Long: 40.350230 / -104.829060Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.350238 / -104.829068Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 3/12/2024             Measured TD: 7588 ft.    Vertical TD: 7467 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 3/12/2024
Wellbore PermitDIRECTIONAL
Permit #:20082755 Expiration Date:7/8/2009
Proposed Top PZ Location:Sec:31 Twp: 5N 66W Footage: 1308 FSL  53 FWL
Bottom Hole Location:Sec:31 Twp: 5N 66W Footage: 1308 FSL  53 FWL
Proposed Depth/Form:7588 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:11/8/2008
Spud Date:11/6/2008Spud Date Is:ACTUAL
Measured TD:7588 ft.Measured PB depth:7549 ft.
True Vertical TD:7467 ft.True Vertical PB depth:7428 ft.
Top PZ Location:Sec:31 Twp: 5N 66WFootage: 1308 FSL  53 FWL
Bottom Hole Location:Sec:31 Twp: 5N 66WFootage: 1308 FSL  53 FWL
Log Types:CBL/GR/CCL, CDL/CN/ML, DIL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 552 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 303, Top: 0 ft., Bottom: 552 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7574 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 1780 ft., Bottom: 7574 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7100 ft.NN
FORT HAYS7417 ft.NN
CODELL7437 ft.NN
GREENHORN7525 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/19/2008                Interval Top: 7438 ft.    Interval Bottom: 7456 ft.

 Completed Information for Formation CODELL
1st Production Date:12/19/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/12/2008
Treatment Summary:CODELL FRAC'D W/ 1008 GALS 15% HCI ACID, 3990 GALS SLICKWATER, 141330 GALS SILVERSTIM AND 283101 OF OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7438 ft.# Of Holes:72
Interval Bottom:7456 ft.Hole Size:0.41 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/19/2008                Interval Top: 7122 ft.    Interval Bottom: 7255 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/19/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/12/2008
Treatment Summary:NIOBRARA FRAC'D W/ 70056 GALS SLICK WATER, 108444 GALS SILVERSTIM AND 234835# OF OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 30
BTU_GAS 1263
CALC_BBLS_H2O 8
CALC_BBLS_OIL 30
CALC_GOR 6100
CALC_MCF_GAS 183
CASING_PRESS 340
GRAVITY_OIL 54
MCF_GAS 183
TUBING_PRESS 0
Perforation Data:
Interval Top:7122 ft.# Of Holes:64
Interval Bottom:7255 ft.Hole Size:0.73 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/12/2024

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/19/2008Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/12/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
