Wellbore #00 Wellbore Classification: OW Status: PA - 12/13/2018 Measured TD: 8135 ft. Vertical TD: 8044 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 12/13/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20090572 | Expiration Date: | 3/9/2010 | | Proposed Top PZ Location: | Sec:17 Twp: 1N 68W | Footage: 563 FSL 2118 FEL | | Bottom Hole Location: | Sec:17 Twp: 1N 68W | Footage: 561 FSL 2123 FEL | | Proposed Depth/Form: | 8167 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-37 , Unit Acreage: 80, Drill Unit: S17S2 |
| | |

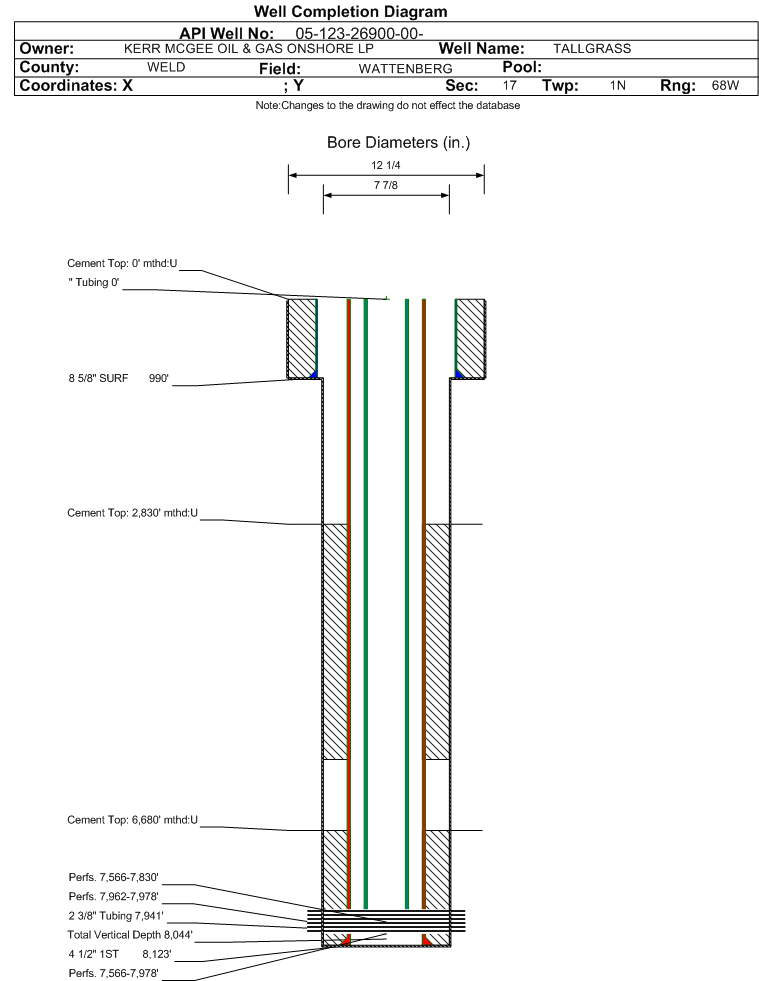

| Wellbore Completed | | Completion Date: | 5/24/2009 | | Spud Date: | 5/19/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 8135 ft. | Measured PB depth: | 8087 ft. | | True Vertical TD: | 8044 ft. | True Vertical PB depth: | 7996 ft. | | Top PZ Location: | Sec:17 Twp: 1N 68W | Footage: 563 FSL 2118 FEL | | Bottom Hole Location: | Sec:17 Twp: 1N 68W | Footage: 561 FSL 2123 FEL | | Log Types: | CBL, NO OH LOGS - GAS KICK @ TD | | Log Types: | CBL, PNL, NO OH LOGS-GAS KICK@TD | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 990 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 0 ft., Bottom: 990 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8123 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 6680 ft., Bottom: 8123 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5784 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: 2830 ft., Bottom: 5788 ft., Determination Method: CBL | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5782 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 330, Top: 2734 ft., Bottom: 5786 ft., Determination Method: CBL | | Additional Cement: | String Type: SURF , Top: 2830 ft., Depth: 5784 ft., Bottom: 5784 ft., Sacks: 380, Method: DV TOOL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4231 ft. | | | | | SUSSEX | 4716 ft. | | | | | SHANNON | 5321 ft. | | | | | NIOBRARA | 7579 ft. | | | | | FORT HAYS | 7950 ft. | | | | | CODELL | 7973 ft. | | | |
Formation CODL Formation Classification: OW Status: CM - 9/15/2010 Interval Top: 7962 ft. Interval Bottom: 7978 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 8/26/2009 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/16/2009 | | Treatment Summary: | FRAC CODL W/204,777 GAL SW & 151,900# 40/70 SAND & 4,000# 20/40 SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7962 ft. | # Of Holes: | 64 | | Interval Bottom: | 7978 ft. | Hole Size: | 0.38 in. |
|
Formation NB-CD Formation Classification: OW Status: AB - 12/13/2018 Interval Top: 7566 ft. Interval Bottom: 7978 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/26/2009 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/19/2010 | | Treatment Summary: | NBRR PERF 7566-7830 HOLES 66 SIZE 0.42 CODL PERF 7960-7978 HOLES 64 SIZE 0.38 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7941 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/19/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_OIL | 23 | | BTU_GAS | 1305 | | CALC_BBLS_OIL | 23 | | CALC_GOR | 6261 | | CALC_MCF_GAS | 144 | | CASING_PRESS | 519 | | GRAVITY_OIL | 49 | | MCF_GAS | 144 | | TUBING_PRESS | 369 |
| | Perforation Data: | | Interval Top: | 7566 ft. | # Of Holes: | 130 | | Interval Bottom: | 7978 ft. | Hole Size: | 0.38 in. |
|
Formation NBRR Formation Classification: OW Status: CM - 9/15/2010 Interval Top: 7566 ft. Interval Bottom: 7830 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 8/26/2009 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/16/2009 | | Treatment Summary: | FRAC NBRR W/219,505 GAL SW & 153,120# 40/70 SAND & 4,00# 20/40 SB EXCEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 7566 ft. | # Of Holes: | 66 | | Interval Bottom: | 7830 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 12/13/2018 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
