COGIS - WELL SCOUT CARD

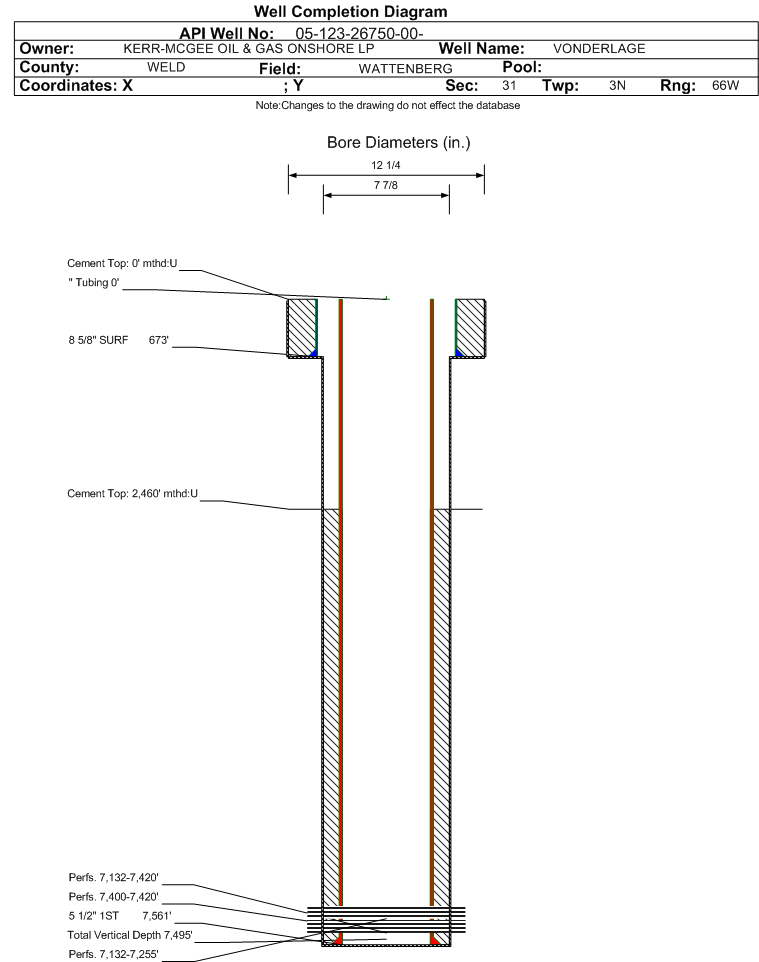

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26750		Well Classification: OW Status: PA - 5/7/2020
Well Name/No:VONDERLAGE #39-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/7/2020
FacilityID:296336LocationID:336506
County:WELD #123Location:SWSW 31 3N66W 6
Field:WATTENBERG - #90750Elevation:4822 ft.
Basin:DENVER (DJ) BASIN
Planned Location:505FSL  475 FWLLat/Long: 40.175380 / -104.827800Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.175391 / -104.827814Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 5/7/2020             Measured TD: 7577 ft.    Vertical TD: 7495 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 5/7/2020
Wellbore PermitDIRECTIONAL
Permit #:20081850 Expiration Date:6/4/2009
Proposed Top PZ Location:Sec: Twp: Footage: 1100 FSL  75 FEL
Bottom Hole Location:Sec:36 Twp: 3N 67W Footage: 1100 FSL  75 FEL
Proposed Depth/Form:7510 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: GWA
Wellbore Completed
Completion Date:N/A
Spud Date:7/1/2008Spud Date Is:ACTUAL
Measured TD:7577 ft.Measured PB depth:7535 ft.
True Vertical TD:7495 ft.True Vertical PB depth:7453 ft.
Top PZ Location:Sec:36 Twp: 3 67WFootage: 1126 FSL  105 FEL
Bottom Hole Location:Sec:36 Twp: 3 67WFootage: 1126 FSL  105 FEL
Log Types:SBL, CDL/CNL/ML, DIL/GL/GR
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 673 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 315, Top: 0 ft., Bottom: 673 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7561 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 530, Top: 2460 ft., Bottom: 7561 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2410 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 1015 ft., Bottom: 2410 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3926 ft.4165 ft.NN
SUSSEX4447 ft.4645 ft.NN
SHANNON4864 ft.4934 ft.NN
NIOBRARA7127 ft.NN
FORT HAYS7326 ft.NN
CODELL7398 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/11/2008                Interval Top: 7400 ft.    Interval Bottom: 7420 ft.

 Completed Information for Formation CODELL
1st Production Date:9/18/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/2/2008
Treatment Summary:156,147 GALS FLUID & 116,180 LBS 40/70 SAND & 4000 LBS OF 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7400 ft.# Of Holes:80
Interval Bottom:7420 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 5/7/2020                  Interval Top: 7132 ft.    Interval Bottom: 7420 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/18/2008Choke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/5/2008
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/11/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1233
CALC_BBLS_H2O 0
CALC_BBLS_OIL 22
CALC_GOR 18273
CALC_MCF_GAS 402
CASING_PRESS 380
GRAVITY_OIL 52
Perforation Data:
Interval Top:7132 ft.# Of Holes:180
Interval Bottom:7420 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 10/11/2008                Interval Top: 7132 ft.    Interval Bottom: 7255 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:9/18/2008Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/2/2008
Treatment Summary:1000 GALS ACID & 242,065 GALS FLUID & 200,180 LBS 40/70 SAND & 4,000 LBS 20/40 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7132 ft.# Of Holes:100
Interval Bottom:7255 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/07/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
