COGIS - WELL SCOUT CARD

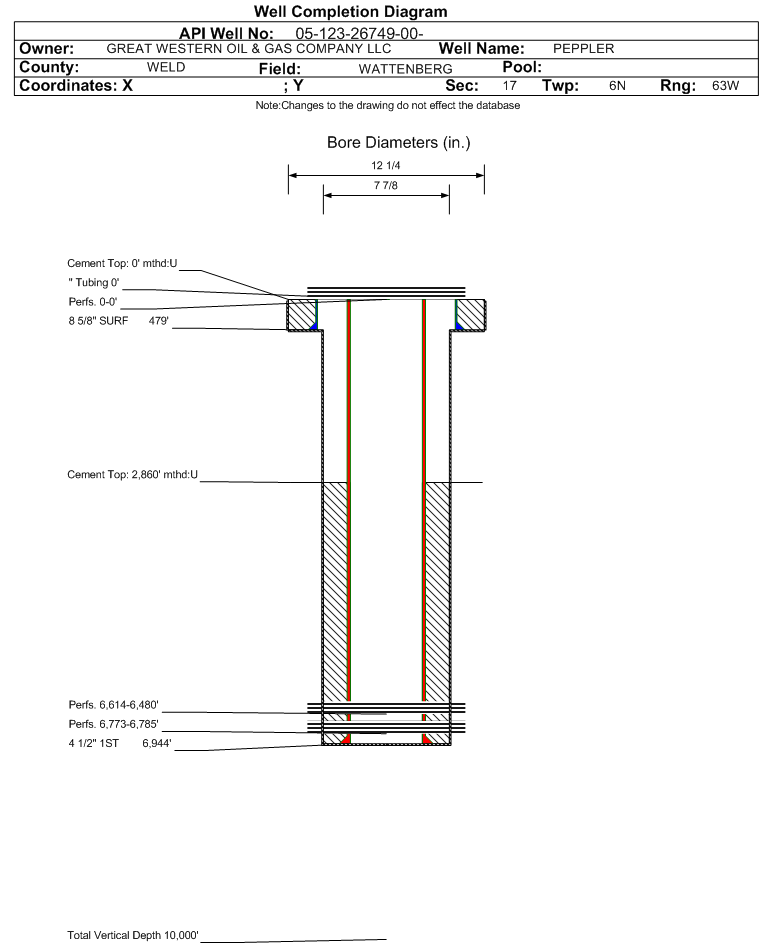

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-26749		Well Classification: GW Status: PA - 7/13/2024
Well Name/No:PEPPLER #17-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/13/2024
FacilityID:296335LocationID:310651
County:WELD #123Location:SWNW 17 6N63W 6
Field:WATTENBERG - #90750Elevation:4662 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1899FNL  745 FWLLat/Long: 40.488600 / -104.467630Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.488580 / -104.467670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 7/13/2024             Measured TD: 6980 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 7/13/2024
Wellbore Permit
Permit #:20081755 Expiration Date:6/4/2009
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: S2NW4
Wellbore Completed
Completion Date:11/16/2008
Spud Date:11/11/2008Spud Date Is:ACTUAL
Measured TD:6980 ft.Measured PB depth:6929 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY NEUTRON GAMMA RAY; DUAL INDUCTION LOG GAMMA RAY; CEMENT BOND- VD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 479 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 479 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6944 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 2860 ft., Bottom: 6944 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2786 ft.NN
PARKMAN3538 ft.NN
SUSSEX4254 ft.NN
SHANNON4893 ft.NN
NIOBRARA6478 ft.NN
FORT HAYS6737 ft.NN
CODELL6773 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/10/2008                Interval Top: 6773 ft.    Interval Bottom: 6785 ft.

 Completed Information for Formation CODELL
1st Production Date:11/28/2008Choke Size:0.219 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2008
Treatment Summary:FRAC CODELL WITH 4244 BBLS SLICKWATER AND 115000 30/50 SAND. SPEARHEAD 500 BBLS 7% KCL AHEAD OF FRAC. TREAT AT AN AVERAGE OF 4944 PSI 60.3BPM. MAX PRESSURE 5588 PSI, MAX RATE 60.5BPM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/10/2008Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 60
BTU_GAS 1242
CALC_GOR 1500
CASING_PRESS 350
GRAVITY_OIL 47
MCF_GAS 90
Perforation Data:
Interval Top:6773 ft.# Of Holes:48
Interval Bottom:6785 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 1/27/2010                 Interval Top: 6480 ft.    Interval Bottom: 6614 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/15/2009Choke Size:0.281 in.
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/14/2009
Treatment Summary:FRAC NIOBRARA WITH 4120 BBLS DYNAFLOW 2 WR FLUID, 238,000# 30/50 SAND, AND 12,000# 20/40 RESIN COATED SAND. SPEARHEAD 23.8 BBLS 15% ACID AHEAD OF FRAC AND 500 BBLS 7% KCL IN PRE-PAD. TREAT AT AN AVERAGE OF 4179 PSI 51.1 BPM. MAX. PRESSURE CONT. NEXT PAGE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/27/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 25
BTU_GAS 1242
CALC_GOR 2000
CASING_PRESS 225
GRAVITY_OIL 47
MCF_GAS 50
Perforation Data:
Interval Top:6480 ft.# Of Holes:248
Interval Bottom:6614 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/13/2024

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/10/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/10/2010
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/23/2010Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 30
BTU_GAS 1242
CALC_GOR 2167
CASING_PRESS 750
GRAVITY_OIL 47
MCF_GAS 65
TUBING_PRESS 675
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/13/2024
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/14/2024
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
